4-006-10-4388 4006104388 Homag Guide Carriage Bosch Rexroth Linear Guide Carriage R044229401

4-006-10-4388 4006104388 Homag Guide Carriage Bosch Rexroth Linear Guide Carriage R044229401

• 4-006-10-4388 Block
• 4006104388 Homag Guide Carriage
• Bosch Rexroth Linear Guide Carriage R044229401
• GUIDE CARRIAGE SIZE 12 R0442-294-01
• R044229401 Bosch Rexroth Runner Block Linear bearing
• Miniature runner block resist NRII MWA-012-SNS-C0-N-3
• Homag linear block
• R044229401 Bosch-Rexroth
INQUIRY

4-006-10-4388 4006104388 Homag Guide Carriage Bosch Rexroth Linear Guide Carriage R044229401

This Bosch Rexroth ball rail runner block R044229401 is a Miniature ball runner block, SNS, size 12, Resist NRII, accuracy standard, preload-free.It used for Homag, part number is 4-006-10-4388 or 4006104388.

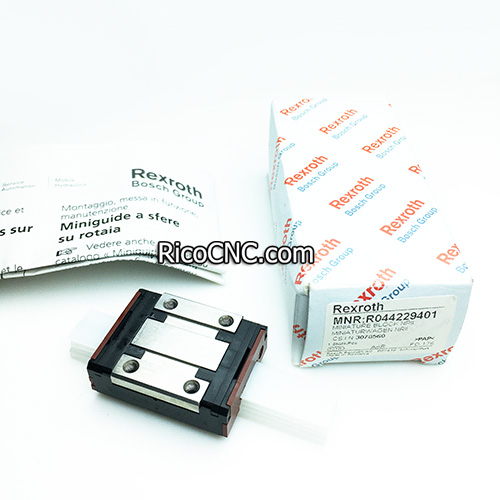

Bosch Rexroth Linear Guide Carriage R044229401.jpg

Linear bearing R0442-294-01 Features:

The miniature version of the ball runner block is characterized by the following product features:Size 12Format SNS: Width = slimline, length = normal, height = standardRunner block body made of corrosion-inert steelPreload class C0: Preload-freeAccuracy class N: StandardWithout ball chainWith initial lubrication and without preservationRoller bearing grease Dynalub 520Without attachment element, left (front reference edge)Without attachment element, right (front reference edge)With relubrication openingsRunner block body in standard versionOverall length of the runner block = 34.8 mmInterchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

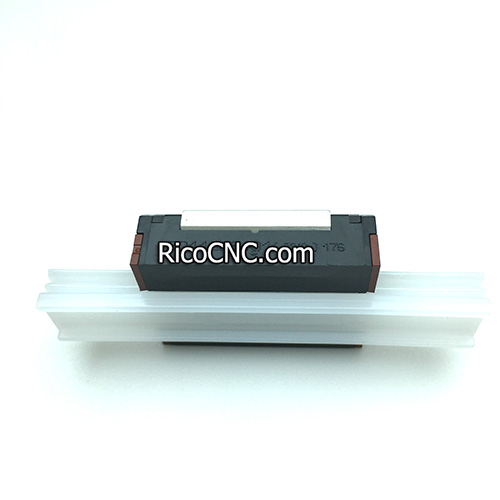

4006104388 Homag Guide Carriage.jpg

• Accuracy classes P, H and N

• Relubrication hole available

• Smooth, quiet running thanks to optimally designed ball return and guideway

• Ball retention for easy replacement

GUIDE CARRIAGE SIZE 12 R0442-294-01.jpg

Bosch Rexroth Linear Guide Carriage R044229401 Specification:

Runner block or guide rail	Runner block
Linear guide type	Miniature ball rail system
Nominal size	12
Format	SNS - slimline, normal, standard height
Ball chain	Without ball chain (standard)
Material (profiled rail systems)	Corrosion resistant steel
Accuracy class	N - Normal
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	27
Length of runner block [mm]	34.8
Height of runner block [mm]	10
Height of runner block with guide rail [mm]	13
Lubrication	With initial lubrication and without preservation
Dynamic load capacity C [N]	2310
Footnote dynamic load capacity C	Values calculated acc. to DIN 636, part 2
Dynamic torsional moment load capacity Mt [Nm]	13.7
Dynamic torsional moment load capacity Mt footnote	Calculated values (derived from C, C<sub>0</sub>)
Dynamic longitudinal moment load capacity ML [Nm]	7.9
Dynamic longitudinal moment load capacity ML footnote	Calculated values (derived from C, C<sub>0</sub>)
Static longitudinal moment load capacity ML0 [Nm]	11.8
Static torsional moment load capacity Mt0 [Nm]	20.6
Max. acceleration amax [m/s²]	250
Footnote amax	Only with pre-tensioned systems. For non-pre-tensioned systems: a<sub>max</sub> = 50 m/s<sup>2</sup>
Maximum permissible linear speed vmax [m/s]	3
Footnote maximum permissible speed vmax	Speeds up to 5 m/s possible. The service life is limited by the heightened wear of the plastic parts.
Seal	Low-friction seal (mini)
Static load rating C0 [N]	3470
Footnote static load capacity C0	Values calculated acc. to DIN 636, part 2
Permissible ambient temperature	-10 °C ... +80 °C
Footnote permissible ambient temperature (min ... max)	Brief peaks up to 100°C are permissible.
Static longitudinal moment load capacity ML0 footnote	Calculated values (derived from C, C<sub>0</sub>)
Permissible ambient temperature (max) [°C]	80
Productgroup ID	511D60000
Permissible ambient temperature (min) [°C]	-10
Static torsional moment load capacity Mt0 footnote	Calculated values (derived from C, C<sub>0</sub>)
Weight [kg]	0.0463
Size A (profiled rail systems) [mm]	27
Size A2 (profiled rail systems) [mm]	12
Size A3 (profiled rail systems) [mm]	7.5
Size B (profiled rail systems) [mm]	34.8
Size B with tolerance (profiled rail systems)	34,8 mm
Size B1 (profiled rail systems) [mm]	21.6
Size B1 (linear bushing) [mm]	21.6
Size E1 (profiled rail systems) [mm]	20
Size E2 (profiled rail systems) [mm]	15
Size H (profiled rail system) [mm]	13
Size H1 (profiled rail systems)	10
Size N3 (profiled rail systems) [mm]	3.5
Size S2 (profiled rail systems)	M3
Size T (profiled rail systems) [mm]	25
Size T1 min (profiled rail systems) [mm]	6
Size V1 [mm]	3.3

Miniature runner block resist NRII MWA-012-SNS-C0-N-3.jpg

There are also other Bosch Rexroth linear block here:

R162282320, R162432320, R165372320, R162221320, R162121420, R165172320, R165322420, R169421410, R169329310, R162471420, R166671420, R162381320, R165181320, R165121420, R162171420, etc.

R044229401 Bosch Rexroth Runner Block Linear bearing.jpg

RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.

Homag linear block.jpg
