THK HSR25R Ball Profile 4-way Equal Load Type Standard Linear Guide Block

• THK HSR25R
• THK Linear Bearing Block
• THK Linear Motion System HSR series
• Linear Motion HSR25R
• Caged Ball LM Guide
• Linear Guide Standard Ball Profile Rail Series HSR25R
• 25 mm Rail ball bearing
INQUIRY

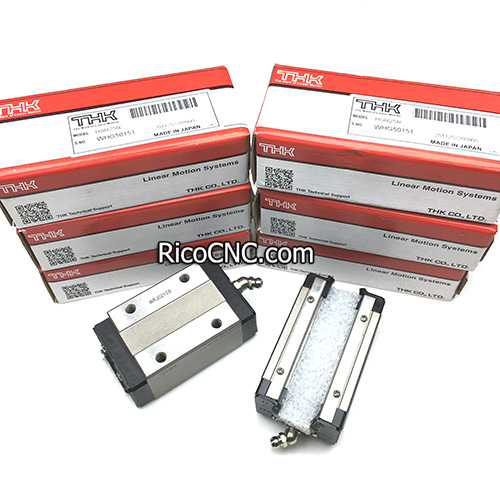

THK Linear Motion System HSR series.jpg

THK HSR25R Ball Profile 4-way Equal Load Type Standard Linear Guide Block

This LM block HSR25R is a caged roller 4-way equal load type block with 25mm rail ball bearing.Having a smaller LM block width (W) and tapped holes, this model is optimal for compact design.

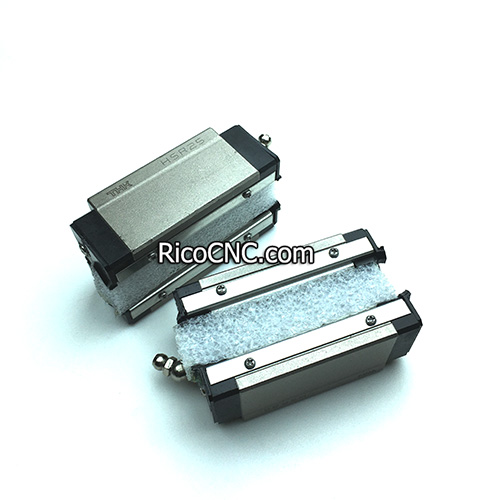

Linear Motion HSR25R.jpg

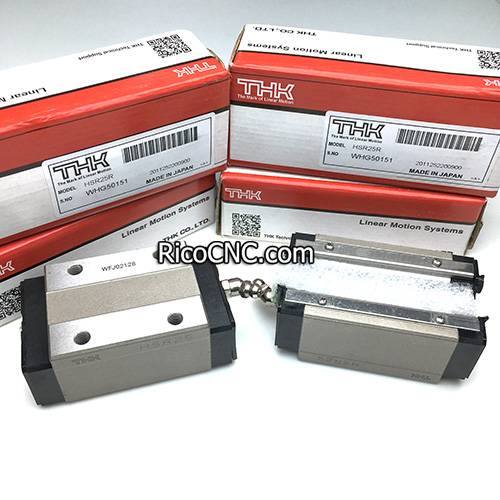

THK HSR25R.jpg

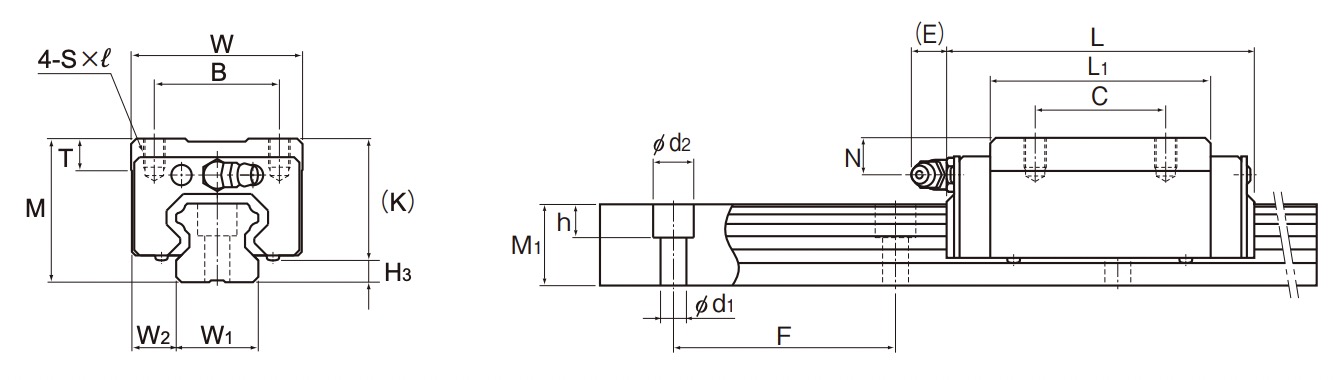

Specification of HSR-R and LR series.

Model No.	Outer dimensions			Block dimensions			Basic load rating
	Outer dimensions			Block dimensions			Radial
	Height	Width	Length	B	C	S x l	Dynamic	Static
	M	W	L	B	C	S x l	C	C₀
	mm	mm	mm	mm	mm	mm	kN	kN
HSR15R	28	34	56.5	26	26	M4 x 5	10.9	15.7
HSR20R	30	44	74	32	36	M5 x 6	19.8	27.4
HSR20LR	30	44	90	32	50	M5 x 6	23.9	35.8
HSR25R	40	48	83.1	35	35	M6 x 8	27.6	36.4
HSR25LR	40	48	102.2	35	50	M6 x 8	35.2	51.6
HSR30R	45	60	98	40	40	M8 x 10	40.5	53.7
HSR30LR	45	60	120.6	40	60	M8 x 10	48.9	70.2
HSR35R	55	70	109.4	50	50	M8 x 12	53.9	70.2
HSR35LR	55	70	134.8	50	72	M8 x 12	65	91.7
HSR45R	70	86	139	60	60	M10 x 17	82.2	101
HSR45LR	70	86	170.8	60	80	M10 x 17	100	135
HSR55R	80	100	163	75	75	M12 x 18	121	146
HSR65R	90	126	186	76	70	M16 x 20	195	228

Linear guides are mainly composed of sliders and guides, and the sliders are mainly used for sliding friction guides. Linear guides are also called linear guides, slides, linear guides, and linear slides. They are used for linear reciprocating motion, and can bear a certain torque, and can achieve high-precision linear motion under high load.
