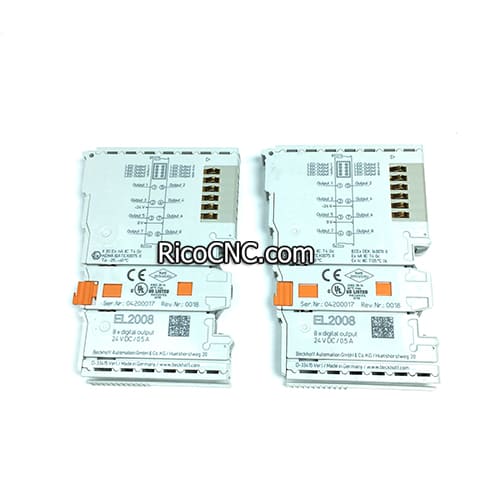

4086050677 digital output terminal.jpg

4086050677 4-086-05-0677 BUS Terminal EL2008 OUT-8 for Homag


The EL2008 digital output terminal connects the binary 24 V DC control signals from the automation device on to the actuators at the process level with electrical isolation. Each EtherCAT Terminal has eight channels that indicate their signal state via light emitting diodes.

EL2008 EtherCAT Terminal.jpg

It is used for HOMAG machine, the HOMAG part number is 4086050677 or 4-086-05-0677.

4-086-05-0677 BUS Terminal.jpg


BUS Terminal EL2008 Special features:

• Connection of different load types possible (ohmic, inductive, lamp load)

• Max. output current 0.5 A per channel

• Short-circuit-proof outputs and reverse polarity protection

8-channel digital output.jpg

Machine Control terminal.jpg

4086050677 4-086-05-0677 BUS Terminal specification:

Connection technology1-wire
Number of outputs8
Nominal voltage24 V DC (-15%/+20%)
Load typeohmic, inductive, lamp load
Max. output current0.5 A (short-circuit proof) per channel
Short-circuit currenttyp. < 2 A
Reverse voltage protectionyes
Breaking energy< 150 mJ/channel
Switching timestyp. TON: 60 µs, typ. TOFF: 300 µs
Current consumption E-bustyp. 110 mA
Electrical isolation500 V (E-bus/field potential)
Current consumption power contactstyp. 15 mA + load
Bit width in the process image8 outputs
Configurationno address or configuration setting
Weightapprox. 55 g
Operating/storage temperature-25…+60°C/-40…+85°C
Relative humidity95%, no condensation

EL2008 PLCs.jpg

There are also many other EtherCAT terminals products made from Beckhoff, please send the model number and images, we will check and reply you quickly.
