Sensores de área de detección de objetos pequeños Panasonic NA1-11-PN

Sensores de área de detección de objetos pequeños Panasonic NA1-11-PN

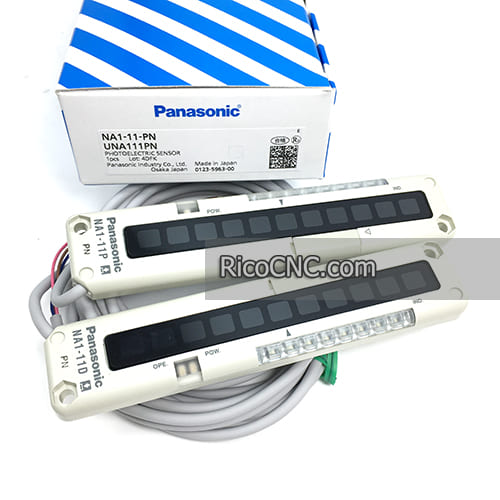

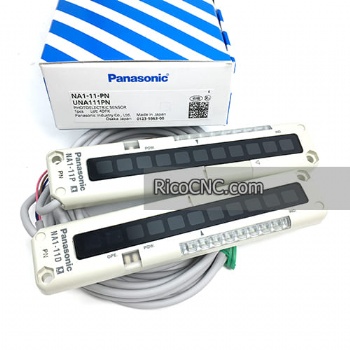

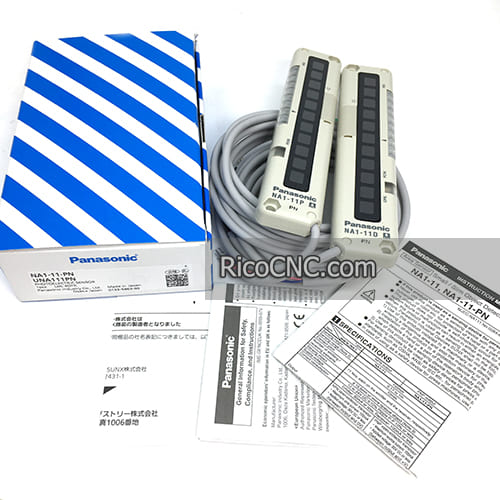

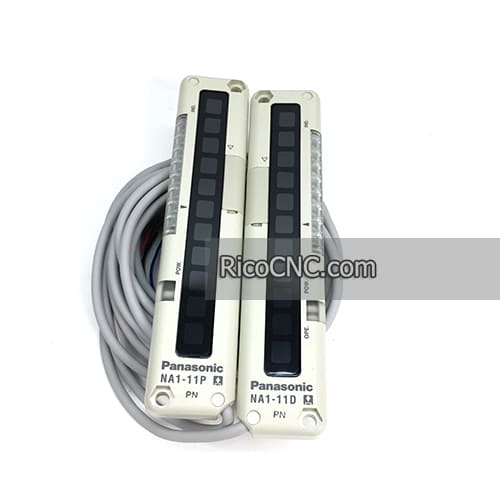

Este es un sensor de área de detección de objetos Small Slim de Panasonic, el número de pieza es NA1-11-PN NA111PN.

NA111PN sensor.jpg

Especificación del sensor de área de detección de objetos delgados NA1-11-PN:

Item	Specifications
Product Number	NA1-11-PN
Products Name	Small / Slim Object Detection Area Sensor
Product details	PNP output
Sensing height	100 mm 3.937 in
Sensing range	0.17 to 1 m 0.558 to 3.281 ft
Element pitch	10 mm 0.394 in
Sensing object	ø13.5 mm ø0.531 in or more opaque object
Supply voltage	12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Output	PNP open-collector transistor
	- Maximum source current: 100 mA
	- Applied voltage: 30 V DC or less (between output and +V)
	- Residual voltage: 1 V or less (at 100 mA source current), 0.4 V or less (at 16 mA source current)
Output:Utilization category	DC-12 or DC-13
Output:Output operation	ON or OFF when beam channel is interrupted, selectable by operation mode switch
Output:Short-circuit protection	Incorporated
Ambient temperature	-10 to 55 ℃ +14 to +131 ℉
Ambient temperature	Storage: -20 to +70 ℃ -4 to +158 ℉
Material	Enclosure: Heat-resistant ABS
	Lens: Acrylic
	Indicator cover: Acrylic
