OBURSSI Brand Rotary Joints Overview

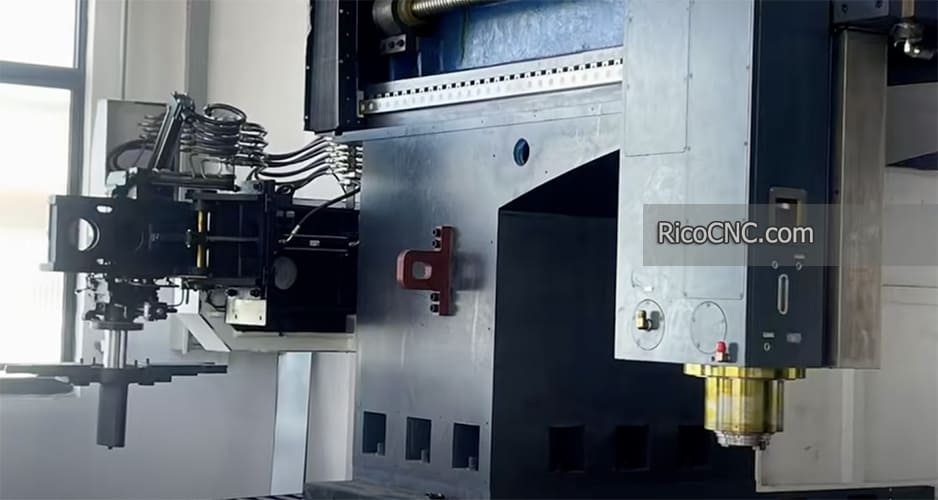

OBURSSI application.jpg

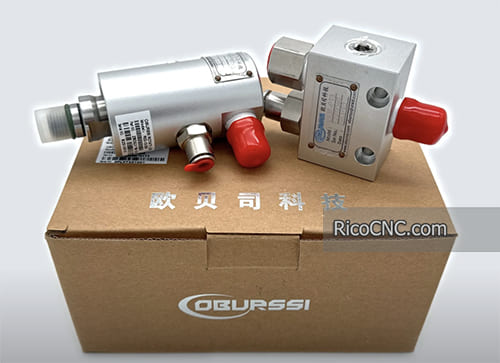

OBURSSI is a brand of rotary joint made by OBR Precision (Jiangsu) Co., Ltd.

OBURSSI rotary joints are usually a set, including shuttle valve, hose and rotary joint, so that the combination can realize the conversion of gas and coolant. Simply use the M-code for conversion, you can realize the function of center outlet or center blowing.


This article presents the range of OBURSSI rotary joints in the form of a catalog: Shuttle valve sets, R01 Standard Rotary Joints, R02 Deep Hole High Pressure Rotary Joints, R03 Ball Screw Rotary Joints, R04 Swing Head Spindle Rotary Joints, R04 Hollow Motor Rotary Joints, R07 Rotary Joints, R08 Electric Spindles Rotary Joints, R09 Ultra High Pressure Rotary Joints


Please see below for a detailed description of each series of products:

shutt valve.jpg

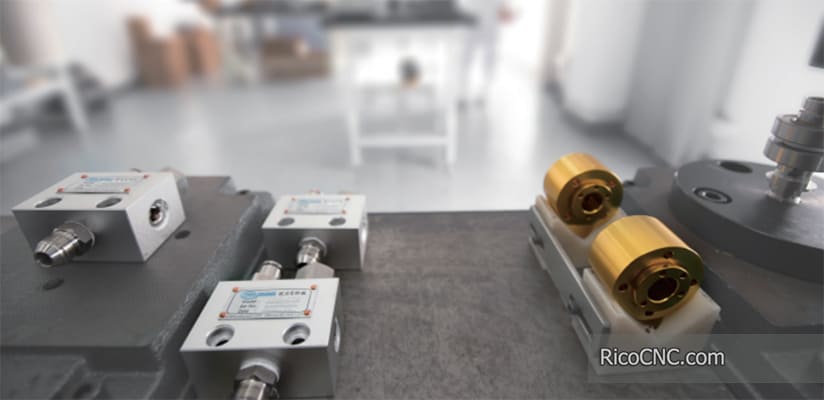

Shuttle Valve

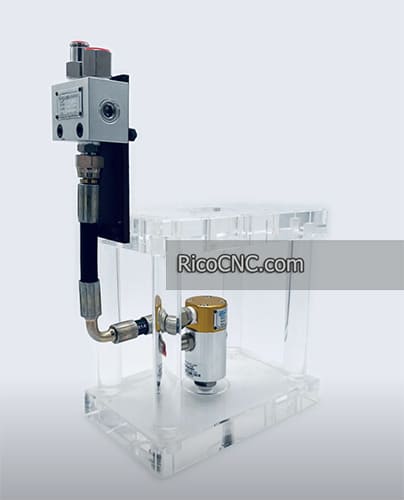

Rotary joints are equipped with shuttle valves that allow the switching of gas and cutting fluid, allowing the customer to switch at any time using an M-code to perform either a center outlet or a center blow. The shuttle valve also serves the important function of ensuring that the rotary joint is free from cutting fluid hose pulling at all times by means of a hose supplied by us.

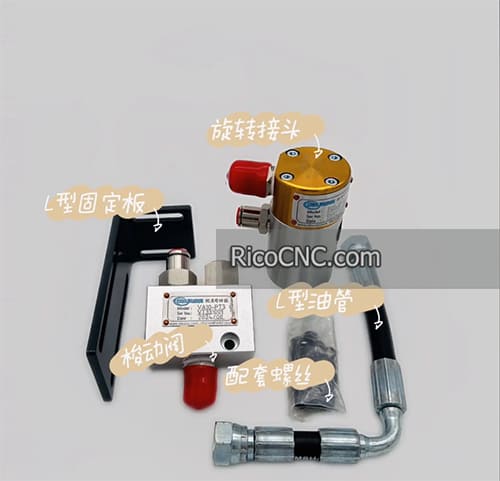

Order No.Shuttle valve kit included:
VA10-PT3  (10MPa)Shuttle valve, L-type adjusting plate, L-type hose,
VA20-PT3  (20MPa)Screws, nuts, flat washers, spring washers

OBURSSI China ROTARY JOINT.jpg

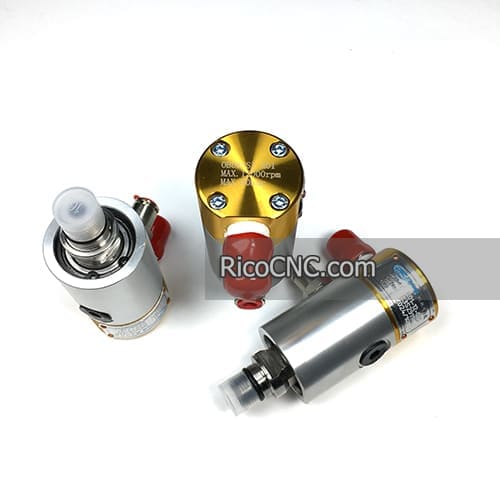

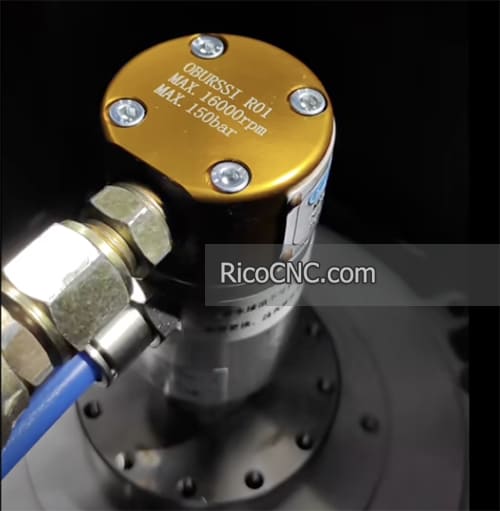

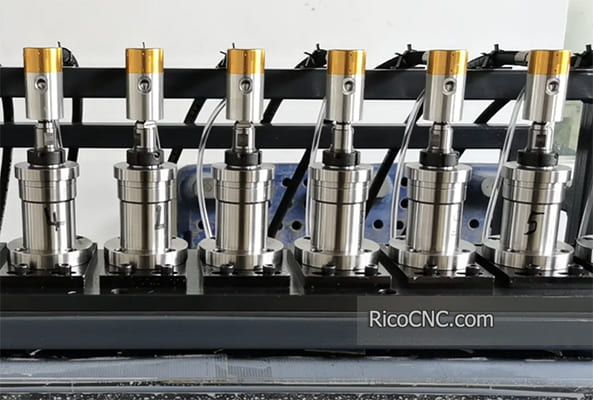

R01 Standard Rotary Joints

Features:

1.Mechanical seal

2.Precision dustproof bearings

3.Compressed air dry running, micro lubrication available.

4.Passage hole diameter Ø5, moderate flow rate Waterproof labyrinth, drain hole protection

5.Can process glass, ceramics and other hard materials.

Maximum speed 12,000 / 16,000rpm
Maximum Pressure (Cutting Fluid) 80 / 150bar
Maximum Pressure (Compressed Air)5bar
Order No.
R011203S/12000rpm
R011203B/12000rpm
R011603S/16000rpm
R011603B/16000rpm


R02 Deep Hole High Pressure Rotary Joints

Features:

1.Mechanical seal

2.Precision dustproof bearings

3.Compressed air dry running, micro lubrication available.

4.Channel aperture diameter Ø9, to meet the requirements of high flow rate

5.Can process glass, ceramics and other hard materials.

Maximum speed 12,000 / 16,000rpm
Maximum Pressure (Cutting Fluid) 120bar
Maximum Pressure (Compressed Air)5bar

Order No.
R021203S/12000rpm
R021603S/16000rpm

oburssi rotary joint.jpg

R03 Ball Screw Rotary Joints

Features:

1.Mechanical sealing Bearingless design Micro lubrication possible

2.Passage hole diameter Ø4~Ø6

3.High precision balancing design

4.Nylon or brass tubes are available according to the length of the screw.

Maximum speed 5,000rpm
Maximum Pressure (Cutting Fluid) 10bar
Maximum Pressure (Compressed Air)not allowed
Order No.Tread
R030512M/ 5000rpmM12
R030516M/ 5000rpmM16
R030520M/ 5000rpmM20

Oburssi shuttle valve rotary joint.jpg

R04 Swing Head Spindle Rotary Joints

Features:

1.Mechanical sealing Bearingless design Dry running possible

2.Micro lubrication

3.Small size, hidden inside the motorized spindle High-precision balancing design.

4.Can be used for machining hard materials such as special metals, glass, ceramics, etc.

Maximum speed 40,000rpm
Maximum Pressure (Cutting Fluid) 80bar
Maximum Pressure (Compressed Air)5bar
Order No.Tread
R044016B-10MM10
R044016B-12MM12
R044016B-16MM16
R044020B-10MM10
R044020B-12MM12
R044020B-16MM16



R04 Hollow Motor Rotary Joints

Features:

1.Mechanical seal

2.Bearingless design

3.Micro lubrication possible

4.Passage hole diameter Ø6

5.High precision balancing design Compressed air and dry running possible

6.Waterproof air curtain protection

Maximum speed 25,000rpm
Maximum Pressure (Cutting Fluid) 80/150bar
Maximum Pressure (Compressed Air)5bar
Order No.Tread
R042503S/ 25000rpmM12
R042503S/ 25000rpmM16

shuttle valve set.jpg

R07 Rotary Joints

Features:

1.Mechanical seal

2.Bearingless design

3.Micro lubrication possible

4.Passage hole diameter Ø7

5.High precision balancing design Compressed air and dry running possible

Maximum speed 40,000rpm
Maximum Pressure (Cutting Fluid) 80/150bar
Maximum Pressure (Compressed Air)5bar
Order No.Tread
R074025B/40000rpmM12
R074025B/40000rpmM16


R08 Electric Spindles Rotary Joints

1.Mechanical Seals

2.Precision Ceramic Bearing

3.Compressible air dry running Trace lubrication possible

4.Passage hole diameter Ø6

5.High precision balancing design

6.High hardness materials such as glass and ceramics can be processed.

Maximum speed 36,000rpm
Maximum Pressure (Cutting Fluid) 80/150bar
Maximum Pressure (Compressed Air)6bar
Order No.
R0801502S/ 15000rpm
R0801502B/ 15000rpm
R0802402S/ 24000rpm
R0802402B/ 24000rpm
R0803602S/ 36000rpm
R0803602B/ 36000rpm

High speed rotary union.jpg

R09 Ultra High Pressure Rotary Joints

Features:

1.Mechanical sealing Ultra-high pressure

2.Passage hole diameter Ø7

3.High precision balancing design

4.High-pressure cleaner for special high-pressure applications

Maximum speed 500rpm
Maximum Pressure (Cutting Fluid) 500bar
Maximum Pressure (Compressed Air)not allowed
Order No.
R090503S


There are aslo many other Rotary Joints Brands, such as RIXROTOFLUX, DEUBLIN, SMARTC, SKT, etc. You can find the joints by contact us!
