DN Solutions 5-axis Vertical Machining Centers Overviews

News

Doosan 5-axis machine centers.jpg

DN Solutions five-axis machine centers have Five-axis Vertical Machining Centers, Five-axis Horizontal Machining Centers, Five-axis Machining Profiler and Five-axis Double-Column Machining Centers. 5-axis Vertical machining centers are reliable, productive, stable, and compact, providing the best machining solution for complex workpieces for a wide range of industries.

There are 5 series machine models of 5-axis Vertical machining centers:

DNM 5AX series: DNM 200/5AX, DNM 350/5AX

DVF series: DVF 4000, DVF 5000, DVF 5000 2nd Generation, DVF 6500, DVF 6500T, DVF 8000, DVF 8000T, DVF 8000T/50

VC 630/5AX series: VC 630/5AX

FM 5AX series: FM 200/5AX

DEF series: DEF 5005

spindle DN.jpg

All series have special features and highlights.

1. DNM 5AX series: DNM 200/5AX, DNM 350/5AX

DNM 5AX series is a High Productivity Full 5-Axis or 5-Face Machining, ideal for customers new to the technology. Compact, productive and designed and built on DN Solutions’ classic DNM architecture.

DNM 5AX series Highlights

a. Optimized column and bed design

High feed rate and precision achieved via the optimized column and bed design.

b. Direct-coupled spindle

Minimized noise and vibration

High-speed and heavy-duty cutting

c. High-precision travel system

Roller-type LM guideways

High-rigidity coupling

5 axis machine centers.jpg

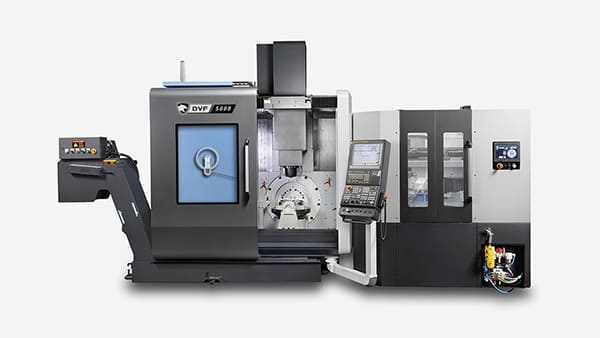

2. DVF series: DVF 4000, DVF 5000, DVF 5000 2nd Generation, DVF 6500, DVF 6500T, DVF 8000, DVF 8000T, DVF 8000T/50

DVF 5000 5-axis machining centres are designed for component manufacturers looking to machine high-precision, complex parts in one hit. Equipped with leading edge technology and supplied ‘automation- ready’, these machines will take your productivity and performance to a whole new level.

DVF series Highlights

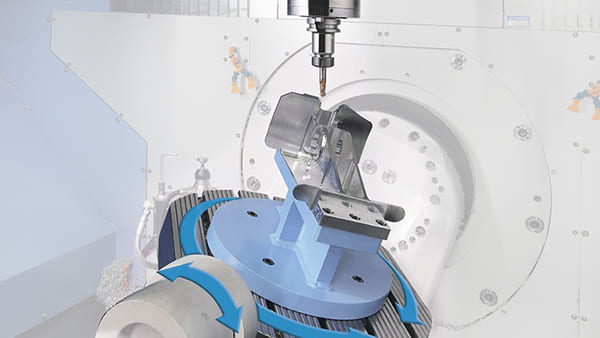

a. Solutions for complex shapes

12000 / 18000 r/min high-speed spindle

2-axis tilting table from Ø400 mm to Ø800

Table turning function : DVF 6500T / DVF 8000T

High torque spindle of 426 N.m : DVF 8000T/50

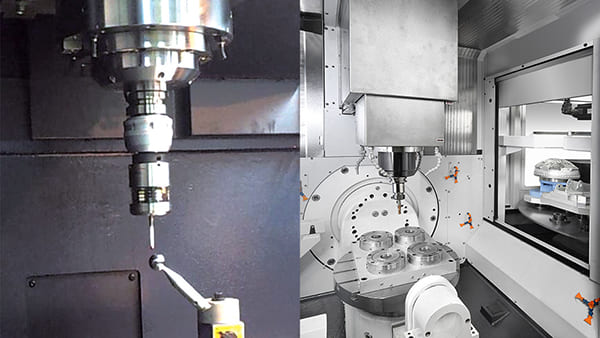

b. High-precision

Tool length measurement probe is provided as standard.

Integrated thermal compensation systems for spindle and structure

Spindle cooling provided as standard

c. User-friendly machine

The tool magazine is able to hold up to 120 tools and the multi-pallet system facilitates unmanned running.

Compact automation systems are available (AWC, RPS, LPS)

DOOSAN vertical machine.jpg

3. VC 630/5AX series: VC 630/5AX

The VC630/5AX enables the full simultaneous 5-axis machining of complex parts in a single set-up.

VC 630/5AX series Highlights

a. High-rigidity machine structure

b. Built-in spindle

c. Higher machining accuracy

4. FM 5AX series: FM 200/5AX

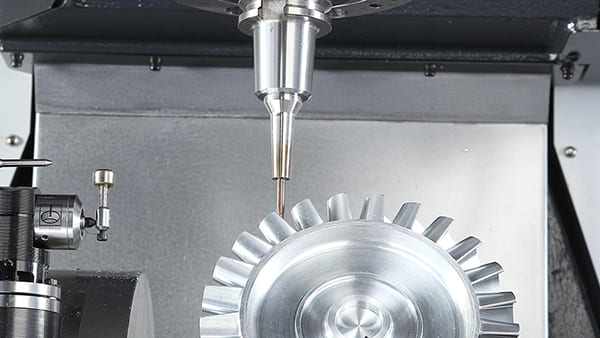

The high-speed, high-precision 5-axis machining center enables high-accuracy, full simultaneous 5-axis machining of aerospace and medical components as well as 3 + 2 and 4 + 1 machining of complex parts.

FM 5AX series Highlights

a. Stable bed and strong structural design

Symmetrical gantry structure

Mineral cast bed

b. Stable cutting based on anti-vibration materials and a symmetrical gantry structure.

42000 r/min spindle speed

HSK-E40 interface

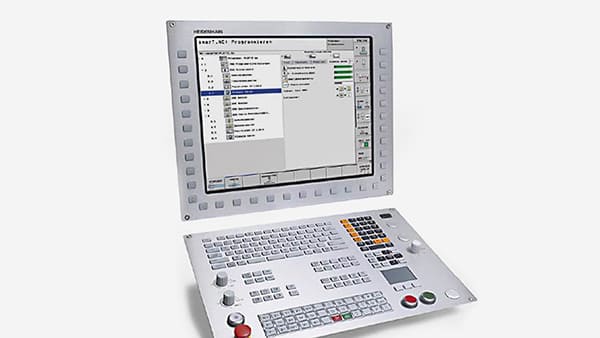

c. Heidenhain control for maximum reliability

5. DEF series: DEF 5005

DEF series is used in a wide range of manufacturing applications where high precision and surface quality are required and where complex curved surfaces and geometries have to be handled.

DEF series Highlights

a. High-performance direct-connected spindle and spindle & casting thermal displacement compensation are standard.

Optional 15k, 20k r/min high speed spindles provide stable machining performance by dramatically reducing vibration and thermal errors during high speed spindle machining.

b. X/Y/Z axes are equipped with roller type linear guideways to provide high precision and stable structure.

Outstanding axis system rapid traverse speeds (42 / 42 / 42 m/min for X/Y/Z axes and 25 r/min for B/C axes) enable high productivity, while machining flexibility and efficiency are enhanced by the B/C rotary axis.

c. Stable machining and convenient operation

The front-mounted tool magazine door and ergonomic design make it easy for the operator to approach and install the workpiece space. It is also easier to set up the machine and reduces the difficulty of operation, making it easy for more operators to master.

five axis vertical machine.jpg

Doosan CNC machine tools can provide customized solutions for different applications and needs. Whether it is metalworking, mold making, aerospace or automotive manufacturing, Doosan CNC machine tools can provide applicable products and technical support. Rico CNC now can supply many Doosan/DN macine tools, not limited to below parts:
