A multi-tasking turning center is a machine that combines both turning and milling in a single unit, allowing multiple operations to be performed in one setup and reducing setup time. DOOSAN Multitasking Turning Centers are With multiple processes integrated into a single machine to minimize working time, the highest machining capacity in its class, and a user-friendly design, these turning centers offer high efficiency and an optimal solution for a wide range of customer needs.

There are two series:

SMX series: SMX2100, SMX2100S, SMX 2100ST, SMX2100B, SMX2100SB, SMX2100STB, SMX 2100L, SMX 2100LS, SMX 2100LST, SMX2600, SMX2600S, SMX2600ST, SMX3100, SMX3100S, SMX3100ST, X3100L, SMX3100LS, SMX5100L, SMX 5100LB, SMX5100LS, SMX5100LSB, SMX5100XL, SMX5100XLB

DNX series: DNX 2100, DNX 2100B, DNX 2100S, DNX 2100SB

SMX series center.jpg

1. SMX series

With a total of nine axes on the SMX Series, there is essentially no limit to what you can create. SMX machines are equipped with larger chuck sizes than PUMA MX machines but deliver the same high performance and impressive flexibility. These machines make all the difference.

a. Powerful multi-tasking capacity for higher productivity

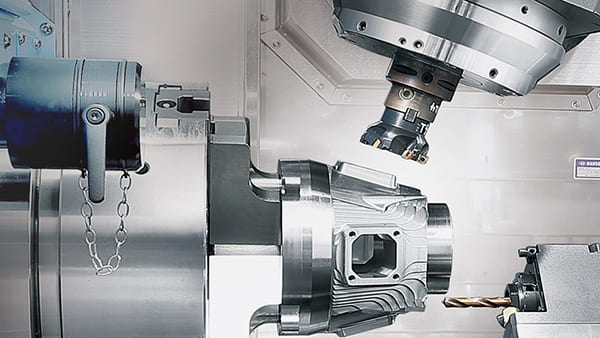

Even higher multi-tasking capability is available from SMX machines through the combination of the left and right spindles, the B-axis milling function and a lower turret ideal- making the machines ideal for complex, high-precision machining.

Orthogonal structure maximizes machining space.

12 station high-rigidity servo turret ensures accurate and powerful cutting performance, and outstanding process reliability.

DOONSAN turning machine .jpg

b. Outstanding control delivers higher precision

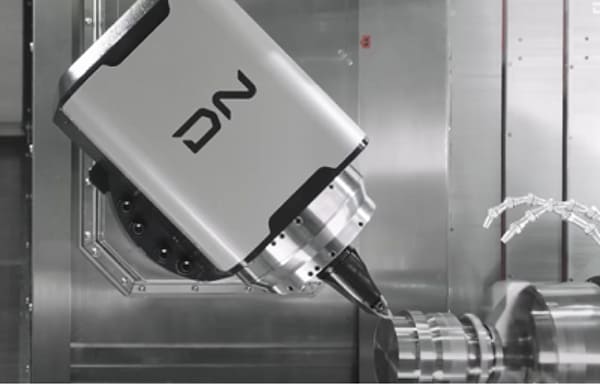

0.0001-degree precision control function of B-axis and C-axis enables high-precision machining.

Minimized thermal displacement of the spindle and feed axis by the optimized cooling solution and smart thermal compensation ensure high precision even during long machining runs and extended use.

c. Easy and convenient functions

Front located tool magazine and convenient ATC operation panel make it easy to change and replace tools, and monitor and check tool change operations.

Side-to-side movable swivelling operation panel with adjustable height settings. User friendly work guidance function.

User friendly work guidance function.

DN Powerful Options.jpg

2. DNX series

A compact multitasking machine capable of machining complex workpieces to perfection. With the largest machining area in its class and significantly enhanced convenience and productivity options, you can maximize your business productivity.

a. Powerful Multitasking Machining Capabilities, Higher Productivity

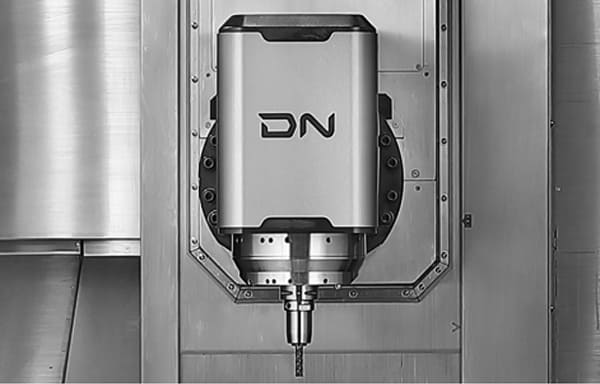

The dual spindles (1st and 2nd), 0.0001° B-axis, milling spindle, and servo tailstock offer outstanding multitasking capabilities, making it perfect for machining intricate parts.

With an orthogonal structure, it offers the largest machining area in its class.

New optional features are designed with convenience in mind.

Powerful Multitasking Machining.jpg

b. Featuring a High-Power Built-in Spindle as Standard

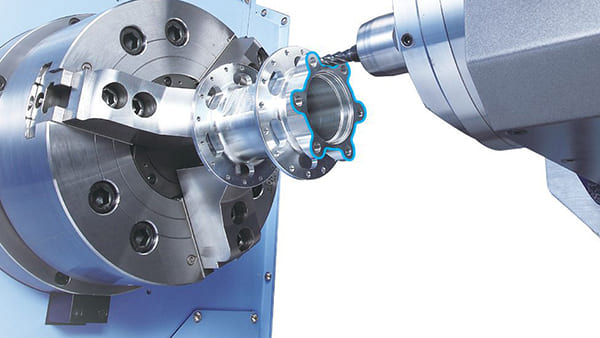

Equipped with a built-in spindle with the highest output in its class

Increased precision with the highest clamping force in its category.

High-precision control of the B-axis in 0.0001° increments.

c. Powerful Options

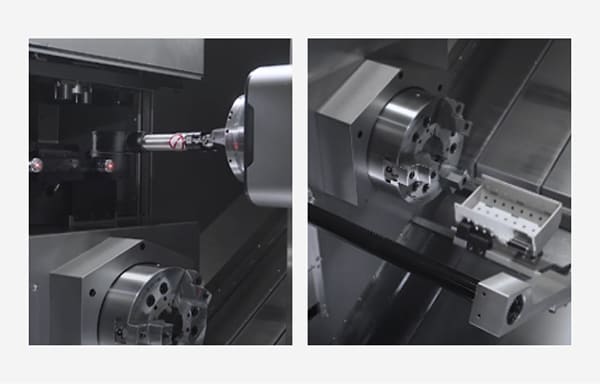

Increased productivity with a tool breakage detection device integrated within the magazine.

Equipped with an arm-type tool setter.

Enhanced space utilization and quality with the new parts catcher.

Improved Convenience control.jpg

d. Improved Convenience

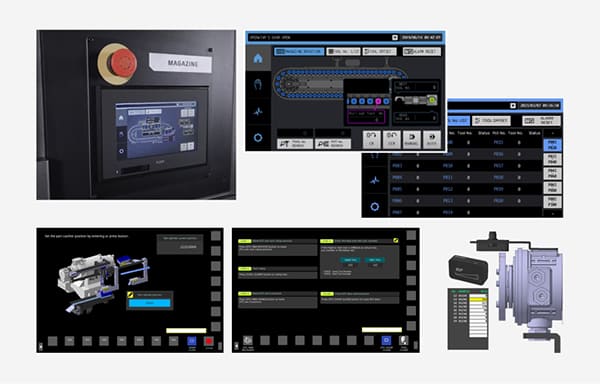

Equipped with a 7 inch ATC Magazine Screen as a standard feature.

Parts catcher (servo) with an unloading position setting feature.

Equipped with an alarm recovery function.

Adoption of a chuck position sensor reduces process and chuck replacement time.

e. Software

Features DSSV (DN Solutions Spindle Speed Variation) as a standard feature for improved machining quality.

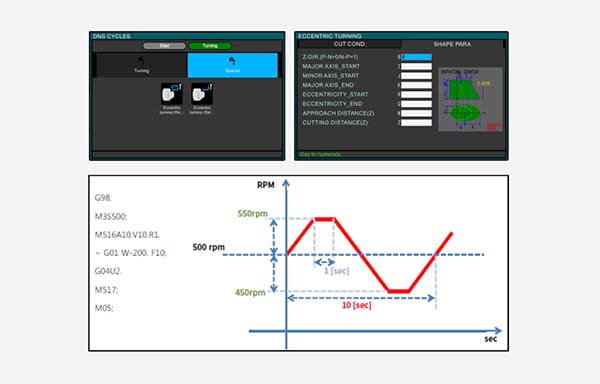

Easy-to-use machining cycles, such as Eccentric Turning.

Turning center accessories for metalworking include items that enhance functionality and precision. These attachments can improve the quality of the workpiece, speed up production, or provide safety features. Some common attachments include chucks, live centers, drill chucks, cutting tools, steady rests, quick change tool posts, and faceplates, as well as stands for the lathe itself.

Rico can supply various parts for Doosan Machine centers.

850412-00052 DIN40 CAT40 Gripper Tool Claw Collet Assy for Doosan Daewoo DNM DMC FFGDMC Machine

Collet Assembly Doosan DIN 40 Taper 850412-00308C 850412-00308D for Claw CMV HC MYNX NM VC Series Machine tools

Doosan Collet DIN50 850412-01228 R76628A for Doosan Daewoo DNM DMC FFGDMC Machine

Doosan Daewoo Machine Tool Claw BT40 850412-00678A for CMV MYNX NM Series

Doosan BT50 850412-00963A R76629 CNC Gripper

RH10TD-30O Doosan AC Servo Motor 300508-00698A-CS

Kwangwoo Manual Encoder Wheel RIM-80-0100-BVA for DOOSAN Machines

Doosan 301411-00100B DN Sensor Touch for DN Machine

301417-00031 Safety Door Switch Doosan Machine Tool STP3A-537A024MC2363

GSBF02R12-502-MC1806 EUCHNER 094147 Limit Switch Position Switch Doosan ESWLM0059B

DOOSAN Servo Drive DVSC-TM-28C 300419-00036B Servo Drive
