Top 6 Commonly Used Masterwood Machine Parts

Masterwood, a professional woodworking machinery manufacturer originating in Italy, was founded in 1990 and is now a holding company of Hongya CNC (a listed company in China). It specializes in the research, development, and production of high-end CNC woodworking equipment. Its woodworking machines are widely used in furniture manufacturing, panel processing, and other fields.

masterwood cnc parts.png

Masterwood Core Product Lines:

1. CNC Machining Center

• Winner Series (Winner EVO 250/351/385/485/470/HP): Supports 3-, 4-, and 5-axis synchronization, suitable for high-precision tasks such as furniture processing, panel cutting, and 3D modeling.

• Project Series (Project 250/323/565/4WIN): Bridge or gantry-type machines offer high-speed, high-rigidity, and stable machining performance, making them suitable for large-sized panels and solid wood projects. • Nesting Series (KS, M, M5): Optimizes material utilization, suitable for integration into automated production lines, and enables precise nesting.

2. Drilling Centers (Masterwood TF 600 KT, TF 600 KST, TF 600 KS, TF 600SA, SPEEDY): Multi-axis automatic drilling and pin injection functions are optimized for door and furniture production.

masterwood parts.jpg

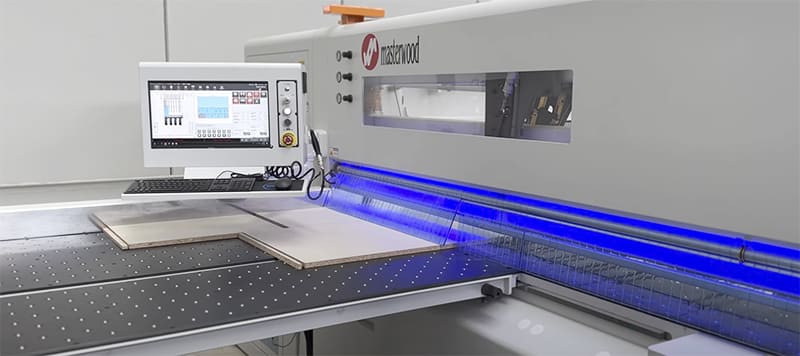

3. Beam Saws: Includes the Masterwood MS 320 G, MS 450, MS 320L, MS 450 L, and XY 450 L high-efficiency, high-speed cutting machines, suitable for batch cutting to size.

4. Edgebanders: Includes the Masterwood ME-508, ME-509, MX-509, ME-510, and ME-309.

5. Cells and Automatic Lines: Automated production solutions include 4WIN (dedicated to door and window profile processing), DoorLine (complete door and window production system), and TeknoLine/Project Doors (door frames and assembly lines).

masterwood tools (1).jpg

While Masterwood machines are popular for their stable performance and high processing precision, some parts are subject to wear and tear over time. To ensure continued efficient operation, it is crucial to promptly identify and replace these common wear parts. Below, we introduce common wear parts found in the Masterwood machine for your reference and selection.

ISO30 plastic tool holder for Masterwood.jpg

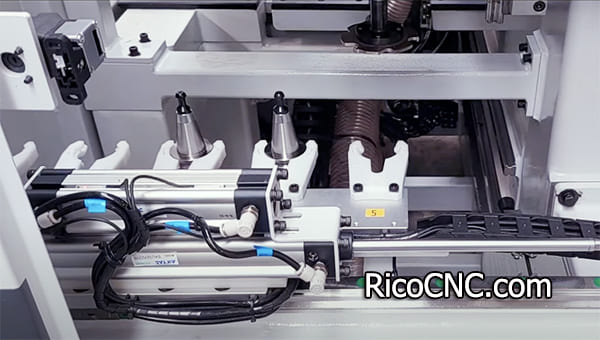

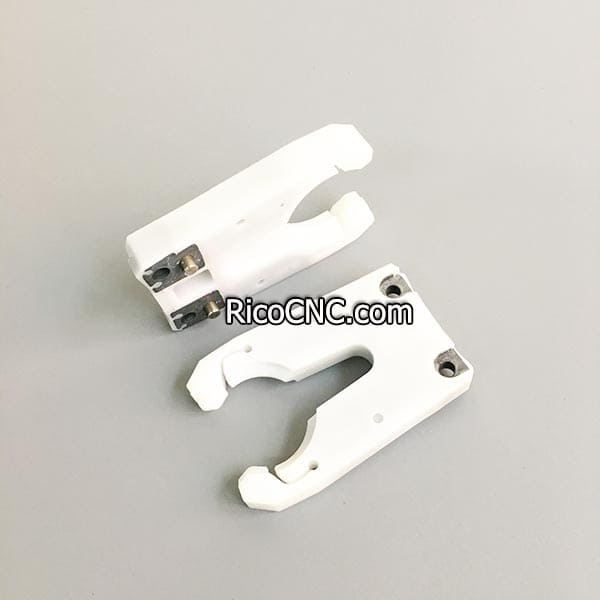

1. Plastic tool holder fork

ISO30 tool holder fork for Masterwood TF600KT automatic drilling machine

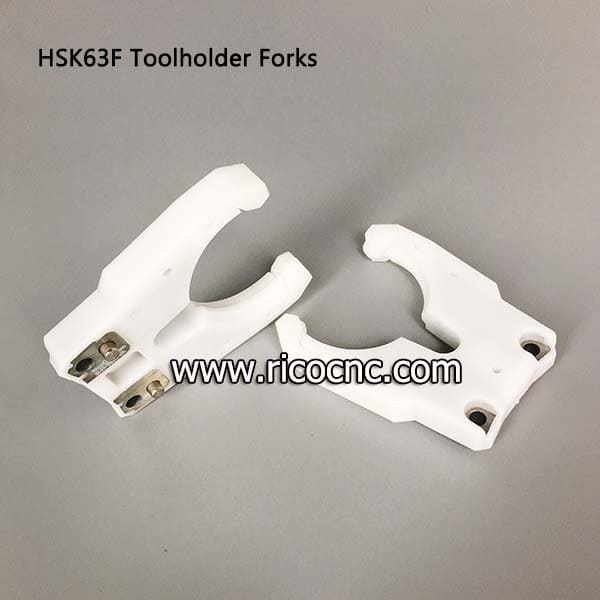

HSK63F tool holder fork

HSK63F tool holder fork for Masterwood .jpg

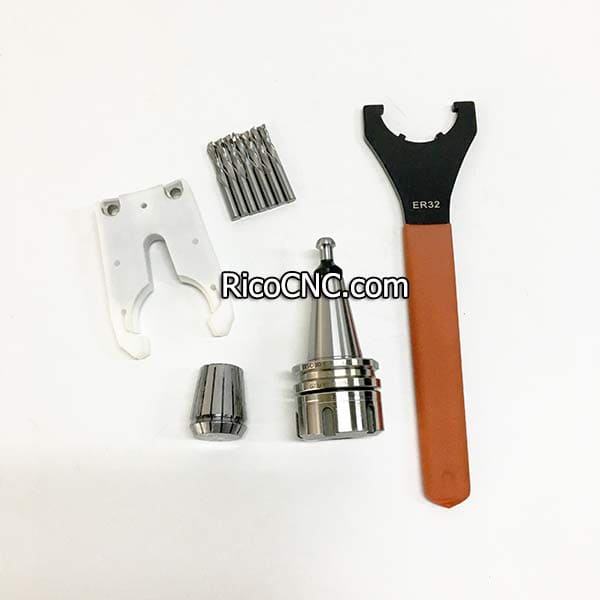

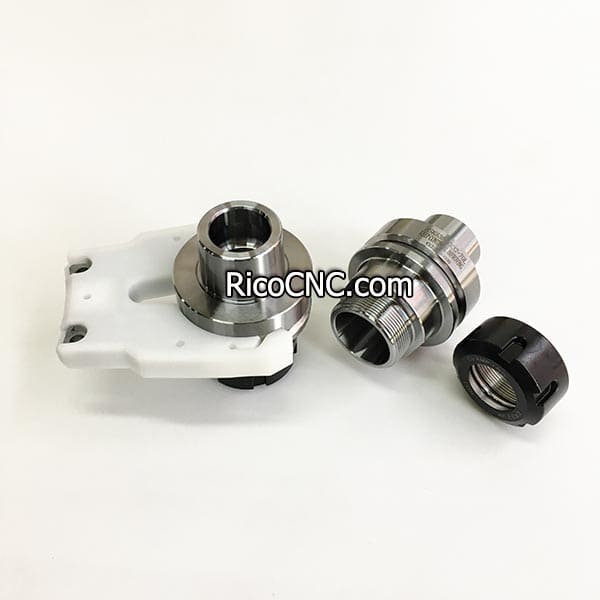

2. Collet chuck and collets

ISO30 ER32 Collet Chuck for Alberti, Vitap & Masterwood (motor G. Colombo)

ISO30 ER40 Collet Chuck for Alberti, Vitap, Masterwood (motor G. Colombo)

HSK63F ER32 collet chuck

HSK63F ER40 collet chuck

ER collets

ISO30 CNC tools for masterwood.jpg

HSK63F cnc tools for masterwood.jpg

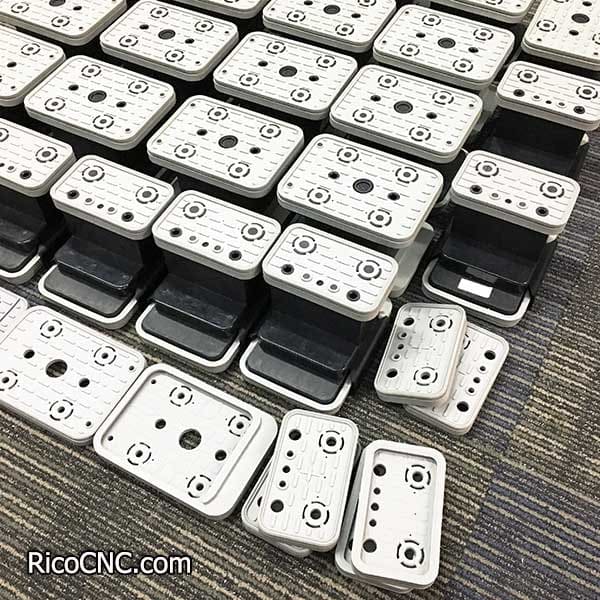

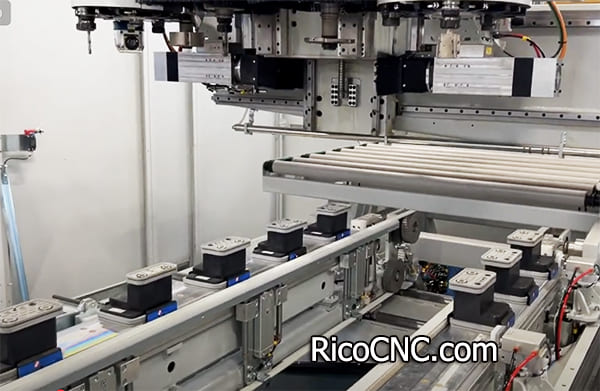

3. Vacuum Suction Cup and CNC suction rubber

VCBL-K2 140x115x50 for MASTERWOOD Winner 2.45K processing centre, WINNER EVO 250

VCBL-K2 120x50x100 for Masterwood Project 351L

VCBL-K2 160x115x100 for Masterwood Project 351L

VCBL-K2 125x75x100  for Masterwood Project 351L

VCBL-K1 125x75x100 Q for Masterwood Project 250

VCBL-K1 125x75x100 L for Masterwood Project 250

Vacuum Suction Cup for masterwood.jpg

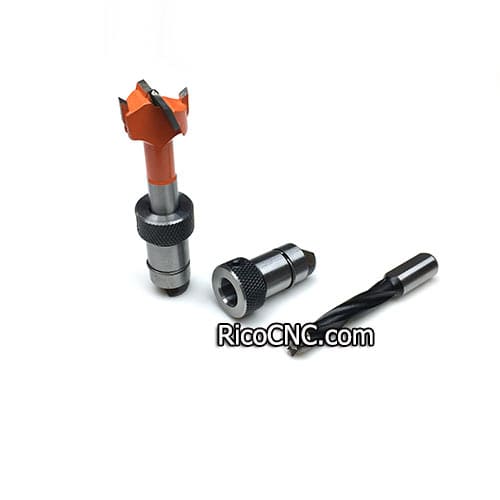

4. Quick Change Drill Holders for Masterwood

Quick Change Drill Holders.jpg

5. 3/8" Round Medium Density CNC Gasket (mostly used with older-style Masterwood cups)

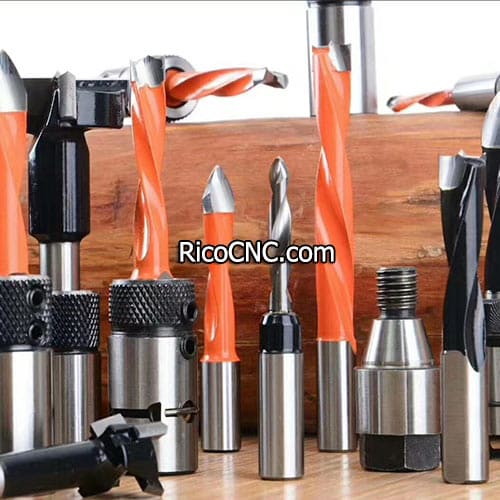

6. CNC router bits and drilling bits

cnc drilling bits.jpg

Maintaining your Masterwood machine requires the right parts! RicoCNC offers a wide selection of high-quality Masterwood spare parts to help you reduce downtime and increase productivity. Whether you need routine replacements or long-term spare parts, we have the right options for you. If you're looking for spare parts for Masterwood CNC machining centers, beam saws, edgebanders, or drilling machines, please don't hesitate to contact us.

master wood suction cup.jpg
