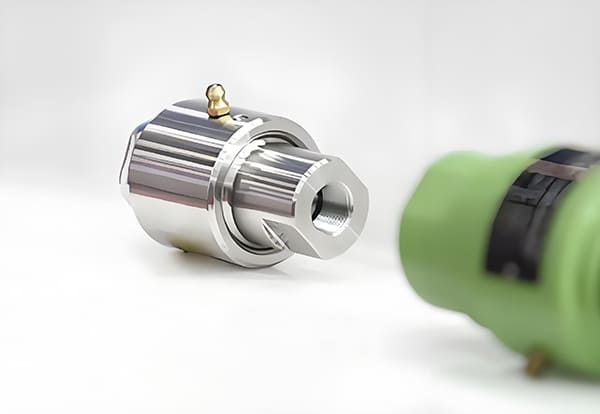

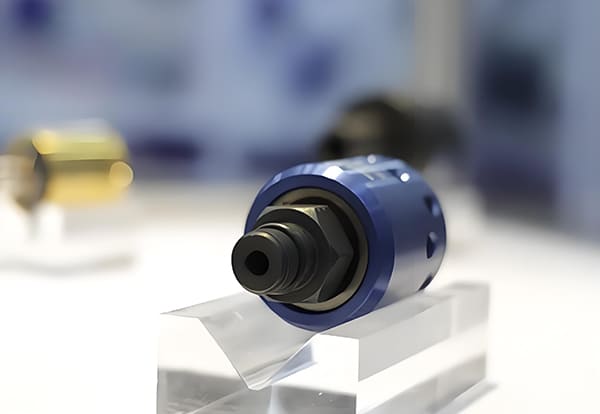

How Does a Rotary Joint Work? Unveiling the Secrets of This Crucial Device

A rotary joint, also known as a rotary union, is a device that allows the transmission of fluid or electrical signals from a stationary source to a rotating component. This ingenious mechanism plays a pivotal role in countless industrial applications, from robotics to wind turbines. In this comprehensive guide, we'll delve into the inner workings of rotary joints, exploring their various types, applications, and the science behind their operation. Whether you're an engineer, a student, or simply curious about industrial technology, this article will provide you with valuable insights into these essential components.

What Exactly is a Rotary Joint?

A rotary joint is a mechanical device designed to allow the transfer of various media – such as fluids, gases, or electrical signals – between stationary and rotating parts of a machine. These joints are crucial in many industrial applications where continuous rotation is required while maintaining a sealed connection for fluid or signal transmission.

Key Components of a Rotary Joint

• Rotor

• Stator

• Seals

• Bearings

• Housing

Each of these components plays a vital role in the functioning of a rotary joint. The rotor is the rotating part, while the stator remains stationary. Seals prevent leakage, bearings support the rotating components, and the housing encases the entire assembly.

How Does a Rotary Joint Work?

At its core, a rotary joint works by creating a sealed passage between stationary and rotating parts. The fluid or signal enters through the stationary part (stator) and is then transferred to the rotating part (rotor) through carefully designed channels and seals.

1. Fluid enters the stationary part

2. Passes through seals into the rotor

3. Exits through the rotating component

This process allows for continuous operation without interrupting the flow or signal transmission, even as the machine parts rotate.

What Are the Different Types of Rotary Joints?

Rotary joints come in various types, each designed for specific applications and media. Here are some common types:

1. Hydraulic rotary joints

2. Pneumatic rotary unions

3. Electrical slip rings

4. Fiber optic rotary joints

5. Multi-passage rotary unions

Each type has its unique characteristics and is suited for different industrial needs.

Why Are Rotary Joints Crucial in Industrial Applications?

Rotary joints play a critical role in many industrial processes by enabling:

• Continuous operation of rotating machinery

• Efficient transfer of fluids or signals

• Reduced downtime and maintenance

• Improved safety in high-pressure applications

Without rotary joints, many modern industrial processes would be impossible or highly inefficient.

What Industries Commonly Use Rotary Joints?

Rotary joints find applications across a wide range of industries, including:

• Aerospace

• Automotive

• Food processing

• Paper manufacturing

• Plastics and rubber production

• Wind energy

• Robotics and automation

In each of these industries, rotary joints serve specific purposes, from transferring hydraulic fluid in heavy machinery to enabling signal transmission in radar systems.

How Do Seals Function in a Rotary Joint?

Seals are perhaps the most critical component of a rotary joint. They prevent leakage while allowing rotation. There are several types of seals used in rotary joints:

• Mechanical seals

• Lip seals

• O-rings

• Labyrinth seals

Each type of seal has its advantages and is chosen based on the specific requirements of the application, such as pressure, temperature, and rotational speed.

What Challenges Do Rotary Joints Face?

Despite their crucial role, rotary joints face several challenges:

1. Wear and tear due to continuous rotation

2. Pressure and temperature fluctuations

3. Contamination of the media being transferred

4. Alignment issues

Overcoming these challenges requires careful design, material selection, and regular maintenance.

How Are Rotary Joints Maintained?

Proper maintenance is essential for the longevity and efficiency of rotary joints. This typically involves:

• Regular inspection for leaks or wear

• Lubrication of bearings

• Replacement of worn seals

• Alignment checks

Preventive maintenance can significantly extend the life of a rotary joint and prevent costly downtime.

What Innovations Are Shaping the Future of Rotary Joints?

The field of rotary joint technology is continuously evolving. Some exciting innovations include:

• Smart rotary joints with integrated sensors

• Advanced materials for improved durability

• Multi-channel designs for complex applications

• Contactless rotary joints for high-speed applications

These innovations promise to make rotary joints even more efficient, durable, and versatile in the future.

How Do You Choose the Right Rotary Joint for Your Application?

Selecting the appropriate rotary joint is crucial for optimal performance. Factors to consider include:

• Type of media being transferred

• Operating pressure and temperature

• Rotational speed

• Environmental conditions

• Space constraints

Consulting with a rotary joint specialist can help ensure you choose the right product for your specific needs. In conclusion, rotary joints are indispensable components in many industrial applications, enabling the seamless transfer of fluids, gases, and signals between stationary and rotating parts. Understanding how they work, their various types and the challenges they face is crucial for anyone involved in industrial engineering or machinery design.

Key takeaways:

• Rotary joints allow fluid or signal transfer between stationary and rotating parts

• They come in various types, including hydraulic, pneumatic, and electrical

• Seals are critical components that prevent leakage

• Regular maintenance is essential for optimal performance

• Innovations in materials and design are shaping the future of rotary joints

• Proper selection is crucial for specific application requirements




By leveraging the power of rotary joints, industries can achieve higher efficiency, improved safety, and enhanced productivity in their rotating machinery applications
