Six Type Common Used woodturning tools For CNC wood lathe machine

Woodturning is one of the most artistic aspects of woodworking. For the beginning woodturner, especially, the woodworking lathing tool used in the CNC wood turning machine, how to choose it is a bit difficult, this article will help you to make a quick decision on the application and variety of woodturning tools.

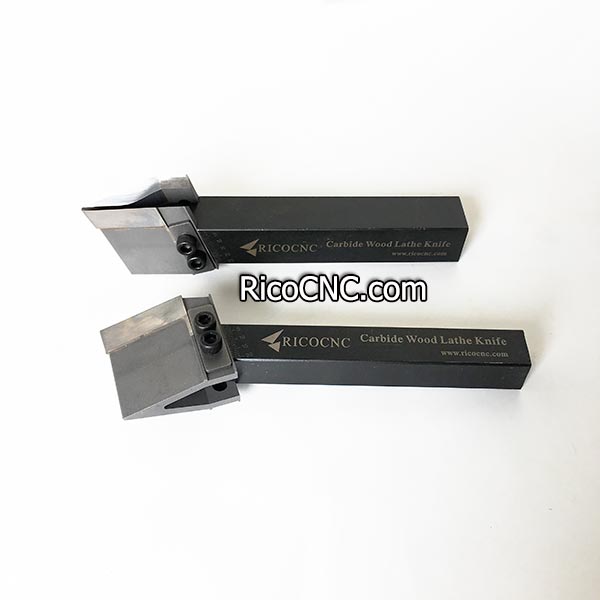

1. RC-V Series Carbide Woodturning Lathe Knife Tools

It is used with CNC wood turning lathe machines, CNC automatic wood lathe, and woodturning copy lathes, such as CNC auto motion, Cosen CNC, Intorex, Beaver, Unique CNC, StyleCNC, Laguna, etc. it can Improve productivity, and reduce production costs.

CNC Wood Turning Lathe Cutters Material:

Knife holder: 40Cr Steel, size 20*20*150mm or 25*25*150mm

Knife blade: high quality solid carbide

Blade length: 40mm

Cutting angle: 17 degree

Blade tip radius: 0.5mm or 0.75mm or 1mm or 1.5mm or 2mm or 5mm

Blade thickness: 13mm

Blade Hardness: 91-91.5 HRC

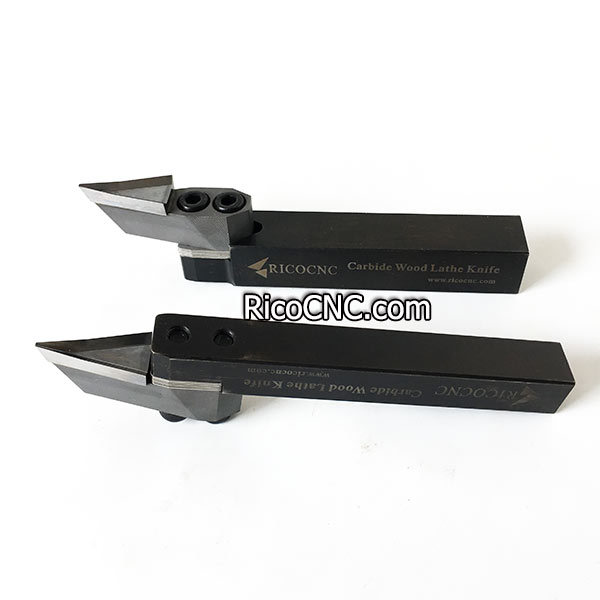

2. RC-X Carbide Wood Lathe Knife Heads

it is much easier to resharpen the carbide blade head than old style

Turning Blade: Carbide Tipped

Blade length: 40mm

Blade tip radius: 0.6mm or 0.9mm

Blade thickness: 20mm

Blade V degree: 26°

Blade Hardness: 93 HRC

Knife holder: 40Cr Steel,

Tool holder size 20*20*150mm or 25*25*150mm

Toolholder hardness: 45-50HRC

Suitable for Sidewinder CNC lathe

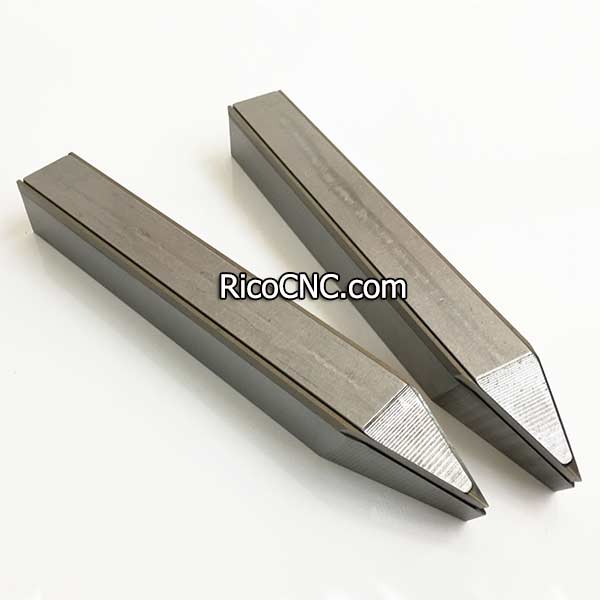

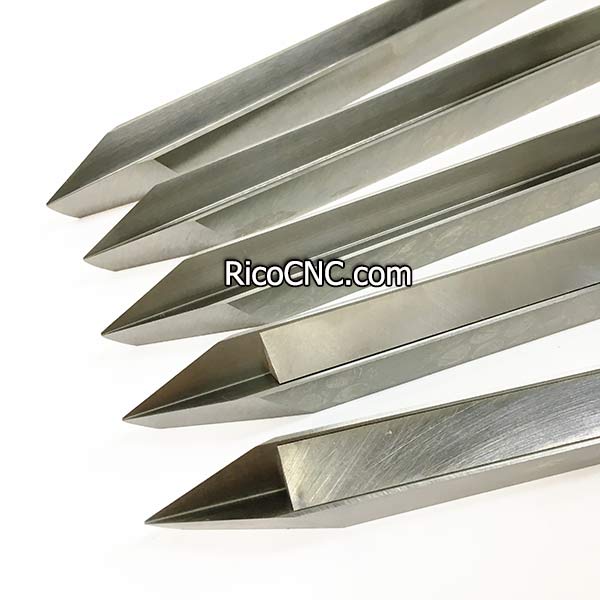

3. 2in1 HSS Steel Woodturning Lathe Knife

HSS woodturning knife is great for soft wood and semi-hard wood turning. If you want to lathe beech and red oak, we have top quality lathe tools made of Swiss imported high speed steel, hardness HRC=68°~70°.

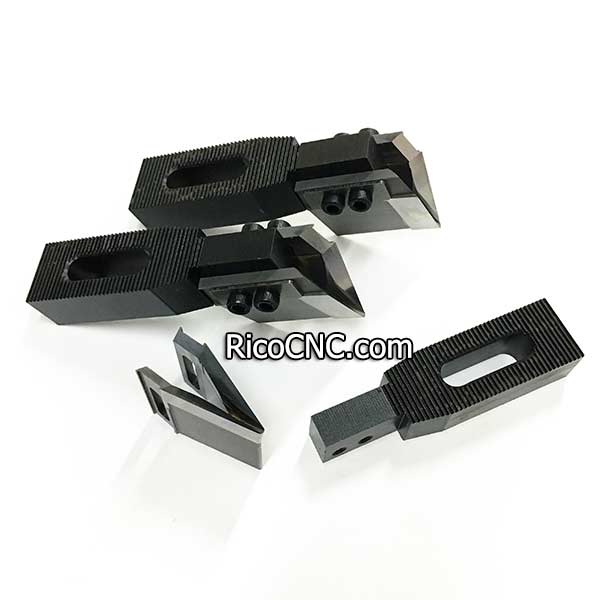

4. 3 In 1 Wood Lathe Knife Tools

It is includes a chisel tool steel knife body, alloy steel knife blade, and chisel tool steel knife pressure clamp plate. Alloy steel knife blade hardened to 67-69 HRC. lasts for a long time using. it can be used in soft wood, mahogany, hardwood, middle hardwood, rubber, plastics, acrylic, carbon fibers, resins and other materials CNC lathing. (Cork or super cork processing, there will be good results)

Alloy Steel Wood Lathe Cutter Material:

Knife holder: chisel tool steel

Knife blade: alloy steel

Size: 25*25*200mm

Blade Hardness: 67-69 HRC (Harder than HSS 60-66HRC)

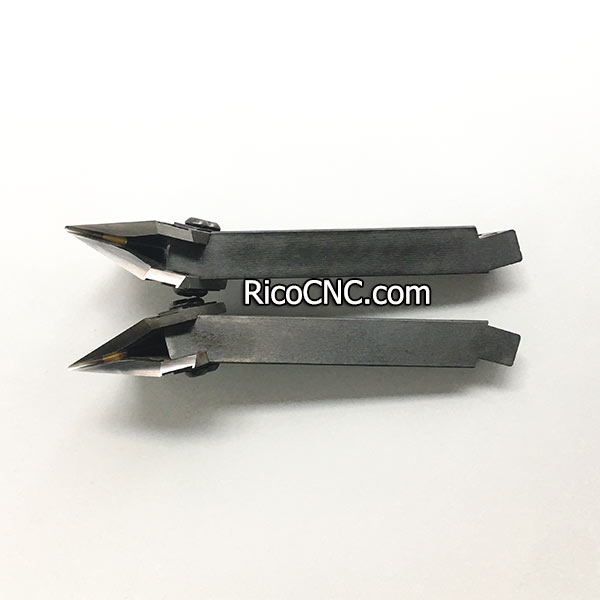

5. Carbide Woodturning Lathe Knife Tools (Intorex, Klein style)

This carbide wood lathe knife is design for Intorex woodturning copy lathe, used as Intorex, Sistemi Klein lathe knives. it is made of carbide, great result on hardwood and semi-hardwood lathing, and last much longer time than HSS back knives. The holder part is same as Sistemi Klein lathe knives and Intorex lathe knives like X222.4.005, X222.4.020, X222.4.040, X222.4.060, X222.4.100.

Intorex Lathe Knife Specification:

Knife holder: 40Cr Steel, size 30*22*130mm

Tip: Carbide Tipped

Blade length: 40mm

Blade tip radius: 0.75mm or 1mm or 1.5mm

Blade thickness: 13mm

Blade Hardness: 91-91.5 HRC

6. 90 Degree Carbide Woodturning Lathe Knife Tools

This carbide tip lathe tool is specially designed for 90° straight woodturning, for external wood lathing. Indexable carbide lathe cutter with 90 degrees CNC lathe milling external turning tool holder.

Knife holder: 40Cr Steel, size 20*20*140mm or 25*25*140mm

Tip: Carbide Tipped

Blade length: 40mm

Degree: 90 degree

Blade tip radius: 0.75mm or 1mm or 1.5mm

Blade thickness: 13mm

Blade hardness: 91-91.5 HRC

Usage: External woodturning lathing cutting

If you need them, RicoCNC welcomes your inquiry.
