What are important factors in choosing a tool holder?

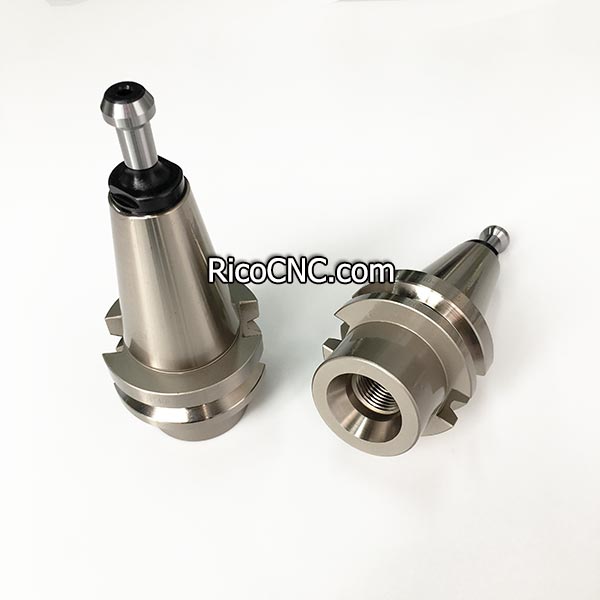

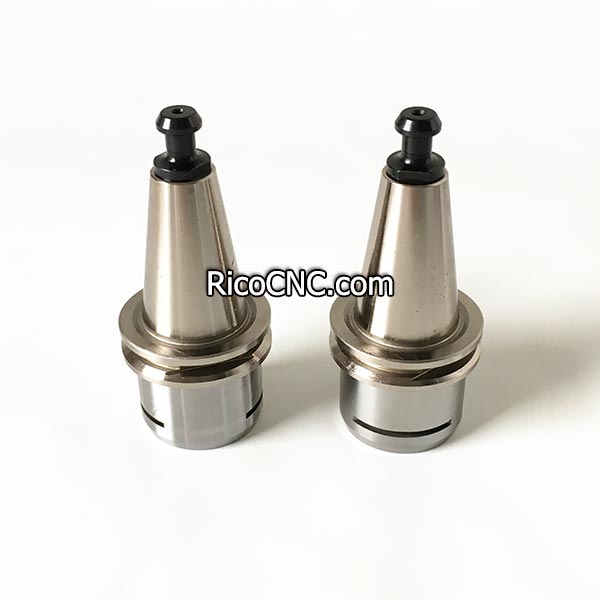

Toolholders( toolholder, tool holders, Collet Chuck Tool Holder) often connect the machine and the cutting tool; they can hold and clamp the cutting tools tightly when producing a workpiece.

A low-quality tool holder or low-quality spindle can shorten the machine’s overall tooling life. Also, corrosion, low dimensional accuracy,y and instability will bring you a huge maintenance cost on your router machine. In this article, you can avoid a lot of pain when you choose a tool holder.

Accuracy, Rigidity, and Versatility are the priority choices when you choose a suitable tool holder:

Accuracy: Tools's tolerance should be keep the minimum tolerance as much as possible. Tool holders can influence radial runout, concentricity, and axial alignment.

Rigidity: a good performance in rigid can help the toolholder keep stability during cutting, preventing tool deflection and chatter, preventing damage to the tool and workpiece.

Versatility: Toolholders with the capabilities of quick changeouts of various cutting tools can improve productivity.

Toolholder Tips You Should Know

Torque: The toolholder can transmit torque from the machine's spindle to the cutting tool.

Radial Runout: also called concentricity. It is crucial for getting highly precise machining results. Make sure your cutting tools are in alignment.

Dampening: Toolholders with dampening capabilities absorb and dissipate vibrations during cutting which reduces chatter and improves surface finish. Unpredictable vibrations can lead to poor surface finish and damage your tools.

High-Speed Capabilities: work with fast speed but without compromising stability enable faster cutting rates without compromising accuracy.

Types of tool holders:

Kennametal’s HydroForce™: HydroForce is a hydraulic chuck that offers the highest accuracy, and clamping forces, and provides excellent dampening qualities.

Hydraulic Chucks: Through hydraulic pressure to tighten the tool securely, hydraulic chucks are especially effective at dampening vibrations and absorbing cutting forces during machining.

High-Performance Milling Chucks (HPMC) or Milling Chucks

Shrink Fit Holders: With high clamping forces, low tool deflection, and stability at longer tool lengths, shrink-fit tool holders offer a good surface finish during higher feed milling applications.

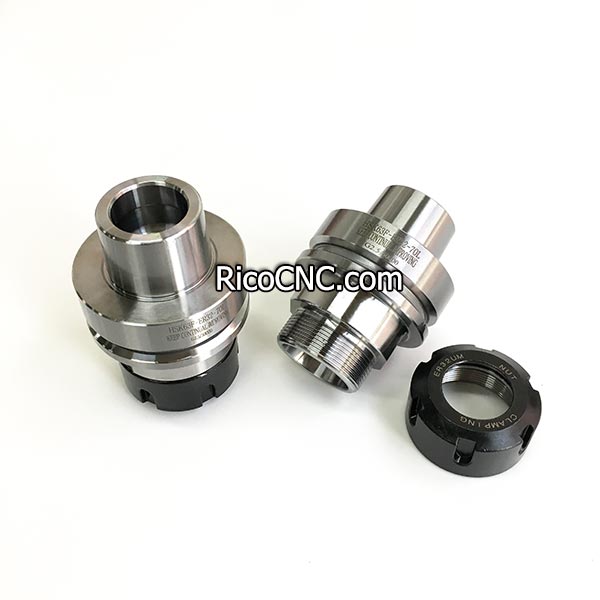

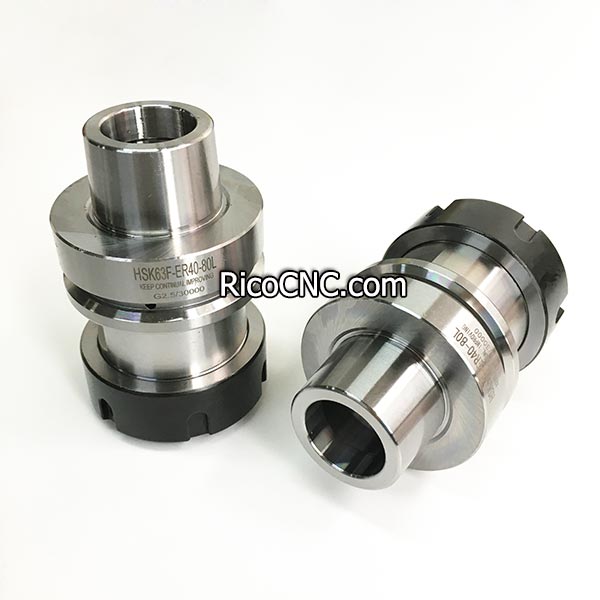

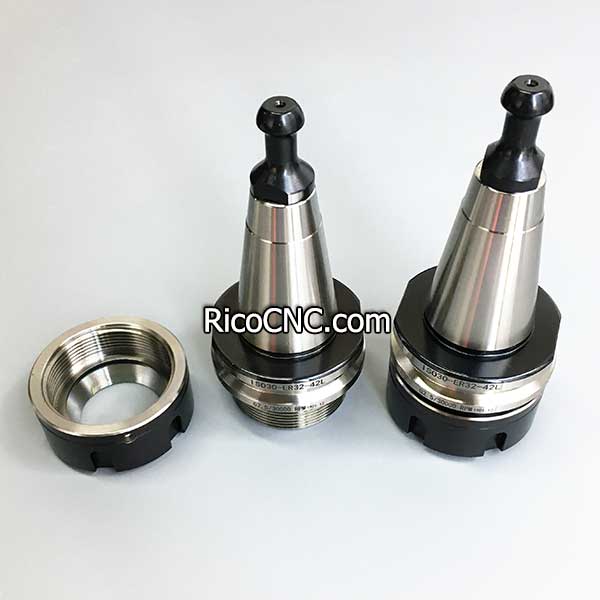

ER Collets chucks: Widely used for holding round shank cutting tools, ER Collets are known for their good gripping strength and flexibility for light-medium duty drilling, milling, and tapping. They are available in different sizes and can be identified with codes such as ER32 or ER40, we usually use this kind of tool holder.

No matter which tool holder chuck you choose, investing in high-quality tool holders will improve your machining processes and lead to superior outcomes.
