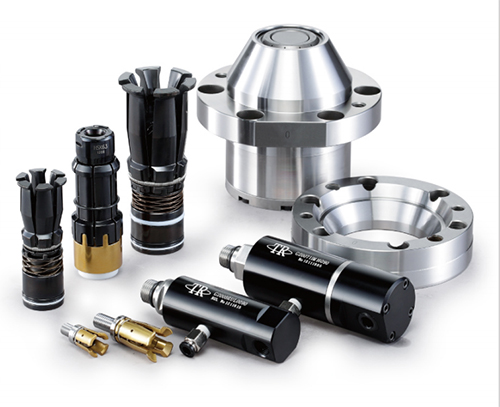

ACROW accessories.jpg

As a professional CNC machining center parts manufacturer, ACROW offers a wide range of standardized pull stud clamping units for different machine interfaces and machining needs. Its products are known for high precision, strong wear resistance and stable clamping, and are widely used in precision manufacturing fields. ACROW has a complete line of the spindle grippers: MAS403(BT) / DIN69872(DIN) / ANSI(CAT) / OTT / HSK / ISO. Below is the classification of each model:

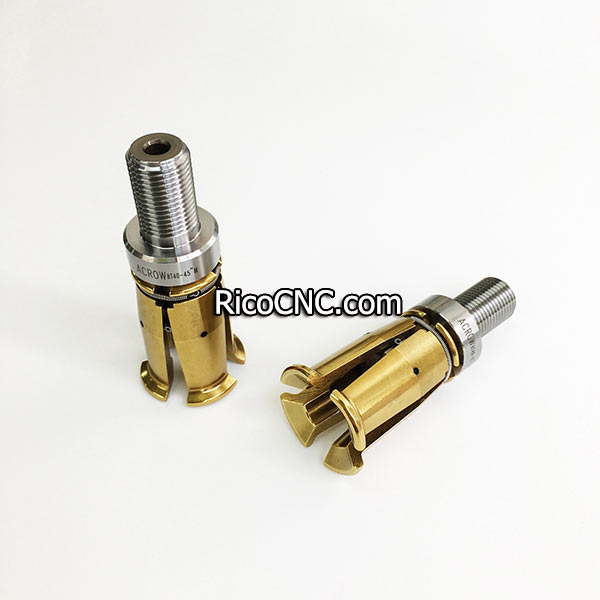

9106H-03 acrow gripper.jpg

MAS403 BT Pull Stud Type Clamping Unit

This type pull stud gripper have the held position function and automatic position function

held position function		automatic position function
Order No.	Part No.	Order No.	Part No.
9106H-41	BT30-45°	9106-41	BT30-45°
9106H-42	BT30-60°	9106-42	BT30-60°
9106H-03	BT40-45°	9106-03	BT40-45°
9106H-06	BT40-60°	9106-06	BT40-60°
9106H-08	BT40-90°	9106-08	BT40-90°
9106H-21	BT50-45°	9106-21	BT50-45°
9106H-25	BT50-60°	9106-25	BT50-60°
9106H-26	BT50-90°	9106-26	BT50-90°
9106H-66	BT60-60°

Also have the update higher grip force model:

Order No.	Part No.
9106V-41	ВТ30-45°
9106V-42	BT30-60°
9106V-03	ВТ40-45°
9106V-06	BT40-60°
9106V-21	ВТ50-45°
9106V-25	BT50-60°

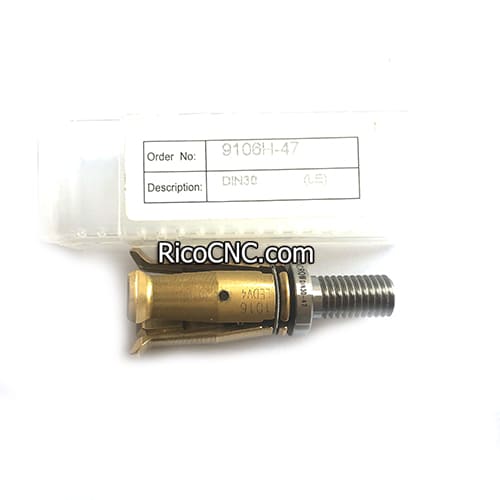

9106H-47 DIN30 gripper.jpg

DIN69872 Pull Stud Type Clamping

held position function		automatic position function
Order No.	Part No.	Order No.	Part No.
9106H-47	DIN30	9106-47	DIN30
9106H-07	DIN40	9106-07	DIN40
9106H-27	DIN50	9106-27	DIN50
9106H-67	DIN60

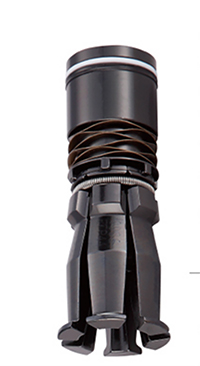

BT high grip force.jpg

Also have the update higher grip force model:

Order No.	Part No.
9106V-07	DIN40
9106V-27	DIN50

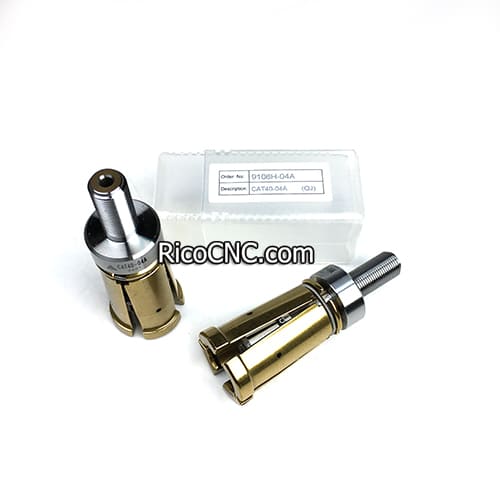

9106H-04A gripper.jpg

CAT Pull Stud Type Clamping

held position function		automatic position function
Order No.	Part No.	Order No.	Part No.
9106H-44	CAT30	9106-44	CAT30
9106H-04	CAT40	9106-04	CAT40
9106H-24	CAT50	9106-24	CAT50

9106H-44	CAT30-44
9106H-04	CAT40-04
9106H-04A	CAT40-04A
9106H-24	CAT50-24
9106H-04C	CAT40-04C
9106H-04D	CAT40-04D
9106H-04F	CAT40-04F

BT high grip force.jpg

Also have the update higher grip force model:

Order No.	Part No.
9106V-04	CAT40
9106V-24	CAT50

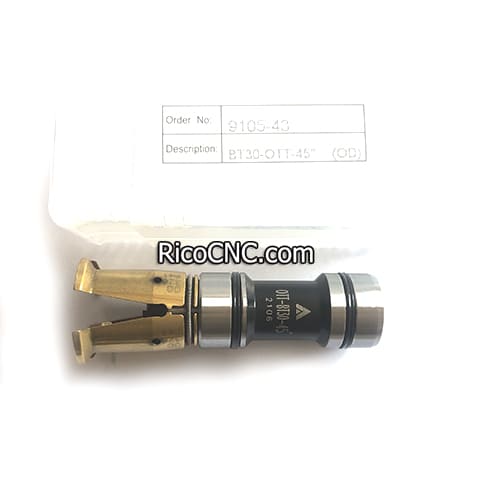

9105-43 ВТ30-OTT-45°.jpg

OTT Pull Stud Type Clamping

Order No.	Part No.
9105-43	ВТ30-45°
9105-03	BT40-45°
9105-06	BT40-60°
9105-08	BT40-90°
9105-23	BT50-45°
9105-25	BT50-60°
9105-26	BT50-90°
9105-04	CAT40
9105-24	CAT50
9105-07	DIN40
9105-27	DIN50

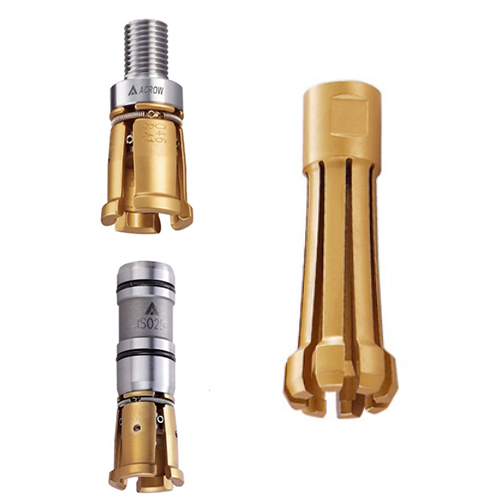

ISO gripper ACROW.jpg

ISO Pull Stud Type Clamping (High Speed)

Order No.	Part No.
9106H-64	ISO-25
9106H-64C	ISO-25
9106-63	ISO-20
9106-64	ISO-25

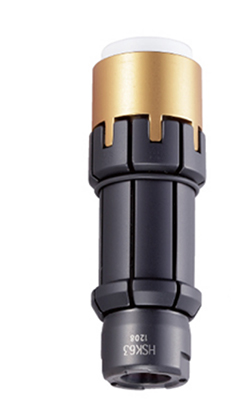

HSK gripper acrow.jpg

HSK Clamping Units

Order No.	Part No.
9106H-32	HSK32
9106H-40	HSK40
9106H-50	HSK50
9106H-63	HSK63
9106H-80	HSK80
9106H-100	HSK100

RicoCNC supplies ACROW brand CNC gripper with very competitive price, beside this brand, we also supply Bright brand, Chumpower brand, Royal Brand, Doosan Brand, Riken Seiki Brand, Berg Brand, OTT Jacob brand, etc. Contact us for more information.
