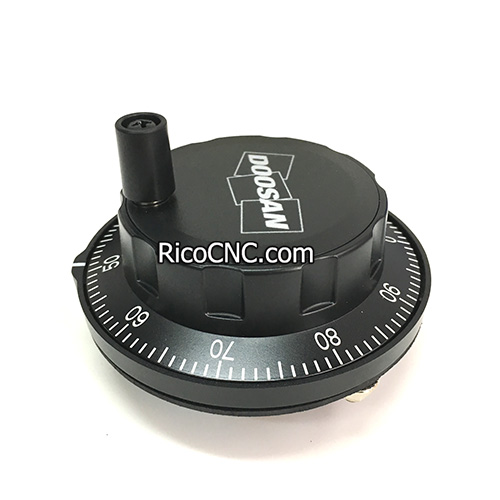

RIM-80-0100-BVA Encoder.jpg

Kwangwoo Manual Encoder Wheel RIM-80-0100-BVA for DOOSAN Machines



This Encoder is made from Kwangwoo, for Doosan CNC machines. Model number is RIM-80-0100-BVA. Used for Doosan Machine PUMA V8300R ,  MT0049-000072, Hyundai machine model KIT400 YEAR 2009-2010

Now it can replace the below part:

300632-00075, 300632-00182, 300632-00121, 300632-00182

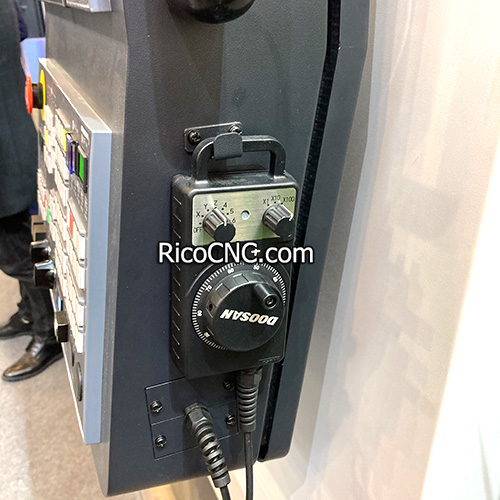

Kwangwoo Manual Encoder Wheel.jpg

RIM80-0100-BVA DOOSAN features:

• Long Life

• High Reliability

• Customized logo can be attached

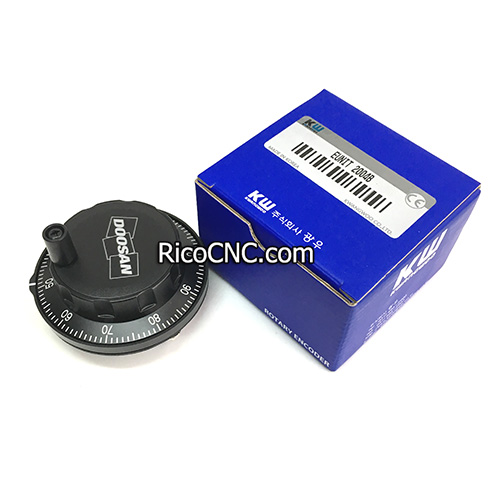

Encoder for Doosan.jpg

Application

• CNC Machine

• CNC Milling machine

• Industrial use

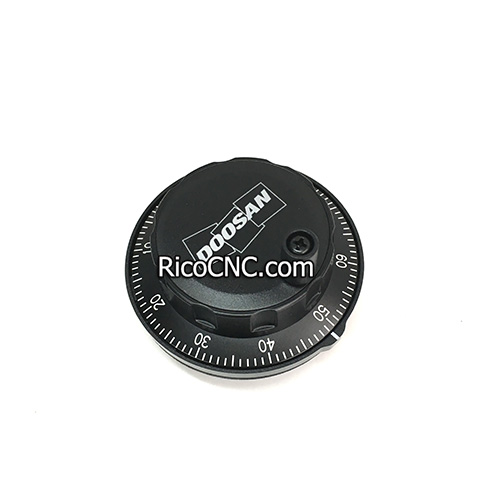

RIM-80-0100BVA DOOSAN.jpg

Electrical Specifications

Resolution

100 P/R

Supply Voltage

DC + 5

Current Consumption

2 Type

2D Type

60 mA

150 mA

Output Voltage



H

Over 2.5V

L

Under 0.5V

Max. Frequency Response

11 kHz Max.

Output Mode

Voltage

Line Driver

Open Collector

Mechanical Specifications


Maximum Rotational Speed

600 RPM


Starting Torque

0.2 ~ 0.6gf. cm


Weight

10 g f.cm3 Max.


Maximum Shaft Load

Radial

1 kg Max.


Axial

1 kg Max.


Vibration Resistance

10 ~ 55Hz / 1.5mm


Shock Resistance

50G, 11msec


Operating Temperature Range

2 Type

-10°C ~ +60°C


2D Type

0°C ~ +60°C


Storage Temperature Range

-30°C ~ +80°C


KWANGWOO RIM-80-0100BVA Handwheel.jpg


RicoCNC also can supply other encoder and hand wheel.

 RIM-80-0100-BVA Doosan for Kwangwoo.jpg

Welcome to contact us if any inquires!
