CNC Tool Clips HSK63F Toolholder Forks for Tool Changer Replacement
CNC tool clips also are named toolholder forks, tool holder gripper, tool forks, plastic tool holder, tool holder cradle, tool holder fingers, tool holder claw, tool Holder clamp, they are all means the holder clip for auto tool changer tool station.
As there are many types of CNC tool holders, so there are a lot of toolholder clips accordingly.
How to select the correct toolholder fork for your CNC machine? There are mainly 4 different categories tool holders, ISO/SK toolholers, HSK tool holders, BT tool holder and CAT tool holders. Each category tool holder have a lot of series, so should choose the tool clips according to the tool holder model.
If you are finding replacement tool holder forks, just send us the picture of your toolholder fork, and tell the machine brand or tool holder model, then we can supply you the right tool holder clip.

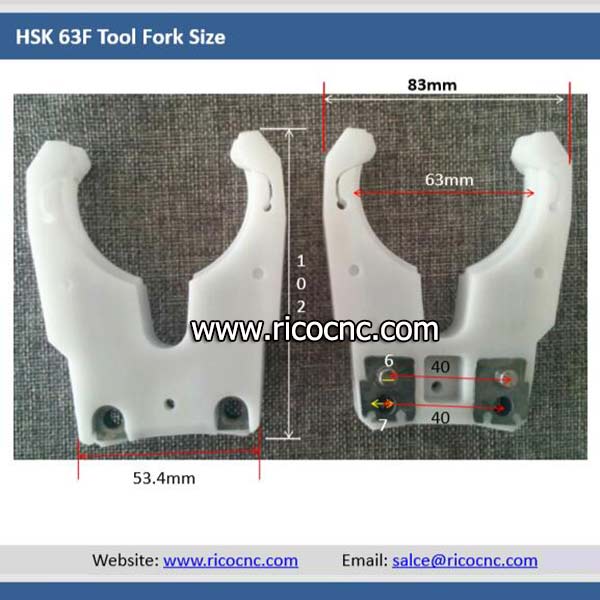

This HSK 63F tool clip is widely used with HSK63F tool holder and toolchangers. It is widely used with auto tool changer CNC routers and industrial CNC robotics. These CNCs spindle always with auto tool changer, to achieve complex milling, usually use different tools. If tools have to be changed often, a tool changer is a must. The CNC router or CNC robot then automatically changes tool and can continue to work autonomously.
These tool changer grippers are used on Biesse, CNT Motion, CR Onsrud, DMS, Flexicam, Multicam, COSMEC, Northwood, Techno, Laguna, Thermwood, Bulleri, KUKA, YASKAWA, FANUC, KDT, Excitech, Nanxing, and Chinese ATC CNC routers etc with HSK63F tool holders. These HSK 63F tool holder clips are exact interchange tool holder grippers, called router cradles.
HSK63F Tool Clips Specifications:
1. Made in China, famous brand
2. Imported USA Dupont white plastic material, high quality, reinforced and anti-explosion.
3. The tool holder clips are resistant to the temperature changes and maintain very precise clutch tolerance.
4. Alloy steel block casting inside, reinforced structure, has high loading capacity, also with steel positioning pins.
4. Dynamic balance grade: G2.5, 30000rpm
5. Yaw precision: 0.005mm
6. Loading capacity: 8-10kgs
7. Last more than 60,000 times tool changing cycles. We have tested.
8. Same material as Italy fork used. Outlook is up to 95% same as Italy made. Life time can up to more than 90% of Italy made.
HSK 63F plastic clips are available in stock for quick delivery.
Only high quality provide here, so re-orders comes.
We export over ten thousands cnc tool holder forks to a lot of countries every year.
RicoCNC supplies high-quality cnc tools and accessories; ISO30, BT30, HSK63F tool holders; CNC router tool holder grippers for many automatic tool exchangers.
We are able to help you order the correct ATC gripper fingers for your ATC unit. Buy the new tool holder forks and replace your broken and worn units.
Rico CNC can supply a line for CNC tool holder forks for auto tool changer like ISO series, HSK series, BT series, SK series, etc.
Available CNC Tool Holder Clip Forks
For ISO/SK Tool Holders
For HSK Tool Holders
For BT Tool Holders
For CAT Tool Holders
