70x18x25 Top Flat Pressure Rollers with Countersunk for IMA OTT Brandt Edgebanders

70x18x25 Top Flat Pressure Rollers with Countersunk for IMA OTT Brandt Edgebanders

• 70x18x25mm top pressure roller for Brandt KDF440
• Flat pressure rollers 70x18x25mm with countersink
• EB.IM.80.60.27 pressure roller 00040516 for IMA edgebander
• Solid tracking Pressure roller with countersink 70 x 18 x 25
• Hold down rollers Spare top pressure wheel for Brandt
• Edgebander pressure roller 40000304 for OTT machine
• Feed rollers for Holz-Her edgebanders 70-24-18mm
• 70x18x25 pressure rollers smooth type with countersunk
INQUIRY

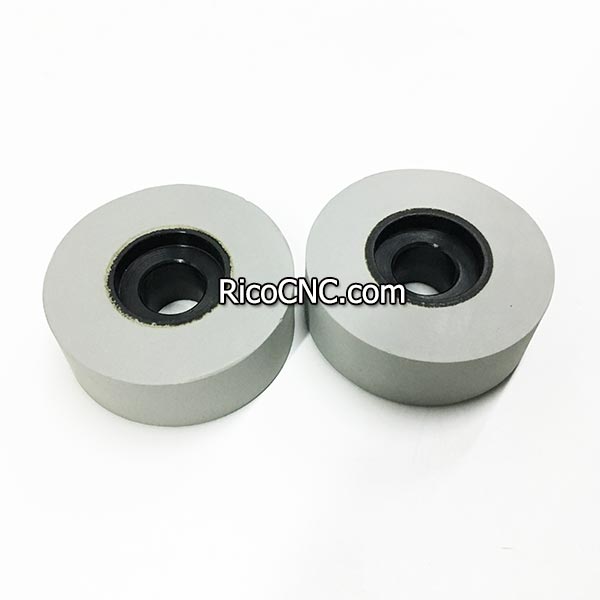

70x18x25mm roller.jpg

70x18x25 Top Flat Pressure Rollers with Countersunk for IMA OTT Brandt Edgebanders

This hold down rollers are the top pressure wheel for IMA & BRANDT & OTT & Holz-Her edgebanders& Brandt KDF440. IMA machine code EB.IM.80.60.27. It is the flat upper pressure feed roller 70x18x25mm (solid tracking) with countersink. Smooth pressure roller with a recess for the bolt of the Brandt edgebander.

IMA article 00040516, OTT article 40000304

Edgebander Pressure Roller 70x18x25mm with Countersink Parameters:
Smooth flat pressure roller without bearing (solid tracking)
Outer diameter = 70 mm
Inner diameter = 18 mm
Height/Width = 25 mm
Countersink type, countersink diameter 30mm, depth 5.4mm
Widely used the IMA ADVANTAGE, Homag Brandt FC1440, OTT and Holz-Her edgebander machines.

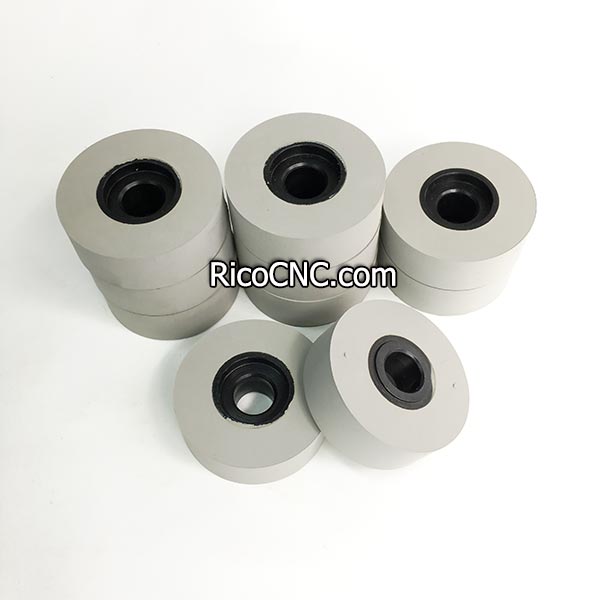

pressure wheels for Brandt.jpg

Conveyor track pads for IMA, Brandt edgebanders also are available here.


RicoCNC supplies a range of edgebander machine replacements such as pressure roller, track pads, buffing wheels, support rollers, trimming cuttings, inserts knives for Homag Brandt, Biesse, IMA, SCM, Holz-Her, OTT, KDT, Laguna, Nanxing, etc.
