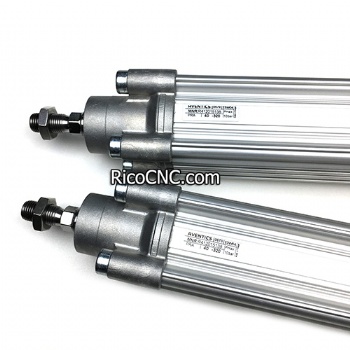

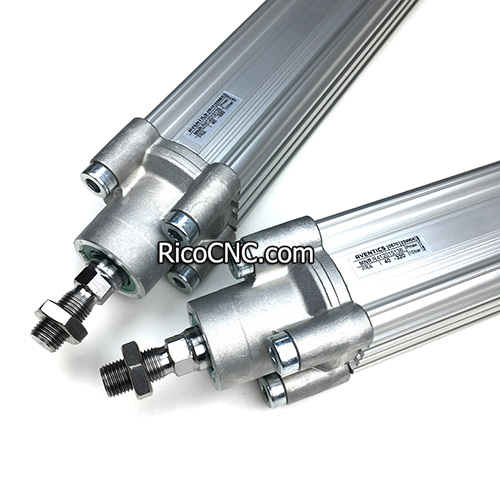

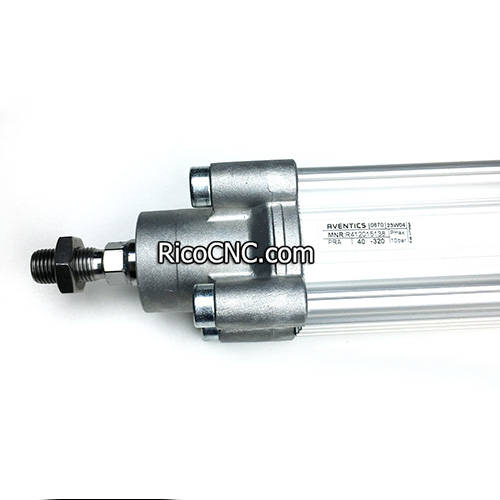

This is Aventics ISO Profile-Style Cylinder, 40mm Bore x 320mm Stroke, Metric Threads, Cushions, Magnet Piston, Single Rod, Male Thread, PUR Seals, PUR Fixed Scraper, Basic. Part number is R412015138, PRA series 0822121009. Usually used for Homag KAL / KFL / Ambition, Homag part number is 4-035-01-0054 or 4035010054.


R412015138 cylinder Features

• 6 mm T-slots and 4 mm C-slots allow for a large number of sensors to be mounted easily, quickly and compactly

• Available in piston diameters from 32 mm to 125 mm

• Modular sealing system allows for adaptability

• Advanced pneumatic end position cushioning

• Additional elastic damping elements

• Wide range of variants and accessories available in the configurator

R412015138 Aventics 40 x 320 Profile Cylinder.jpg

Pneumatic cylinder.jpg

PRA series 0822121009 Specification:

Standards

ISO 15552

Piston Ø

40 mm

Stroke

320 mm

Functional principle

Double-acting

Cushioning

Pneumatic adjustable cushioning

Magnetic piston

Piston with magnet

Environmental requirements

Industry standard, ATEX optional

Piston rod

single

Scraper

Standard Industry Scraper

Pressure for determining piston forces

6,3 bar

Retracting piston force

660 N

Extracting piston force

790 N

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Working pressure min.

1.5 bar

Working pressure max

10 bar

Ports

G 1/4

Piston rod thread

M12x1,25

Cushioning length

19 mm

Cushioning energy

9 J

Weight 0 mm stroke

0.65 kg

Weight +10 mm stroke

0.032 kg

Stroke max.

1900 mm

Medium

Compressed air

Min. medium temperature

-20 °C

PRA series 0822121009.jpg


RicoCNC also can supply other models such as:

4035010011 Aventics 0822122004 Air Cylinder

4035010016 Aventics 0822350003 Air Cylinder

4035010054 Air Cylinder 0822121009

4035010234 Air Cylinder 0822334503

Profile cylinder ISO 15552.jpg
