4-008-40-0168 4008400168 Adhesive Level Sensor C-505 PEEK for Glue Unit QM Brandt KDX 6-900

4-008-40-0168 4008400168 Adhesive Level Sensor C-505 PEEK for Glue Unit QM Brandt KDX 6-900

• 4-008-40-0168 C-505 peek
• 4008400168 Adhesive Level Sensor
• Adhesive Level Sensor C-505 PEEK
• Glue level Sensor C505 PEEK
• Glue level sensor PROBE C-505 PEEK
• Glue level sensor 4008400168 C-505 PEEK R780 NKR782 KDF550 KDF540
• Homag sensor
• Edge banding machine sensor
INQUIRY

4-008-40-0168 4008400168 Adhesive Level Sensor C-505 PEEK for Glue Unit QM Brandt KDX 6-900

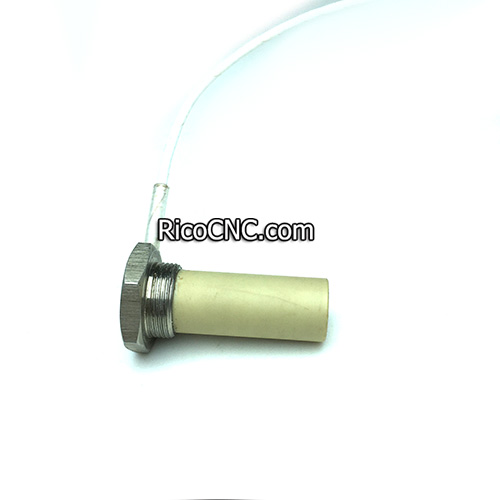

This is a probe adhesive level sensor C-505 Peek, it is used for Homag edge banding Machine R780 NKR782 KDF550 KDF540 glue pot QM. Homag part number is 4-008-40-0168 4008400168.

4008400168 Adhesive Level Sensor.jpg

Housing	PEEK and brass (nickel-plated)
Protection class	IP65 according to EN 60529
Permissible ambient temperature	0°C to +250°C
Connection type	Shielded PTFE cable with connector
Cable length	0.9 m

Adhesive Level Sensor C-505 PEEK.jpg

4-008-40-0168 C-505 peek Level control of:

• Waxing

• Hotmelt adhesives

• varnishes

• granulates

• chemicals

• and many others

Glue level Sensor C505 PEEK.jpg

4008400168 Adhesive Level Sensor Mounting instructions

The probe is to be operated only in conjunction with the instrument, type CNS-505 / CNS-505-1.

The probe cable must not be laid parallel to drive lines.

Glue level sensor PROBE C-505 PEEK.jpg

Adhesive Level Sensor C-505 PEEK Operation

The application range covers liquid as well as solid media up to temperatures of 250°C. During the functional test (adjustment), it is essential to ensure that the test is only carried out with the medium that is actually to be sampled. The optimum switching point is 5-10 mm above the bottom of the probe The switching point must be set to this level.
