Pneumatic Cylinder 4035010641 4-035-01-0641 Series MNI EMERSON AVENTICS 0822332504 for KAL310

Pneumatic Cylinder 4035010641 4-035-01-0641 Series MNI EMERSON AVENTICS 0822332504 for KAL310

• 4-035-01-0641 Cylinder
• 4035010641 Pneumatic Cylinder
• EMERSON AVENTICS 0822332504
• CYLINDER ISO 6432 MINI D=16 STROKE= 80 M 5
• Series MNI Mini Pneumatic Cylinder
• Homag Pneumatic cylinder
INQUIRY

Pneumatic Cylinder 4035010641 4-035-01-0641 Series MNI EMERSON AVENTICS 0822332504 for KAL310

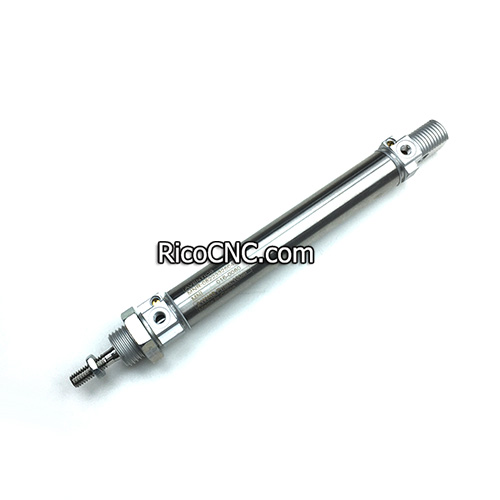

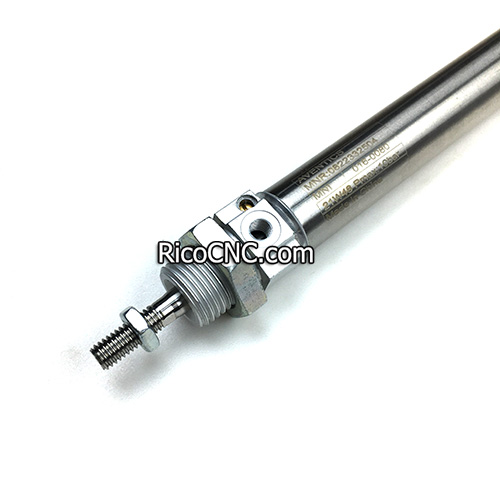

This is a EMERSON AVENTICS 0822332504 cylinder, it is 16mm Bore x 80mm Stroke, M5 Port Connection, Series MNI Mini Pneumatic Cylinder MNI-DA-16-0080-D-31-01-1-00-000-00, Homag part number is 4035010641 or 4-035-01-0641.

4035010641 Pneumatic Cylinder.jpg

4035010641 Pneumatic Cylinder technical data:

Weight	0.135 kg
Cushioning	pneumatically
Pneumatic port	M5
Stroke	80 mm
Piston diameter	16 mm
Piston rod thread	M6
Ambient Temperature Max	80DegC
Ambient Temperature Min	-25DegC
Acting principle	Double Acting
Working Pressure Max	10 Bar
Working Pressure Min	1 Bar
