4-011-04-1486 4011041486 Directional Valve 5725650220 with Coil Series CO1 5420507022

4-011-04-1486 4011041486 Directional Valve 5725650220 with Coil Series CO1 5420507022

• 4-011-04-1486 solenoid valve
• 4011041486 Directional Valve
• Directional Valve 5725650220
• 5/3-WAY VALVE ELECTRICAL CD12 G1/2 3-10 BAR
• AVENTICS – 5725650220
• Replace BOSCH 0820033990
• CD12-5/3CC-SR-024DC-I-G012-G012-EN175301
• 5/3-directional valve
INQUIRY

4-011-04-1486 4011041486 Directional Valve 5725650220 with Coil Series CO1 5420507022

This is AVENTICS 5725650220 5/3-WAY VALVE ELECTRICAL CD12 G1/2 3-10 BAR, Solenoid-Operated Air Control Valve - 5 Port, 3 Position, Double Solenoid With AVENTICS Coil, Series CO1 5420507022, now replace the BOSCH 0820033990. It can be used as Brandt / Homag / Weeke solenoid valve, part number is 4-011-04-1486 or 4011041486.

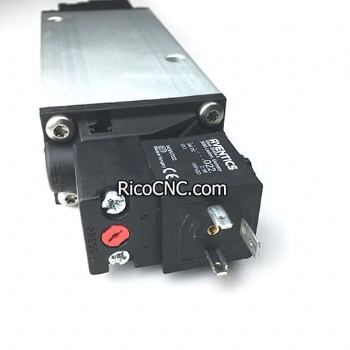

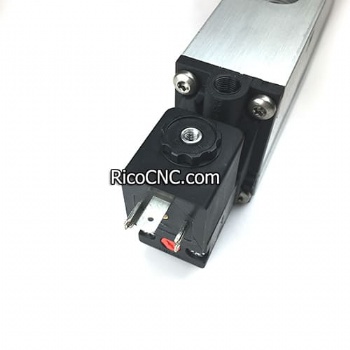

Directional Valve 5725650220.jpg

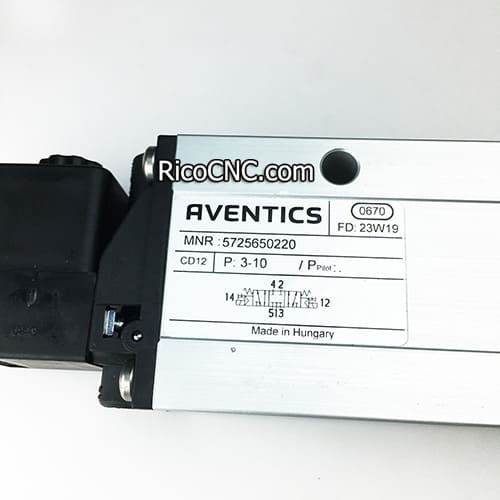

AVENTICS – 5725650220.jpg

4-011-04-1486 4011041486 Directional Valve 5725650220 specification:

Flow Direction	4-Way
Flow Rate	134.20 cfm
Manual Operation Type	Locking, Locking
Maximum Operating Pressure	145 psi, 145 psi
Number of Ports	5, 5
Number of Positions	3
Number of Solenoids	Double
Operating Medium	Air
Operating Temperature Range	5 to 122 °F, 5 to 122 °F
Seal Material	Rubber, Polyurethane
Solenoid Electrical Entry	M8 Connector
Solenoid Supply Voltage	24 V dc
