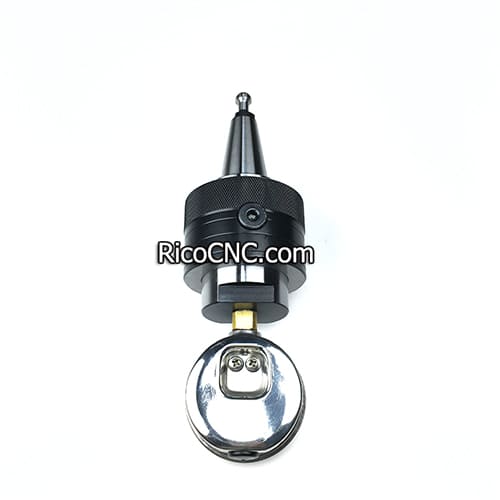

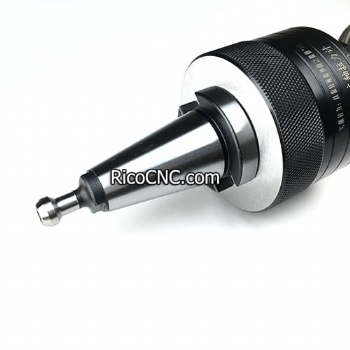

Force Test Gauge BT30 Spindle Tension Meter Gauge for CNC machine
This is a spindle rally tester for BT30 Spindle, The spindle tensiometer is an instrument used to measure the amount of pulling force on tie rods. Tie-bar pull is very important for evaluating the quality of a machine. It is a simple and convenient hydraulic test instrument to check whether the spindle pulling force is depleted or not, and to stabilize the spindle of the machine.
Spindle tension gauge Features:
1. High stability, hydraulic mechanical structure
2. For spindle test
3. models: BT30,BT40, BT50
4. In order to ensure the correctness of the measured data, the tension meter must be used in the case of pre-tensioning.
Spindle tension gauge specifications:
| Model | Measurement Range | Reference tension Range |
| BT30 | 0-150kg/cm2 | 200-500kg |
| BT40 | 0-150kg/cm2 | 500-1100kg |
| BT50 | 0-650kg/cm2 | 1500-2200kg |
Rico also can supply BT40 spindle tension meter and BT50 spindle tension gauge.
