4086050347 4-086-05-0347 BUS Module BK5120-0100-H CANOPEN Homag

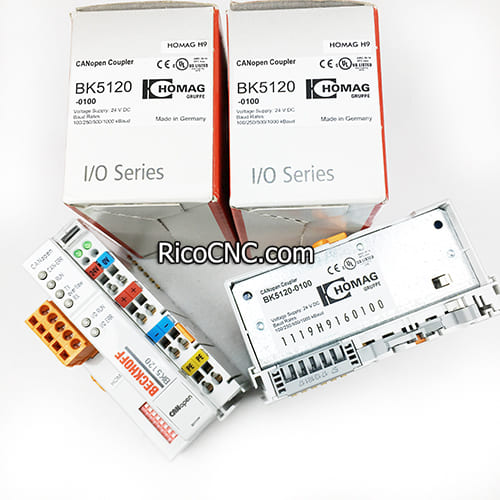

This is a bus module made from Beckhoff, the bus coupler model number is BK5120 series, BK5120-0100-H is special for HOMAG machine, the HOMAG part number is 4086050347 or 4-086-05-0347.

4086050347 module.jpg

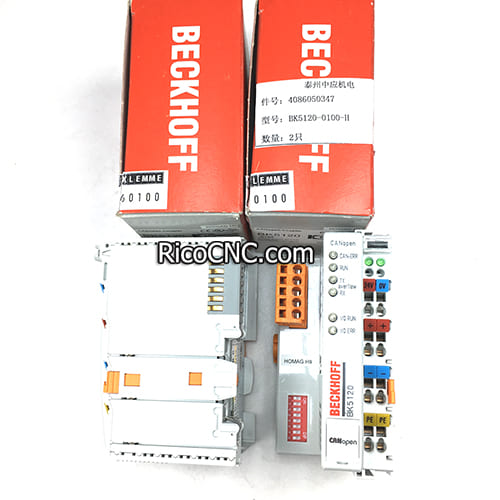

Beckhoff bus coupler BK5120-0100-H.jpg

4086050347 bus coupler BK5120-0100-H technical data:

Dimensions (W x H x D)51 mm x 100 mm x 69 mm
Side by side mounting by means ofdouble slot and key connection
Number of Bus Terminals64 (255 with K-bus extension)
Max. number of bytes fieldbus16 Tx/Rx PDOs
Digital peripheral signals960 inputs/outputs
Analog peripheral signals60 inputs/outputs
Configuration possibilityvia KS2000 or the controller
Number of PDOs (CANopen)16 Tx/16 Rx
Additional CANopen featureslife, node guarding, emergency object, variable mapping, store/restore
Data transfer ratesup to 1 Mbaud
Bus interface1 x open style connector, 5-pin, included
Data transfer mediumscreened, twisted copper cable, 2 x signal, 1 x ground (recommended)
Power supply24 V DC (-15%/+20%)
Input current70 mA + (total K-bus current)/4, 500 mA max.
Starting currentapprox. 2.5 x continuous current
Recommended fuse≤ 10 A
Current supply K-bus1750 mA
Power contactsmax. 24 V DC/max. 10 A
Electrical isolation500 V (power contact/supply voltage Bus Coupler)
PDO modessynchron, cyclic, event driven, polling
Weightapprox. 150 g
Operating/storage temperature-25…+60°C/-40…+85°C
Relative humidity95%, no condensation

Beckhoff EtherCAT.jpg

BUSMODUL CAN OPEN-KOPPLER.jpg

Rico can supply various bus module from Bechhoff :

Beckhoff EL1252 EtherCAT 2-channel Digital Input Terminal with Timestamp

Beckhoff EtherCAT Terminal EL6751 with Master Slave Terminal for CANopen

Brand New BECKHOFF KL2541 Stepper Motor Bus Terminal

EL9011 EtherCAT Beckhoff Bus End Cover for E-bus Contacts

4086050497 PLC Module 4-086-05-0497 Relay KL4001 for HOMAG

Homag 4086050463 Beckhoff KL2408 8-channel Digital Output Bus Terminal Module

Homag 4-086-05-0462 Beckhoff KL1408 Digital Input Terminal 8-Channel Automation Module

Homag 4-086-05-0351 BECKHOFF KL9100 Power Supply Module 24 DV Bus Terminal

Homag 4-086-05-0628 Beckhoff BK1250 EtherCAT and Bus Terminal Coupler

4086050504 Homag 4-086-05-0504 Beckhoff KL5151-0021 Incremental Encoder For Edgebanding Machine

4086050682 Beckhoff EK1100 EtherCAT Coupler Interface Modules for Homag Machine

4086050615 4-086-05-0615 Compact Bus Coupler Beckhoff BK9053-1006

4086050630 Homag 4-086-05-0630 PLC Module Beckhoff Bus Coupler EtherCAT BK1120

BECKHOFF LC8301 QSM Coupler 4-086-05-0563 Homag Control Module 4086050563

BECKHOFF EL1008 PLC Module Input Terminal

4-086-05-0353 Homag 4086050353 BECKHOFF PLC Module LC5100 Canopen Coupler

etc.

4-086-05-0347 Bus Terminals.jpgHOMAG module.jpg

Please contact Rico for more information!
