Diamond PCD Milling Head 60x25x64 Z2+2

• 60x25x64 Z2+2 RH
• 60x25x64 Z2+2 LH
• PCD cutter 60x25x64mm
• Diamond milling head 60x25x64 Z2+2
• Whisper cutter 60x25x64H
• Felder pre milling cutter
INQUIRY

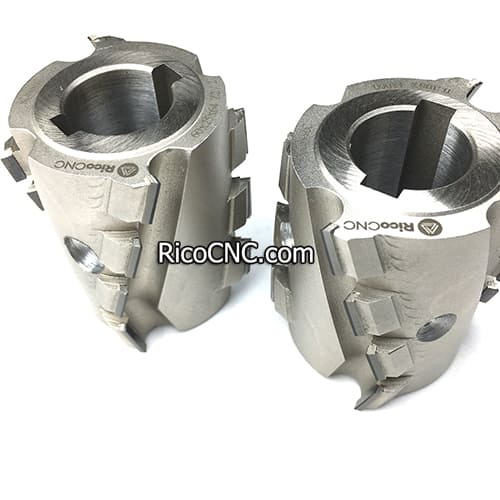

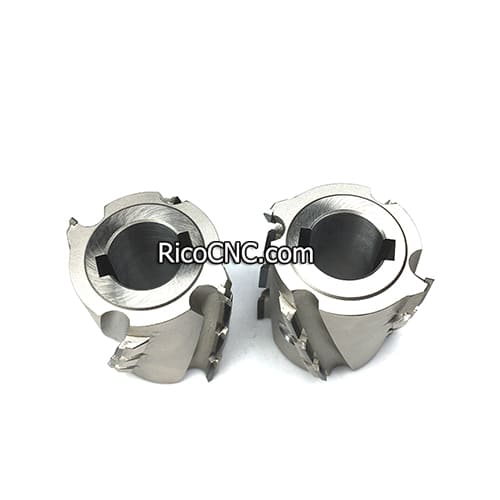

Diamond PCD Milling Head 60x25x64 Z2+2

These are diamond milling cutter heads, the size is 60x25x64 Z2+2, this size has left rotation and right rotation version, replace the ITA pre milling cutter DGM.060025064.0LA4 and DGM.060025064.0RA4.

Felder pre milling cutter.jpg

60x25x64 Z2+2 LH.jpg

60x25x64 Z2+2 specification:

Manufacturer:	RicoCNC
Cutting tool diameter:	60 mm
Inner bore hole:	25 mm
Number of teeth:	2+2
Machines:	MINIPROF, FELDER
Direction of rotation:	RH/LH
Working Depth:	64mm
Type:	Without recessing the body
PCD Blade Height:	4.5 mm
Blade angle:	30°

Whisper cutter 60x25x64H.jpg

For machines: Felder G580, Felder Perfect 710, Felder Perfect 610, Felder Perfect 812, Felder G560, Felder G680, Felder Perfect 608, Felder G320, Felder G660, Felder Perfect 70.

60x25x64 Z2+2 RH.jpg

RicoCNC can offer a range of pre mill cutter heads & spare tools for Edgebanders - Homag, Biesse, Bi-Matic, OTT, Brandt, Felder, Hebrock, SCM, Holzher, IMA, KDT, Laguna, Liga, etc.

Diamond milling head 60x25x64 Z2+2.jpg
