4035012864 4-035-01-2864 FESTO ISO Cylinder DSNU-25-400-PPV-A 35193

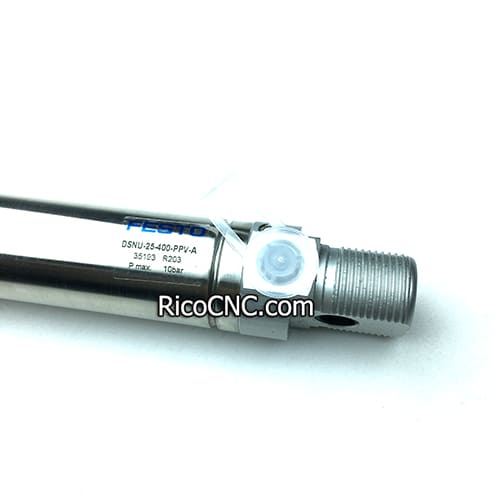

This ISO cylinder is made from FESTO, the model number is DSNU-25-400-PPV-A or 35193. It used for HOMAG machine, the Homag part number is 4035012864 or 4-035-01-2864.

4035012297 4-035-01-2297 is also the part number of the cylinder FESTO DSNU-25-400-PPV-A 35193.

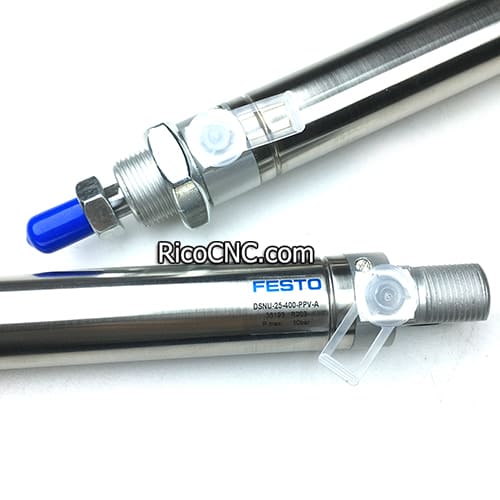

Festo 35193.jpg

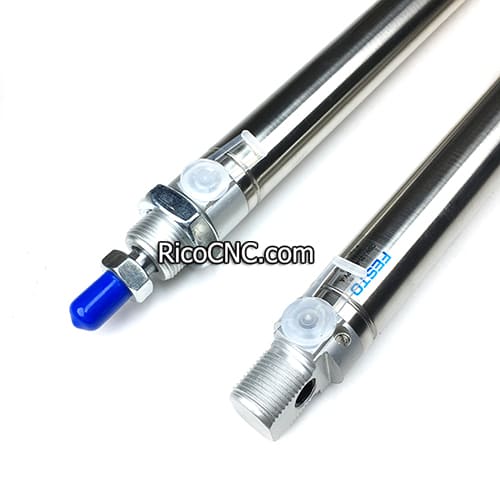

This cylinder is ISO double acting singleended pneumatic air cylinder with adjustable cushioning at both ends , built-in magnet Festo DSNU Metric series, part number #35193.

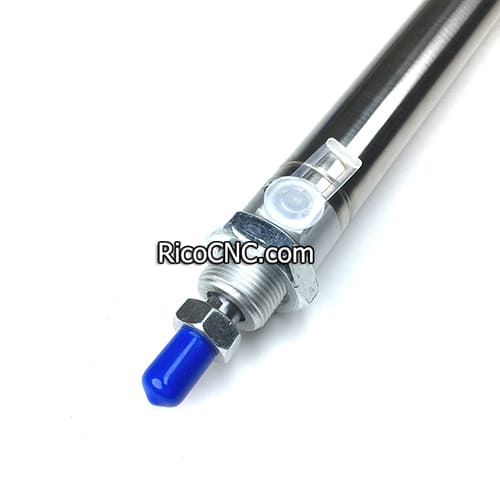

4-035-01-2864 cylinder.jpg

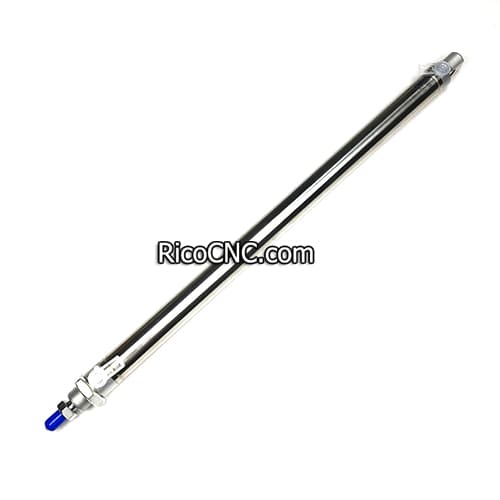

It with 25mm bore (B25mm) , 400mm stroke (S400mm) , M10x1.25 male threaded rod , 1/8" BSPP / G1/8" threaded pneumatic port, round cylindrical shape and equipped with position sensing via proximity sensr. also called DSNU25400PPVA.

4035012864 ISO cylinder specifications:

Mode of operation	Double-acting
Piston diameter	25 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	294.5 N
Stroke	400 mm
Cushioning	Pneumatic cushioning, adjustable at both ends

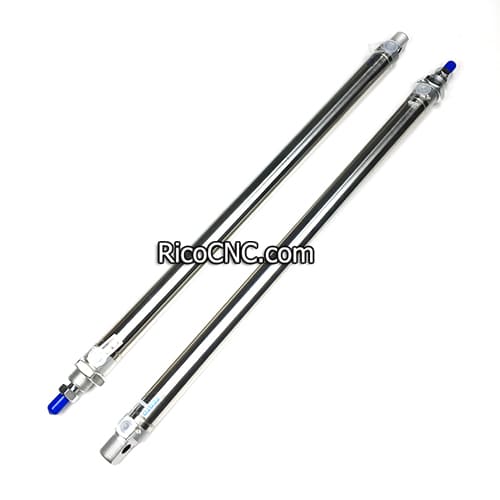

Festo cylinder.jpg
