4007011278 4-007-01-1278 Toothed belt 14 AT 5225

4007011278 4-007-01-1278 Toothed belt 14 AT 5225

• 4007011278 Belt
• DRIVE-BELT 14 AT 5/ 225
• 4-007-01-1278 Toothed belt
• Toothed belt 14 AT 5225
• AT5-225 Belt
• HOMAG Belt
• AT5-225-4 Belt
INQUIRY

4007011278 4-007-01-1278 Toothed belt 14 AT 5225

This is a Polyurethane Belt AT5 Pitch, 4mm Wide, 225mm long, used for HOMAG machine, the HOMAG part number is 4007011278 or 4-007-01-1278.

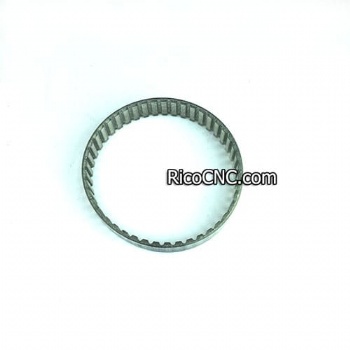

4007011278 Belt.jpg

4007011278 AT5-225-4 Belt specification:

Part Number	AT5-225-4
Profile	Metric AT
Pitch	AT5
Number of Teeth	45
Length (mm)	225
Top Belt Width per strand (mm)	4
Tensile Cord	Steel
Core Material	Polyurethane

4-007-01-1278 Belt Characteristics:

• High transmission power and long life

• Temperature range from −30 °C do +80 °C

• Resistant to oils, grease and fuel

• Wear-resistant

• Low-noise

• High flexibility

• Suitable for reverse flexing

• Maintenance-free

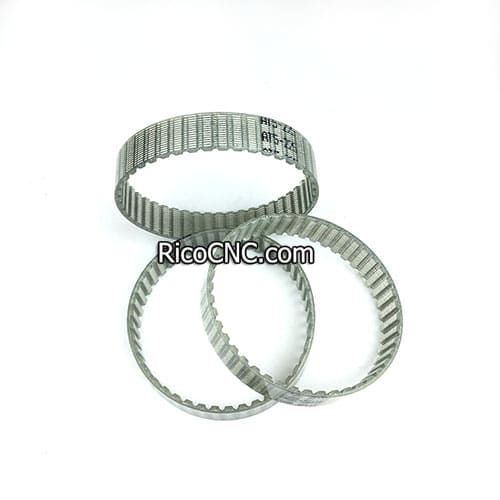

AT5-225-4 Belt.jpg

There are Homag belts can be supplied here, such as:

4-007-01-1014 Drive Belt GTMR 425-5MR-20 4007011014 Toothed Belt

4-007-01-0824 or 4007010824 PJ1092 430J Poly V Belt

4-007-10-0255 Homag 4007100255 570X15 Elastic Flat Belt

4-007-01-1160 Belt 4007011160 Drive Belt STD 1056-S8M-12 for Homag

4-007-01-0183 or 4007010183POLY V BELT J 7 L=1016

4007010200 (4-007-01-0200) also have for supply here.

4007013208 4-007-01-3208 Timing Belt STD 1056-S8M-30 for Holzma HPP HPL 300

etc.

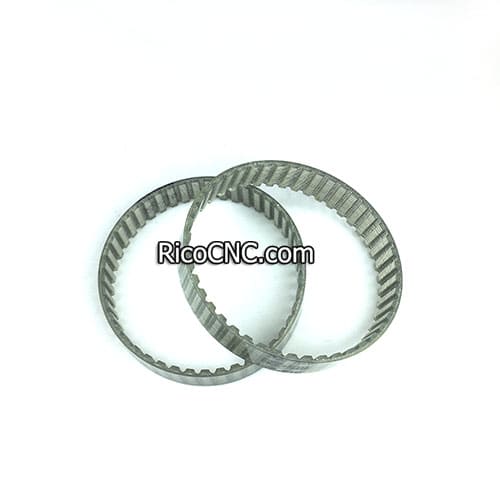

Toothed belt 14 AT 5225.jpg

RicoCNC can supply various of Homag/Brandt spare parts and other spare pars for Anderson, Biesse, Busellato, DMS, CR Onsrud, Komo Machinery, IMA, Brandt, Intermac, Laguna Tools, Morbidelli, Northwood, Weeke, SCM, Multicam, Techno, Masterwood, Felder, Holz-her, Greda Sirio, Thermwood, CNT Motion, Flexicam, etc.,

Please check our website, if you can not find, please contact us for more information!
