HOMAG 4035010341 Cylinder ISO 6432 3009260790 for PTP160

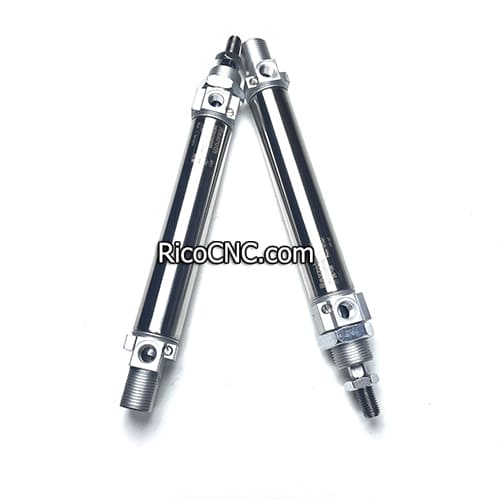

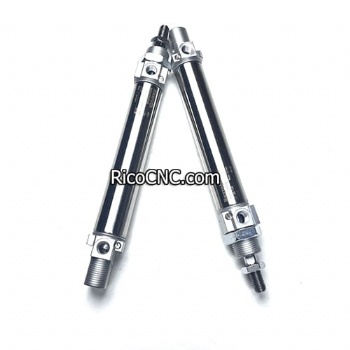

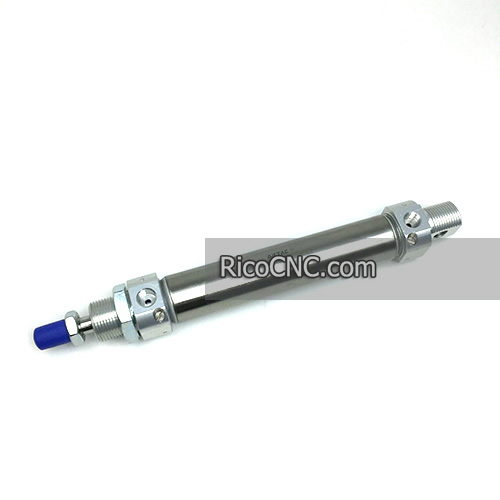

This is a mini cylinder for HOMAG PTP160, it is AVENTICS Mini cylinder, Series MNI 0822334505. It is 25x100mm, double-acting. The HOMAG part number is 4035010341 or 4-035-01-0341, also part 3009260790 or 3-009-26-0790.

AVENTICS 0822334505.jpg

CYLINDER ISO 6432 MINI D=25 HUB=100 G1 8.jpg

AVENTICS 0822334505 specifications:

Cushioningpneumatically
Pneumatic portG 1/8
Stroke100 mm
Piston diameter25 mm
Piston rod thread25, M10x1
Ambient Temperature Max80DegC
Ambient Temperature Min-25DegC
Acting principleDouble Acting
Working Pressure Max10 Bar
Working Pressure Min1 Bar



RicoCNC also can supply other models such as: 0822123001, 0822123002, 0822123003, 0822123004, 0822123005, 0822123006, 0822123007, 0822123008, 0822123009, 0822123010, 0822123011, 0822332504, 0822350003, 0822122004, 0822010637, R480058125, 0822334503, 0822033207, MI25X25SCAG, 0822010546, 0822334502.



RicoCNC can offer a wide range of various CNC spare parts and automation parts, and woodworking machine parts.
