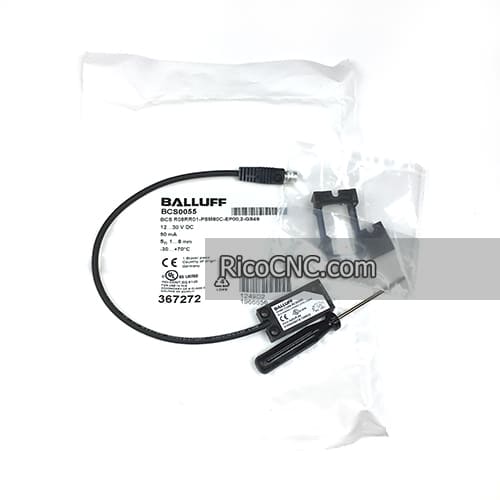

Balluff BCS0055 .jpg

BALLUFF BCS0055 Capacitance Sensor for Object Detection


This is a capacitive proximity switches sensor for object detection, made by Balluff, the model number is BCS0055, also named BCS R08RR01-PSM80C-EP00,2-GS49.

BCS R08RR01-PSM80C-EP00,2-GS49.jpg

BALLUFF BCS0055 specifications:

Dimension34 x 16 x 8 mm
SeriesR08
Installationfor flush mounting
ConnectionCable with connector, M8x1-Male, 3-pin, 0.20 m, PUR
Switching outputPNP normally open (NO)
Switching frequency100 Hz
Range1...8 mm
SensitivitySwitching distance adjustable
Housing materialPP
Material sensing surfacePP
Ambient temperature-30...70 °C
Operating voltage Ub12...30 VDC

Balluff BCS0055 Capacitance Sensor.jpg

Balluff BCS Series capacitive sensors .jpg

BCS R08RR01-PSM80C-EP00,2-GS49 Features:

• Offers high tightening torques

• Higher sensing ranges on non-conductive materials

• Proven in demanding environments such as foods, plastics, specialty machines as well as the lumber and furniture industry

• Outstanding chemical resistance

• For level detection of aggressive and caustic media such as acids, bases, and solvents

• Proven in the semiconductor and food industries, as well as the medical and industrial

manufacturing industries

• Quick, cost-effective mounting, n(e.g. on container walls or pipes)

• Flexible housing adapts to almost any curved and uneven surface

• For ambient temperatures up to 480 ?F (250 ?C)

• Suitable for level sensing (e.g. granulates, epoxy resins, and for object detection of materials in elevated temperature environments such as glass tempering)

Balluff R08 series.jpg

Benefits of Capacitive sensors for object detection benefits

• Capacitive sensors in plastic and stainless steel versions for detecting media with a low dielectric constant over long distances

• In compact configurations from 65mm and flat configurations such as disc configurations with switching distances of up to 25mm

• Flush mountable and adjustable via potentiometer or cable

• IO-Link available

Capacitive proximity switches for object detection.jpg

RicoCNC is a reliable CNC and industrial automation spare parts supplier based in China. You can find a number of CNC machine parts here, such as CNC tool holders, collets, nuts, pull stud, collet spanner, toolholder tightening fixture, cnc tooling systems, tool holder forks, CNC machining center parts and edge banding machine parts.

Capacitive sensors BCS0055.jpg

Please contact Rico for more information!
