YASKAWA SGM7G-13AFC6C Rotary Servomotor

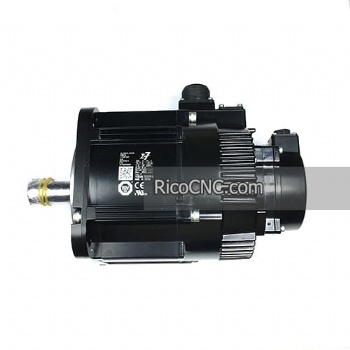

This is a Yaskawa sigma 5 servo motor, the model number is SGM7G-13AFC6C.

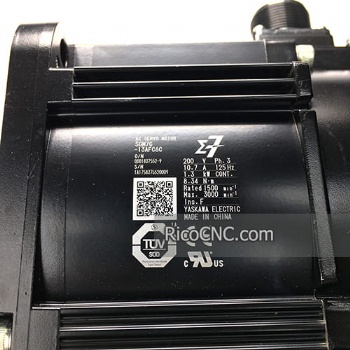

YASKAWA servo motor SGM7G-13AFC6C specifications:
| Input power supply | 200 V |
| Rated output | 1.3 kW |
| Shaft end | Straight with key and tap |
| Encoder resolution | 24 bit |
| Encoder type | Incremental |
| Options | With holding brake (24 VDC) |
| Height | 169 mm |
| Width | 130 mm |
| Depth | 247 mm |
| Allowable Load Moment of Inertia | 5 Times |
| Rated torque | 8.34 Nm |
| Instantaneous maximum torque | 23.3 Nm |
| Rated Motor Speed | 1500 1/min |
| Maximum motor speed | 3000 1/min |
| Motor Moment of Inertia | 22 x10⁻⁴ kg·m² |

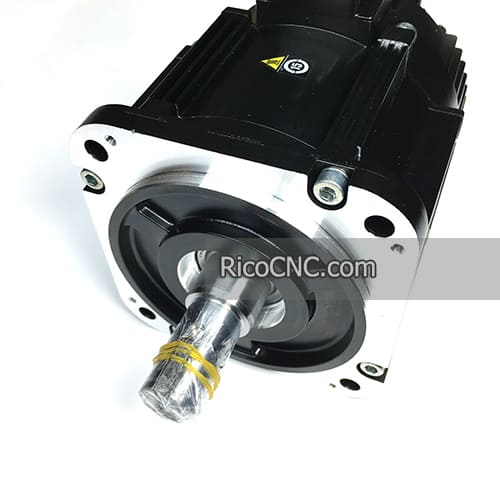

| Flange Dimension (LC) | 130 mm |
| Flange Diameter (LA) | 145 mm |
| Shaft End Diameter (S) | 24 mm |
| Shaft End Length (Q) | 40 mm |
SGM7G-13AFC6C features:
• 24-bit high-resolution encoder installed
• High efficiency, low heat generation
• Downsizing by up to 20%
• Flange compatible with Sigma-5
• Medium inertia, low speed, high torque
This servo motor aways use with SGD7S-120A10A002 servo driver.
