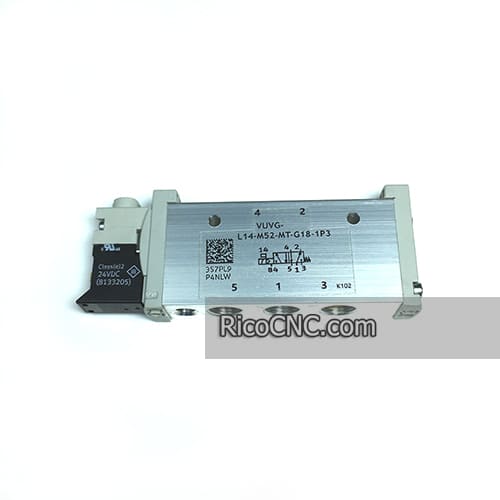

FESTO Solenoid Valve VUVG-L14-M52-MT-G18-1P3 574371
This universal valve has been newly designed on the inside and now offers an outstanding combination of high flow rates and a compact design. It is Solenoid valve for individual connection VUVG, the model number is VUVG-L14-M52-MT-G18-1P3, 574371.
VUVG valve features:
• Compact universal valve
• Connection technology via electrical connection box (E-box)
• High flow rate relative to its size
• In-line valves can be used as individual valves or manifold valves
Solenoid Valve VUVG-L14-M52-MT-G18-1P3 574371 specification:
| Valve function | 5/2-way, monostable |
| Type of actuation | Electric |
| Valve size | 14 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 700 l/min ... 780 l/min |
| pneumatic working port | G1/8 |
| Operating voltage | 24V DC |
| Operating pressure | 0.3 MPa ... 0.8 MPa |
| Operating pressure | 3 bar ... 8 bar |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Nominal size | 5.6 mm |
| Exhaust-air function | With flow control option |
| Type of piloting | Pilot actuated |
| Pilot air supply | Internal |
| Pilot pressure | 0.3 MPa ... 0.8 MPa |
| Pilot pressure | 3 bar ... 8 bar |
| Material seals | HNBR |
| NBR | |
| Material housing | Wrought aluminium alloy |
