Homag 4011041615 4-011-04-1615 Aventics R412010565 Throttle Stop Valve

Homag 4011041615 4-011-04-1615 Aventics R412010565 Throttle Stop Valve

• Homag throttle stop valve
• Homag part 4011041615
• Homag part 4-011-04-1615
• Homag Throttle stop valve steck M5 D=6
• Homag throttle valve 4011041615
• AVENTICS R412010565 pneumatic flow control valve
• Flow valve AVENTICS R412010565
• AVENTICS Check-choke valve
INQUIRY

Homag 4011041615 4-011-04-1615 R412010565 Aventics Throttle Stop Valve

This is the Aventics R412010565 pneumatic flow control valve CC04-M005-DA06-2_1, also known as the Aventics throttle stop valve. It can be used on Homag woodworking machines. The Homag part number is 4-011-04-1615 or 4011041615

The AVENTICS check-choke valve is series CC04 R412010565. Check-choke valves are designed for nominal flows from 70 to 1950 l/min. Different versions are available with a push-in fitting or internal thread.

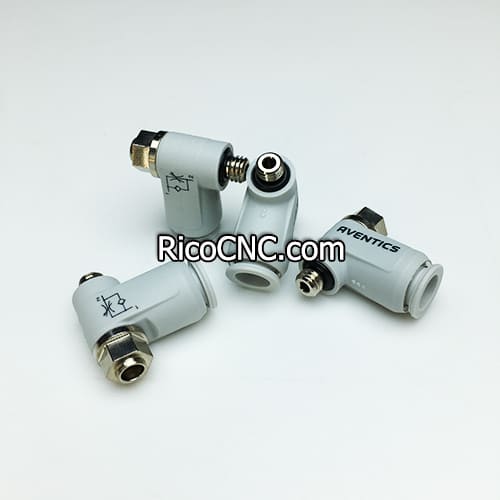

AVENTICS R412010565 flow control valve.jpg

Below is the specification of the Aventics R412010565 flow valve:

Series	CC04
Product type	Flow valve
Port 1	ø6
Port 2	M5
Throttle bore Ø (mm)	2
Rated current Qn (l/min)	110
Gas direction	2 ▶ 1
Compressed air connection type 1	Push-in fitting
Compressed air connection type 2	External thread
Min. ambient temperature (°C)	-10
Max. ambient temperature (°C)	60
Min. pressure (bar)	0.5
Max. pressure (bar)	10
Throttle	Exhaust Air Throttling
Material (housing)	Polyamide
Brand	AVENTICS

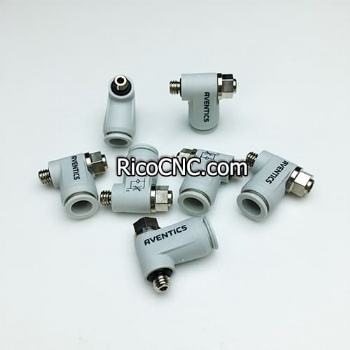

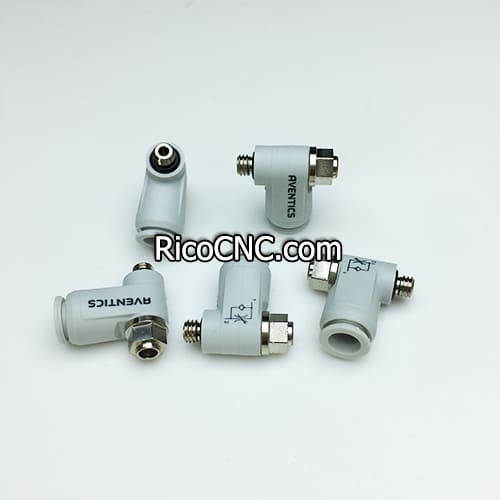

Flow valve AVENTICS R412010565.jpg

RicoCNC can offer a range of AVENTICS flow check valves, including the following models:

R412010564
R412010565
R412010568
R412010569
R412010570
R412010571
R412010572
R412010573
R412010574
R412010575
R412010576
R412010577
R412010578

If you are looking for Homag woodworking machine parts and accessories. Welcome to contact us for the quote!
