Pneumax 2241.52.00.35.02 Double Solenoid Valve

Pneumax 2241.52.00.35.02 Double Solenoid Valve

• Pneumax 2241.52.00.35.02
• Electromechanical valve
• PNEUMAX electrical valve
• Double Solenoid Valve 2241.52.00.35.02
• SOLENOID Valve 24Vdc
• OPTYMA32-S 5/2 Solenoid
• Pneumatic Valves 224152003502
• Series 2200 "OPTYMA-S"
INQUIRY

Pneumax 2241.52.00.35.02 Double Solenoid Valve

This is an electromechanical valve made by PNEUMAX, it is a double solenoid valve, serieis 2200 POTYMA-S, the model number is 2241.52.00.35.02.

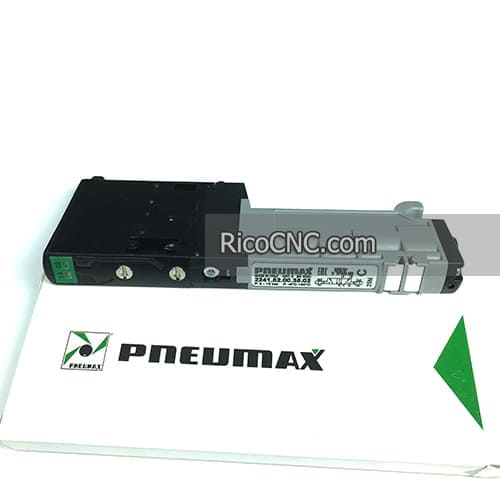

Double Solenoid Valve 2241.52.00.35.02.jpg

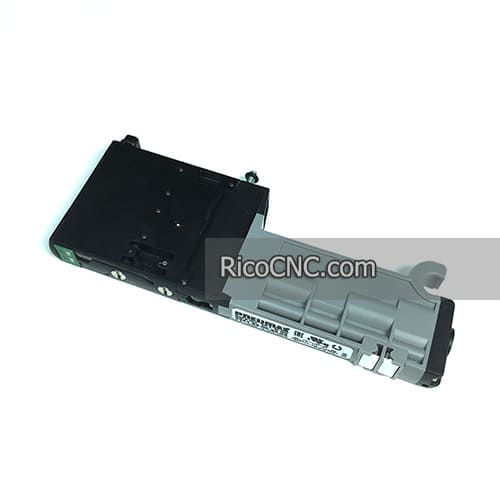

OPTYMA32-S 5:2 Solenoid.jpg

Specification of Pneumax 2241.52.00.35.02:

Manufacturer:	Pneumax
Type:	Double Solenoid Valve
Model:	2241.52.00.35.02
Type of Actuation:	Electrically
Operating Pressure:	3…10 bar
Fluid:	Air
Voltage:	24 VDC (PNP)
Flow Rate:	550 l/min
Ambient Temperature:	-5…50 °C
Pneumatic Connection:	Sub-Based
Material:	Polyamide
Weight:	80 g

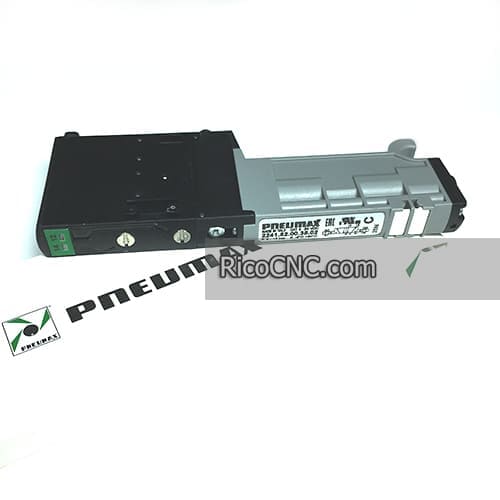

Electromechanical valve.jpg

SOLENOID Valve 24Vdc.jpg

Main characteristics

One size: 12.5mm thick

Monostable and bistable valves with same dimensions

Modular subbase with two positions

Modular subbases assembled via tie rods

Quick coupling connections directly integrated in sub base

Integrated and optimized electrical connections as standard

IP65 protection grade as standard

pneumatic Valves 224152003502.jpg
