Homag 4011041946 4-011-04-1946 One Way Flow Control Valve For Woodworking Machine

This is Festo 193154 GRLZ-M5-QS-4-D Flow Control Valve, 1 port M5 Thread & 1 Port 4mm OD Tube, Blue Ring. It can be used on Homag woodworking machine parts, Homag part number is 4011041946 or 4-011-04-1946.

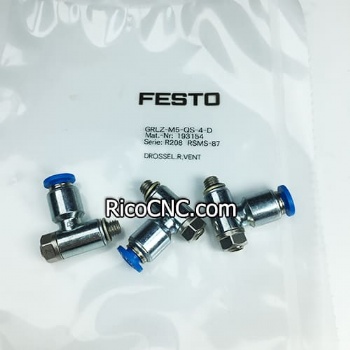

4011041946 valve for Homag.jpg
Flow control or one-way flow control valves regulate the piston speed of pneumatic drives during advance and return strokes. This is done through suitable restriction of the flow rate of compressed air in exhaust air or supply air direction. With the one-way flow control valve GRLA or GRLZ, the flow control function works in one direction only (exhaust air or supply air), and the non-return function works in the opposite direction. With the flow control valve GRLO, the flow control function is active in both directions.

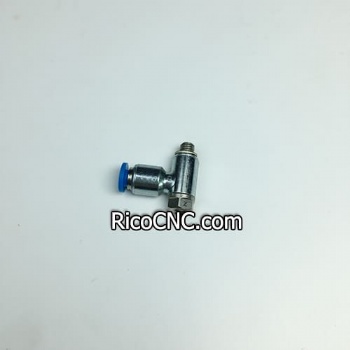

Homag 4011041946 flow control valve.jpg

Technical data of FESTO GRLZ-M5-QS-4-D Thottle Stop Valve:

Tolerance for nominal tightening torque	± 10%
Material screw-in stud	Brass
Material seals	NBR
Material adjusting screw	Brass
Valve function	Supply air one-way flow control function
Pneumatic connection, port 2	M5
Type of mounting	Screw-in
Standard nominal flow rate in blocked direction	65 l/min ... 110 l/min
Maritime classification	See certificate
Symbol	991,453
Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)	160 l/min
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Media temperature	-10 °C ... 60 °C
Product weight	13 g
Note on materials	RoHS-compliant
Material release ring	POM
Material swivel fitting	Die-cast zinc Chromated
Pneumatic connection, port 1	QS-4
Adjustment component	Slotted head screw
Standard nominal flow rate in flow control direction	110 l/min
Ambient temperature	-10 °C ... 60 °C
Mounting position	optional
Operating pressure complete temperature range	0,2 bar ... 10 bar
Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)	150 l/min ... 180 l/min
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Nominal torque	0,8 Nm

A range of AVENTICS check choke valves are available in RicoCNC

R412010564, R412010565, R412010568, R412010569, R412010570, R412010571, R412010572, R412010573, R412010574, R412010575, R412010576, R412010577, R412010578, R412010581, R412010582, R412010585, R412010586, R412010587, R412010588, R412010589, R412010590, R412010591, R412010592, R412010593, R412010594, R412010595

If you are looking for spare parts for your Homag woodworking machines. Welcome to contact us!

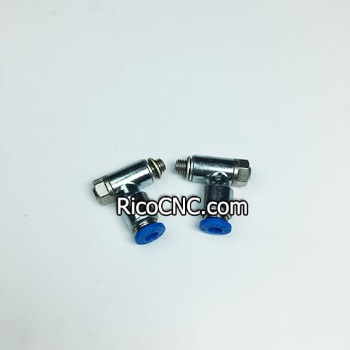

Festo 193154 control valve.jpg
