High Precision SK30-OZ25-60L Tool Holder For Anderson CNC Machine

High Precision SK30-OZ25-60L Tool Holder For Anderson CNC Machine

• SK30-OZ25-60L tool holder
• SK30 EOC 25 collet chuck
• SK30 SYOZ 25 tool holder
• SK30 OZ25 collet chuck
• SK30 tool holders for Anderson machine
• CNC router tool holder
• Tool holders for CNC machines
• Tool holder for CNC machining center
INQUIRY

High Precision SK30-OZ25-60L Tool Holder For Anderson CNC Machine

This is high precision SK30-OZ25-60L tool holder for CNC machines, suitable for SK30 CNC router spindles. It is also called SK30 SYOZ 25 or SK30 EOC 25 collet chuck. This SK30 tool holder can be used on Anderson CNC Machine.

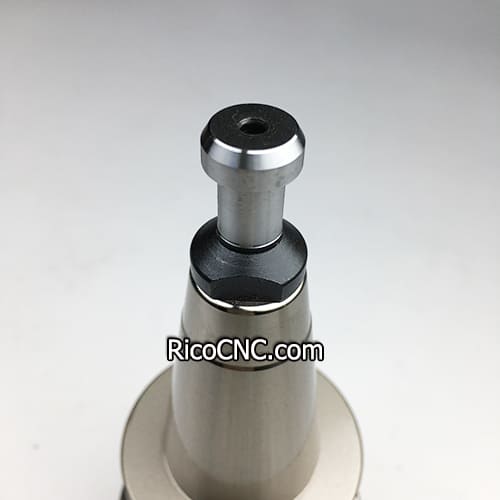

SK30 tool holders.jpg

Specification of SK30-OZ25-60L collet chuck:

Model	SK30-OZ25-60L or SK30-EOC25-60L
Rotate speed	24000 rpm, for ATC 9/12KW spindle
Color	Silver white with nickel film coating anti-rust design
Taper tolerance	<AT3
Taper tolerance	20/40Cr Allyed case hardened steel,black-finished and precisely grinded.
Max run out	<0.003mm
Surface Roughness	Ra <0.005mm
Shank body standard	DIN69871
Hardness	HRC 58-62
Accuracy	≤0.002 mm
Roughness	<Ra0.4
Carbonizing depth	08mm±0.2mm
Balance	Balance G2.5 24000rpm

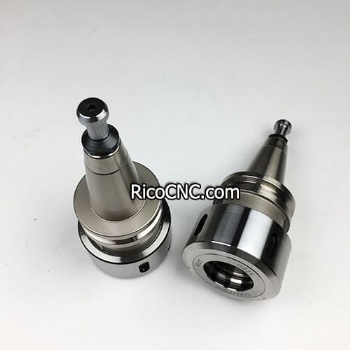

tool holders for Anderson.jpg

Tool holders for CNC machines.jpg

RicoCNC can offer different CNC tool holder types, including ISO series, BT30 series, BT40 series, HSK series, NBT series and CAT series tool holder, etc.

If you are looking for CNC tool holders or other CNC machine accessories, please don’t hesitate to contact us!

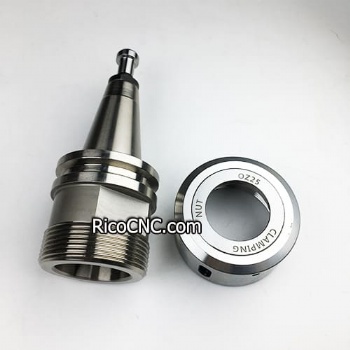

syoz 25 SK30.jpg
