4011041313 4-011-04-1313 Air Control Valve For Homag Holzma HPP180

4011041313 4-011-04-1313 Air Control Valve For Homag Holzma HPP180

• Homag valve block 5/2 G1/4 TC15 MONOSTABLE
• Homag part number 4011041313
• Suitabelf or Homag HPP180 beam saw
• AVENTICS™ valves, series TC15 0820058761
• AVENTICS 0820058761 air control valve
• TC15-5/2XX-SR-024DC-E-FORM_C-VT
• AVENTICS 0820 058 761 solenoid valve
• Pneumatic directional valve for Homag
INQUIRY

4011041313 4-011-04-1313 Air Control Valve For Homag Holzma HPP180

This valve block is AVENTICS 0820058761 TC15-5/2XX-SR-024DC-E-FORM_C-VT solenoid-operated air control valve - 2 Position, Single Solenoid, 5/2 G1/4 TC15 MONOSTABLE, 24VDC. It can be used on Homag Holzma HPP180 beam saw machines.

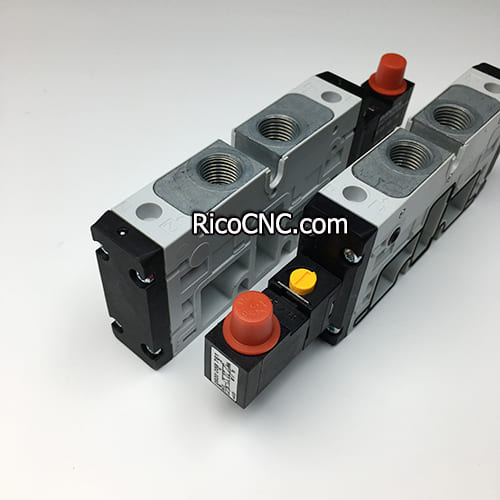

AVENTICS 0820058761 air control valve.jpg

4-011-04-1313 Homag valve.jpg

Specifications of AVENTICS 0820058761 valve for Holzma HPP180

Activation	Electrically
Actuating control	Single Solenoid
Manual override	with detent
Pilot	External
Nominal flow Qn	1500 l/min
Compressed air connection output	G 1/4
Min. working pressure	-0.9 bar
Max. working pressure	10 bar
Operational voltage	24 V DC
Voltage tolerance DC	-10% / +10%
Electrical connection type	Plug
Electrical connection size	ISO 15217, form C
Connector standard	ISO 15217
Protection class with connection	IP65
Sealing principle	15 mm, Soft seal
Power consumption DC	2 W
Duty cycle	100 %
Typ. switch-on time	12 ms
Typ. switch-off time	35 ms
Min. ambient temperature	-10 °C
Max. ambient temperature	50 °C
Weight	0.201 kg
Housing material	Polyamide fiber-glass reinforced
