Solid Carbide Single Flute Spiral Up cut Ball Nose CNC Router Bits

Solid Carbide Single Flute Spiral Up cut Ball Nose CNC Router Bits

• Single flute ball nose router bits
• Up cut router bits
• Single flute router bits
• Ball nose end mill
• Carbide CNC router bits
• Spiral flute CNC bits
• Single flute ball nose bits
• Suitable for Acrylic PVC MDF cutting
INQUIRY

Solid Carbide Single Flute Spiral Up cut Ball Nose CNC Router Bits

This CNC tool is single flute, spiral, up cut, ball nose router bits. This ball nose end mill is made of high-quality solid carbide and comes with a unique single flute design, creating room for maximized chip evacuation. They are very suitable for Acrylic, PVC, and MDF cutting.

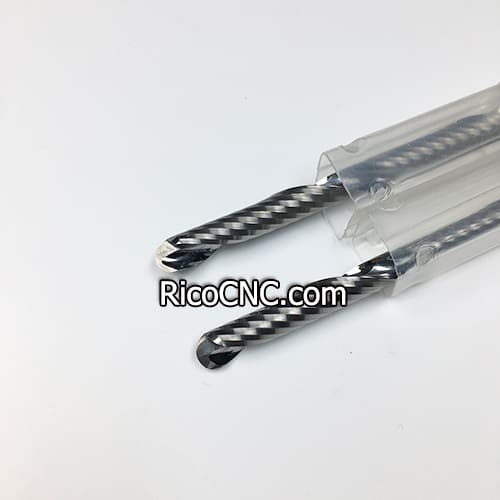

Single flute ball nose bits .jpg

These ball nose router bits are available in various shank diameters, cutting diameters, and cutting lengths, shank diameters. Below is the sizes list:

PART NO	CED（mm）	CEL（mm）	SHK（mm）	OVL（mm）
1LQX3.208	2	8	3.175	38
1LQX3.212	2	12	3.175	38
1LQX3.12	3.175	12	3.175	38
1LQX3.15	3.175	15	3.175	38
1LQX3.17	3.175	17	3.175	38
1LQX3.22	3.175	22	3.175	45
1LQX3.25	3.175	25	3.175	50
1LQX3.32	3.175	32	3.175	60
1LQX3.42	3.175	42	3.175	70
1LQX412	4	12	4	40
1LQX415	4	15	4	40
1LQX417	4	17	4	40
1LQX422	4	22	4	45
1LQX425	4	25	4	50
1LQX428	4	28	4	55
1LQX432	4	32	4	60
1LQX442	4	42	4	70
1LQX452	4	52	4	80
1LQX517	5	17	5	50
1LQX522	5	22	5	50
1LQX525	5	25	5	55
1LQX617	6	17	6	50
1LQX622	6	22	6	50
1LQX625	6	25	6	55
1LQX628	6	28	6	55
1LQX632	6	32	6	60
1LQX642	6	42	6	80
1LQX652	6	52	6	90
1LQX672	6	72	6	110
1LQX6.22	6.35	22	6.35	50
1LQX6.25	6.35	25	6.35	55
1LQX6.32	6.35	32	6.35	60

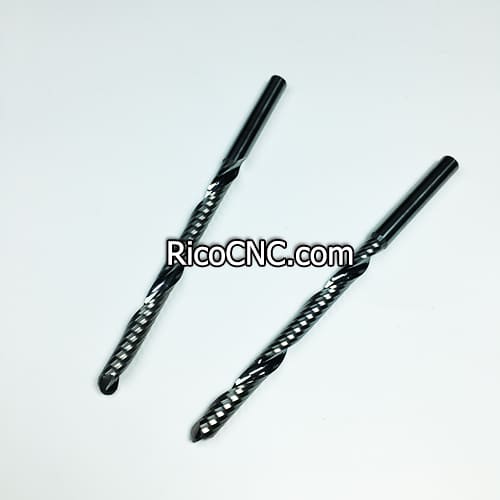

Single flute ball nose router bits.jpg

RicoCNC can offer a range of different CNC router bit types, including ball nose router bits, flat end router bits, conical router bits, single flute router bits, 2 flute router bits, 3 flutes bits, 4 flutes router bits, etc.

Welcome to your inquiry!

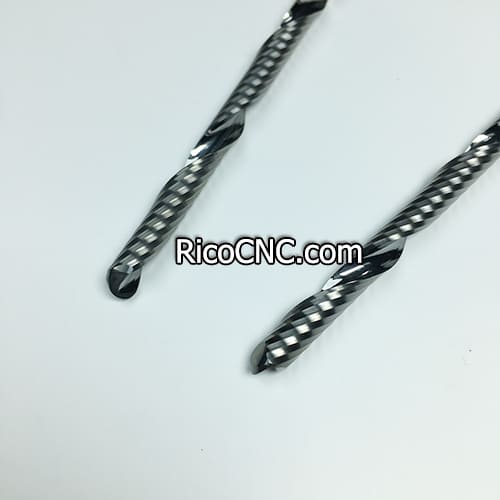

Single flute router bits.jpg
