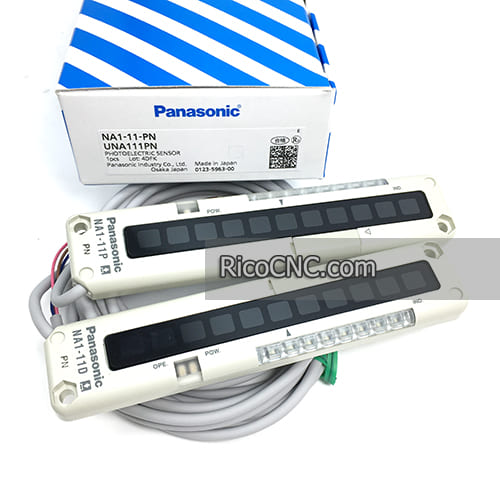

Panasonic NA1-11-PN.jpg

Panasonic NA1-11-PN Small Object Detection Area Sensors


This is a Small Slim object detection area sensor from Panasonic, the part number is NA1-11-PN NA111PN.

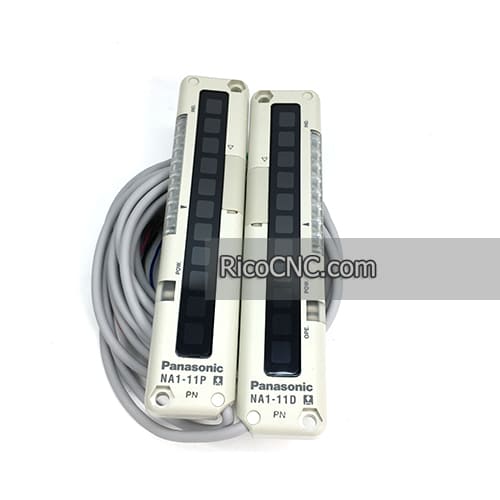

NA111PN sensor.jpg

Slim Object Detection Area Sensor NA1-11-PN specification:

ItemSpecifications
Product NumberNA1-11-PN
Products NameSmall / Slim Object Detection Area Sensor
Product detailsPNP output
Sensing height100 mm 3.937 in
Sensing range0.17 to 1 m 0.558 to 3.281 ft
Element pitch10 mm 0.394 in
Sensing objectø13.5 mm ø0.531 in or more opaque object
Supply voltage12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
OutputPNP open-collector transistor
- Maximum source current: 100 mA
- Applied voltage: 30 V DC or less (between output and +V)
- Residual voltage: 1 V or less (at 100 mA source current), 0.4 V or less (at 16 mA source current)
Output:Utilization categoryDC-12 or DC-13
Output:Output operationON or OFF when beam channel is interrupted, selectable by operation mode switch
Output:Short-circuit protectionIncorporated
Ambient temperature-10 to 55  +14 to +131
Storage: -20 to +70  -4 to +158
MaterialEnclosure: Heat-resistant ABS
Lens: Acrylic
Indicator cover: Acrylic

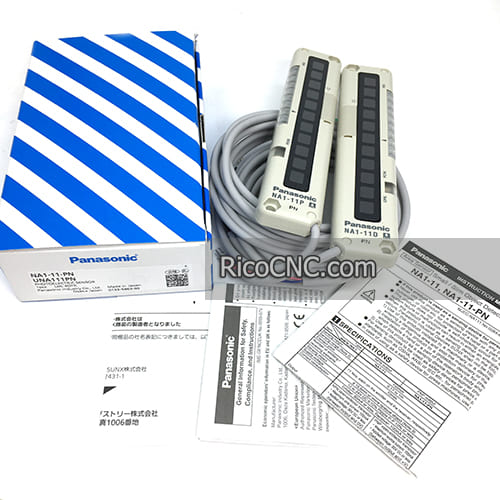

Slim Object Detection Area Sensor NA1-11-PN.jpg

There are wide range of sensors supplied by RicoCNC and Rico Automation. Please contact us for more information!
