Bosch Rexroth Linear Ball Runner Blocks R165372320 KWD-030-FLS-C2-H-1

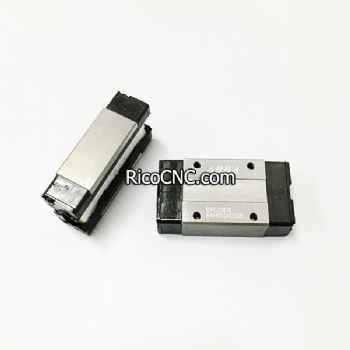

Bosch Rexroth linear R165372320 is ball runner block CS KWD-030-FLS-C2-H-1. Bosch Rexroth ball runner blocks FLS, flanged, long, standard height.

Bosh Rexroth R1653 linear bearings.jpg

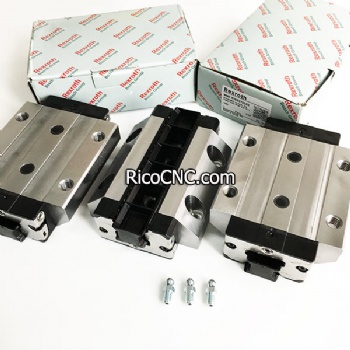

Bosch Rexroth linear ball runner blocks R165372320 apply to the most demanding rigidity requirements. Significantly reduced frictional oscillations and low friction level, particularly under external load.
KW Gen2-030-FLS-CS -H.jpg

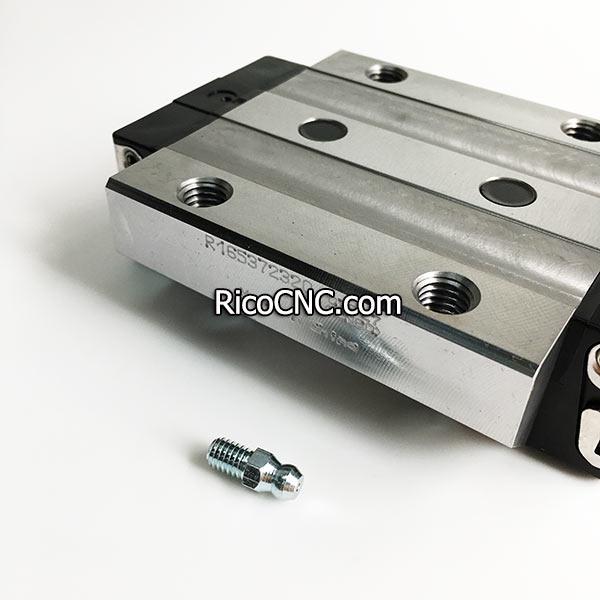

R 165372320 Rexroth Linear Bearing Features:
Can be used on all SNS/SNO Ball Guide Rails
Integrated all-around sealing
High torque capacity
Different preload classes
Maximum precision
Excellent dynamic characteristics
Significantly reduced frictional oscillations and low friction level, particularly under external load
Patented entry zone increases the travel accuracy up to a factor of six
The same high load ratings in all four main directions of loading
Lube fittings with metal threads on all sides
Ball Runner Block pre-lubricated at the factory.

KWD-030-FLS-C2-H-1 Dimension:
R165372320 dimensions.jpg

a) For O-ring
Size 15: Ø 4 • 1.0 (mm)
Size 20 - 45: Ø 5 • 1.0 (mm)
Open lube port if necessary (see general technical notes and information in the "Maintenance" section).
b) Recommended position for pin holes (dimension E4 see general technical notes and information in the "Installation" section)
Rough-drilled holes may be present here from manufacturing. These may be bored open.
c) Lube nipple, size 15 - 20:
Funnel-type lube nipple DIN 3405-A M3x5, B2 = 1.6 mm
When using different lube nipples, pay attention to the screw-in depth of 5 mm!
Lube nipple, size 25 - 45:
Hydraulic-type lube nipple DIN 71412-A M6x8, B2 = 9.5 mm
When using different lube nipples, pay attention to the screw-in depth of 8 mm!
The lube nipple is included in the scope of delivery (not installed).
Connection possible on all sides.
d) Sealing plugs may be present here from manufacturing. Remove before mounting.


A

90 mm


Dimension   H2
  with cover strip

28.55 mm

A2

28 mm


A3

31 mm

B

119.7 mm +0.5


B1

89.4 mm

E1

72 mm


E2

52 mm

E3

44 mm


E8

48.4 mm

E9

14.6 mm


H

42 mm

H1

35.35 mm


A1

45 mm

K1

25 mm


Dimension H2
  without cover strip

28.35 mm

K2

26.7 mm


K3

6.05 mm

K4

6.05 mm


N1

11 mm

N2

7.9 mm


N6

17 mm ±0.5

S1

8.5 mm


S2

M10

ØS5

9 mm


S9

M3x5

T

80 mm


V1

7 mm

Technical Data:

amax (If Fcomb   > 2.8 • Fpr : amax = 50 m/s2)

500 m/s²


vmax

5 m/s

m

1.5 kg


m (Without   friction of seal)

0,002 ...   0,003 kg

Operating   conditions

Operating   conditions


Size

30

Permissible   ambient temperature (min ... max) (Up to 100 °C permissible for short   periods. For operation at negative temperatures, please consult us. )

-10 °C ... +80   °C





Bosch Rexroth ball rail systems.jpg

Size

Accuracy
  class

Part numbers for runner blocks

up to approx.
  10 um clearance

Preload
  0.02 C

Preload
  0.08 C

Preload
  0.13 C

30

UP

-

R165371920

R165372920

R165373920

SP

-

R165371120

R165372120

R165373120

P

-

R165371220

R165372220

R165373220

H

R165379320

R165371320

R165372320

-

N

R165379420

R165371420

R165372420

-


RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.
