AVENTICS 0822390203 10678292 Cylinder For IMA Edgebanding Machine

AVENTICS 0822390203 10678292 Cylinder For IMA Edgebanding Machine

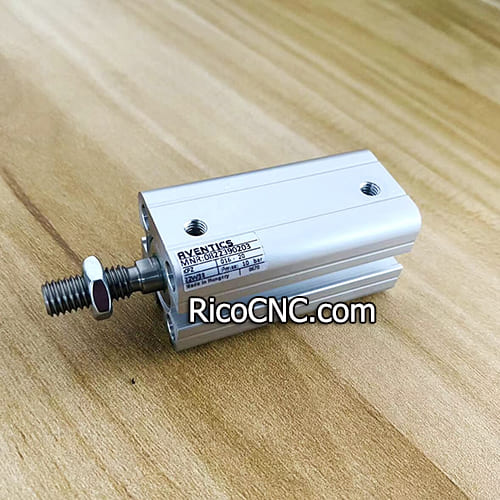

This is AVENTICS 0822390203 compact cylinder, series KPZ (KPZ-DA-016-0020-004122411000000-B).
This is end-tracking stopper cylinder for IMA edgebanding machine. IMA spare part number is 10678292

Specifications of IMA 0822390203 compact cylinder:
Standards: NFE 49004
Piston Ø:16 mm
Stroke:20 mm
Functional principle: Double-acting
Cushioning: Elastic cushioning
Magnetic piston: Piston with magnet
Environmental requirements industry standard, ATEX optional
Certificates: ATEX optional
Piston rod: single
Scraper: Standard industrial scraper
Pressure for determining piston forces: 6,3 bar
Retracting piston force: 95 N
Extracting piston force: 127 N
Min. ambient temperature: -20 °C
Max. ambient temperature: 80 °C
Working pressure min.1 bar
Working pressure max10 bar
Ports: M5
Piston rod thread: M8
Impact energy: 0.15 J
Stroke max.: 300 mm
Medium: Compressed air
Min. medium temperature: -20 °C
Max. medium temperature: 80 °C
Max. particle size: 50 µm

RicoCNC can offer a range of CNC & woodworking machine parts for Biesse, Homag, SCM, Anderson, Busellato, DMS, CR Onsrud, Komo Machinery, IMA, Brandt, Intermac, Laguna Tools, Morbidelli, Northwood, Weeke, Multicam, Techno, Masterwood, Felder, Holz-her, Greda Sirio, Thermwood, CNT Motion, Flexicam, and other machine brands.

If you are looking for woodworking machine parts, welcome to contact us.
