Mubea 180111 Belleville Disc Spring For CNC Spindles Drawbars

Mubea 180111 Belleville Disc Spring For CNC Spindles Drawbars

• Mubea 180111 disc spring
• Chrome vanadium disc spring
• Dimension: 100x51x4x7mm
• Belleville spring washer
• Brand: Mubea
• Part No: 180111
• Mubea Belleville disc spring
• Made of chrome vanadium steel
INQUIRY

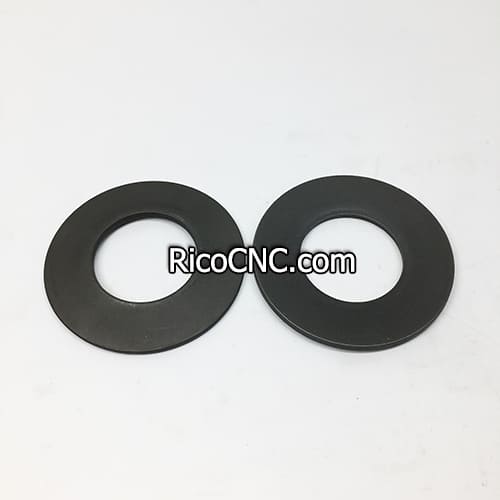

Mubea 180111.jpg

Mubea 180111 Belleville Disc Spring For CNC Spindles Drawbars

This is Germany Mubea 180111 belleville disc spring, 51 mm ID, 7 mm OAH, 100 mm OD-Chrome Vanadium Steel, Phosphate & Oil Finish, 2.25 mm Deflection, 20,674 N Load at Deflection.

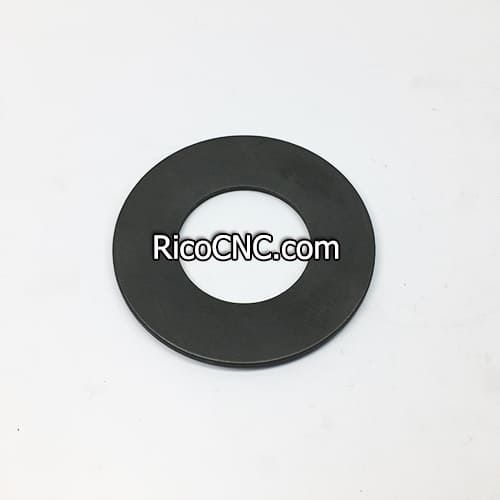

Mubea disc spring.jpg

Specification of Mubea 180111 disc spring:
Type: Belleville Disc Spring
Series: Group 2 - Thickness from 1.25 mm to 6 mm
Measurement System: Metric
Material: Chrome Vanadium Steel
Outside Diameter: 100 mm
Inside Diameter: 51 mm
Thickness: 4 mm
Load at Deflection: 20674 N
Load at Flat: 25338 N
Material Grade: 51CrV4

Mubea 180111 disc spring.jpg

RicoCNC can offer different sizes of Mubea spring washers.

Mubea Part No	Dimensions in mm (OD x ID x Thickness x LO)
170022	12x6.2x0.6x 0.95
170051	18x9.2x1x1.4
170063	20x10.2x1.1x1.55
180003	23x12.2x1.5x2.1
180004	25x12.2x1.5x2.05
180008	28x12.2x1.5x2.25
180010	28x14.2x1.5x2.15
180011	31.5x16.3x1.25x2.15
180014	31.5x16.3x2x2.75
180020	34x16.3x2x2.85
181022	35.5x18.3x2x2.8
180029	40x16.3x2x3.1
180030	40x18.3x2x3.15
180034	40x20.4x2.5x3.45
180037	45x22.4x2.5x3.5
180053	50x25.4x3x4.1
180057	56x28.5x3x4.3
180065	60x30.5x3x4.7
180082	70x40.5x5x6.4
