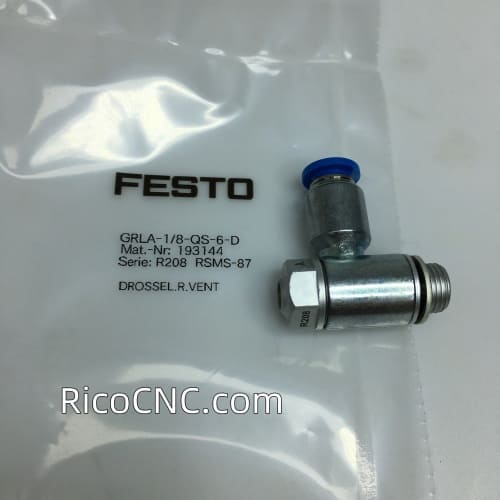

4011041241 FESTO 193144 Festo GRLA Series Flow Controller Exhaust Valve, Homag part number is 4011041241, 193144 ISO 1179-1 and ISO 228-1 ISO 1179-1 and ISO 228-1, GRLA-1/8-QS-6-D Valve | 6mm/G1/8 Ports | 0.2-10 bar
Specification of 4011041241 FESTO 193144 Festo GRLA Series Flow Controller Exhaust Valve:
Mfr description: 193144 GRLA-1/8-QS-6-D REGULATOR
Valve function: Exhaust air flow control non-return function
Standard nominal flow rate in flow control direction: 185 l/min
Pneumatic connection 1: QS-6
Adjusting element: Slotted screw
Type of mounting: Screw-in
Standard nominal flow rate in flow control direction: 185 l/min
Standard nominal flow rate in non-return direction: 160 l/min ... 240 l/min
Ambient temperature: -10 °C ... 60 °C
Mounting position: Any
Symbol: 00991452
Operating pressure for entire temperature range: 0.2 bar ... 10 bar
Standard flow rate in flow control direction 6 -> 0 bar: 370 l/min
Also we supply:
4008392165 07F5A1A-YA00 KEB F5 Frequency Inverter
4007011545 HTD 4744-8M-30 HOMAG Timing Belt 4-007-01-1545
4006070915 Homag Ball screw 4006071107 4006071012
