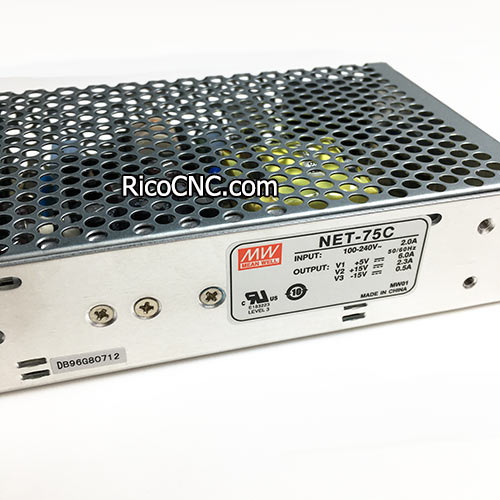

NET-75C Meanwell Power Supply MW-MEAN WELL 72W Triple Output Switching Converters
Mean Well NET-75C. 72W regulated switching triple output power supply channel, MW-MEANWELL 72W 5V/6A 15V/2.3A -15V/0.5A. Widely used for CNC machine voltage convert.
This power supplier is a 75w triple output switching power supply. Enclosed AC DC converters 3 Output 5V 15V -15V - 85 ~ 264 VAC, 120 ~ 370 VDC input.
NET-75C Power Supply Features:
•Universal AC input/Full range
•Protections: Short circuit/Over load/Over voltage
•Cooling by free air convection
•100% full load burn-in test
Meanwell NET-75C Specifications:
Product Attribute | Attribute Value |
Manufacturer: | MEAN WELL |
Product Category: | Switching Power Supplies |
RoHS: | N |
Output Voltage-Channel 1: | 5 VDC |
Output Voltage-Channel 2: | 15 VDC |
Number of Outputs: | 3 Output |
Output Power: | 30 W |
Input Voltage: | 85 VAC to 264 VAC, 120 VDC to 370 VDC |
Output Current-Channel 1: | 6 A |
Industry: | Industrial |
Mounting Style: | Chassis |
Length: | 159mm |
Width: | 97mm |
Height: | 38mm |
Series: | NET-75 |
Approvals: | UL60950-1 |
Brand: | MEAN WELL |
Compliance: | UL60950-1 |
Output Current-Channel 3: | 500 mA |
Output Voltage-Channel 3: | 15 VDC |
Product Type: | Switching Power Supplies |
RT-85C power supply can replace the NET-75C model.
RicoCNC also can supply other models of WM switching power supplies, NET-75A, NET-75B, NET-75C, NET-75D, etc.
