Original SICK WL9-3F2234S20 Photoelectric Sensors for Homag 4-008-61-1001

Original SICK WL9-3F2234S20 Photoelectric Sensors for Homag 4-008-61-1001

• SICK WL9-3F2234S20 sensor
• Homag part number 4-008-61-1001
• SICK Part no.:1050928
• Replace WL9-2P331S20
• SICK sensors for Homag
• SICK WL9-3F2234S20 photoelectric reflex switch
• SICK photoelectric sensor WL9-3F2234S20
• 4008610111 SICK photoelectric sensors
INQUIRY

SICK sensors for Homag.jpg

Original SICK WL9-3F2234S20 Photoelectric Sensors for Homag 4-008-61-1001

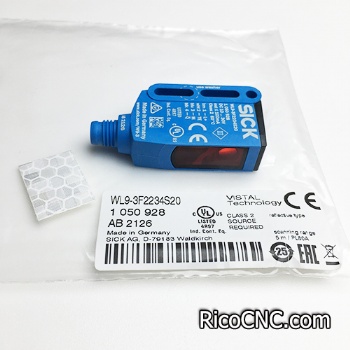

This small photoelectric sensor is the original Germany SICK WL9-3F2234S20 sensor. Its part no is 1050928. And it can replace SICK WL9-2P331S20.

Homag 4-008-61-0111.jpg

This SICK photoelectric sensor WL9-3F2234S20 can be used on Homag beam saw PROFI HPL380/43/22. Its part number is 4-008-61-1001, replacement for 2-007-47-1070, 4-008-61-0400.
SICK WL9-3F2234S20 sensor.jpg

Below is the specification of SICK WL9-3F2234S20 sensor:

Device type	Photoelectric sensors
Sensor/ detection principle	Photoelectric retro-reflective sensor, autocollimation
Dimensions (W x H x D)	12.2 mm x 49.8 mm x 23.6 mm
Housing design (light emission)	Rectangular
Mounting hole	M3
Sensing range max.	0 m ... 5 m 1)
Sensing range	0 m ... 3 m 1)
Type of light	Visible red light
Light source	PinPoint LED 2)
Light spot size (distance)	Ø 45 mm (1.5 m)
Wave length	650 nm
Adjustment	Single teach-in button Cable
Special features	Inclusive DG-Folie 15 x 20 mm External teach

• 1) Reflector PL80A.
• 2) Average service life: 100,000 h at TU = +25 °C.
SICK 1050928.jpg
RicoCNC can offer a range of Homag beam saw machine parts including electronic components, air table valves, dust flag, pressure beam rubber strip, etc. Welcome to contact us for more information!
