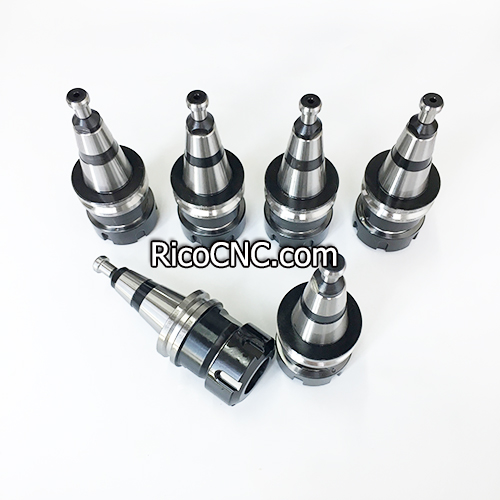

ISO30 ER32 Tool Holder SK30 Collet Chuck for ELTE ATC spindle

ISO30 ER32 Tool Holder SK30 Collet Chuck for ELTE ATC spindle

These ISO30 collet chucks fit for the ELTE ATC spindles. Also called SK30 tool holder. They are widely used in CNC woodworking machines that use ELTE spindles. ELTE is located in Montecchio Maggiore in the region of Vicenza, Italy, and has more than thirty (30) years of experience in the field of manufacturing high-speed precision spindles.

Features about ISO30 ER32 collet chuck for Elte spindle:

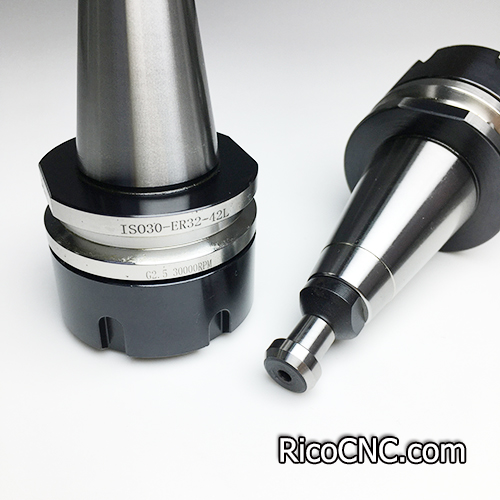

CNC collect chuck model: ISO30-ER32-42L
Compatible with ISO30 ELTE spindle motors.
ISO30 toolholder collet size: ER32 (ER20, ER25, ER40 optional)
Material: 20CrMnTi
Balanced: 30,000rpm, G2.5
Retention knob: DIN69872 (SK30, Elte, Omlat, Ibag)

Country of Origin: China
Compatibility: Can be used on CNC router machines with Italy ELTE spindles.
Precision ground surfaces. Nickel Plated. Anti-rust.
Including cover nut and pull stud.
Maintenance: Protect from rust with rust preventative spray. Remove spray before placing into service. Use the correct concentration of coolant to prevent corrosion. Always check tool holders for scoring or wear. Replace if worn or damaged.

RicoCNC is a one-stop shop for CNC tool holder, CNC machine accessories and spare parts. Our goal is to provide quality service for our customers and to shorten any production downtime as much as possible, and so provide value for them.

If you have any needs about the machine parts, please feel free to contact us.
