4-006-10-2276 4006102276 Linear Bearing Bosch Rexroth R162171420 for Homag PTP160 Machining Center

This R162171420 is a Ball Runner Block, Size 30, Ball runner block CS, made of Carbon steel, Accuracy High, Low Preload Linear guider.
Always used in PTP160 Machining Center for Homag, X-axis linear bearing 1621-714-20 for Weeke BHC / Venture CNC, part number is 4-006-10-2276 (4006102276).


Homag 4006102276 Linear Bearing Features:
• Area of application: For restricted space in transverse direction and high rigidity requirements
• Low noise level and outstanding travel behavior
• Higher rigidity than SNS
• Long-term lubrication is possible over several years
• Excellent dynamic characteristics
• Used in PTP160 machining center for Homag

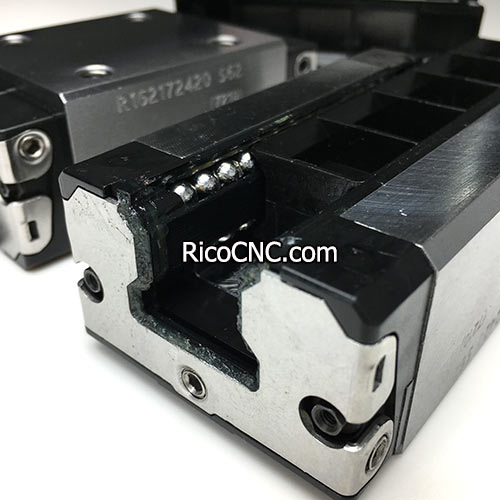

Homag machine linear block.jpg


R 162171420 Additioal Information:

Weight [kg]

0.991

Size [mm]

30

A [mm]

60

H [mm]

45

B [mm]

97.7

E1 [mm]

40

E2 [mm]

40

Preload class

C1 - moderate preload

Accuracy class

N - normal

Seal type

SS - standard seal, Without ball chain

B1 [mm]

67.4

H1 [mm]

38.35

S2

M8

T [mm]

80

A2 [mm]

28

H2 [mm]

28.35

N6 [mm]

17

S5 [mm]

9

Load capacity C [N]

36500

Load capacity C0 [N]

48100

Load moment Mt [Nm]

630

Load moment Mt0 [Nm]

830

Load moment ML [Nm]

440

Load moment ML0 [Nm]

580

Brand

Bosch-Rexroth

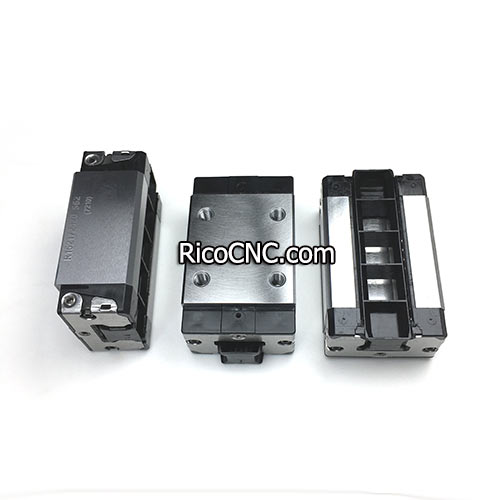

Slider 4006102276.jpg

RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.

If any need of CNC machine parts, welcome to contact us.
