2-250-19-4030 2250194030 Rubber Pressure Roller 70x20x25 mm with groove for Homag Brandt Edge Bander

2-250-19-4030 2250194030 Rubber Pressure Roller 70x20x25 mm with groove for Homag Brandt Edge Bander

• 2250194030 Brandt edgebander wheel
• 2-250-19-4030 Pressure rubber roller Brandt
• ø 70 x ø 20 x 25 mm Brandt pressure wheels
• 70x20x25 mm rubber wheels with groove
• 2-250-19-4030 pressure roller
• Homag roller 2250194030
• Pressure wheels for BRANDT edgebander
• 2-250-19-4030 pressure roller for Homag
INQUIRY

2-250-19-4030/2250194030 Rubber Pressure Roller 70x20x25 mm with groove for Homag Brandt Edge Bander

This gear rubber wheel is the pressure roller for Homag Brandt edge banding machines. The replacement part number for Homag is 2-250-19-4030 or 2250194030.

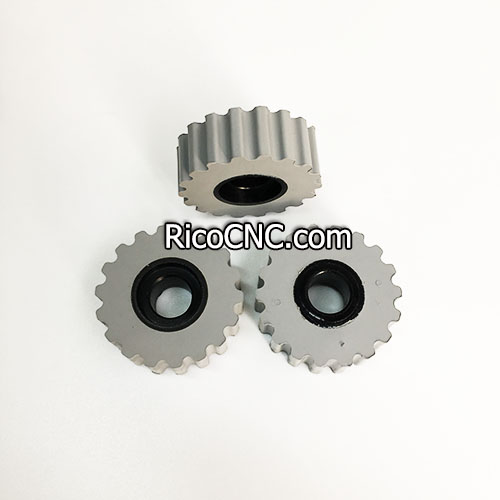

70x20x25 mm rubber wheels with groove.jpg

The inner diameter for the axle is 20 mm, with a recess for a 5 mm axle-bolt head. It is the 70x20x25mm gear pressure wheel with a 30mm diameter countersink.
Homag 2250194030.jpg
ø 70 x ø 20 x 25 mm Brandt pressure roller with groove parameters:
Straight gear pressure wheel without bearing
Outer diameter = 70 mm
Inner diameter = 20 mm
Height/Width = 25 mm
Countersink type, countersink diameter 30mm, depth 5.8mm
Application: used on Homag and Brandt Tenoners and edgebanding machine
70x20x25mm pressure wheels.jpg
