New FESTO 573418 VUVG-B10-B52-ZT-F-1T1L Air Solenoid Valve for Homag Machines

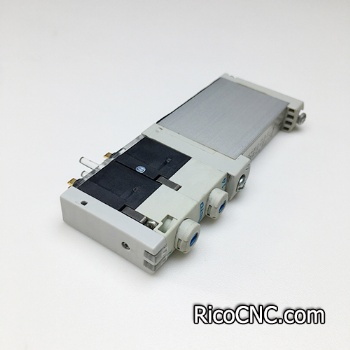

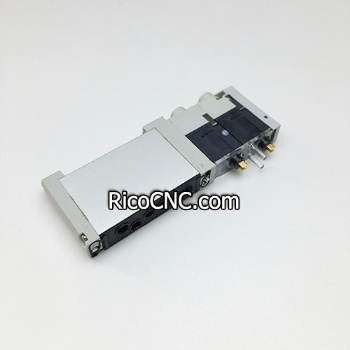

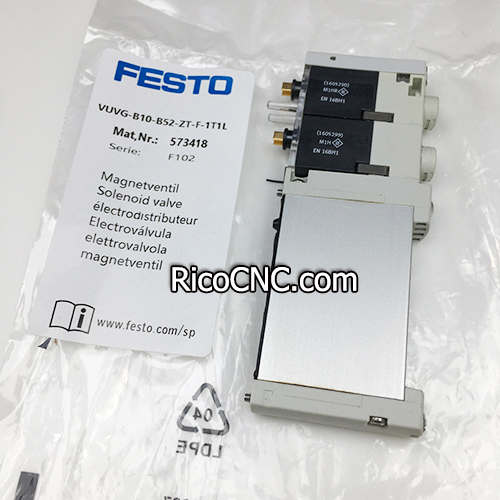

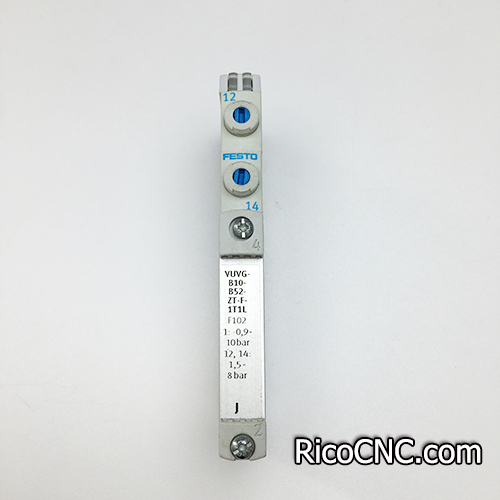

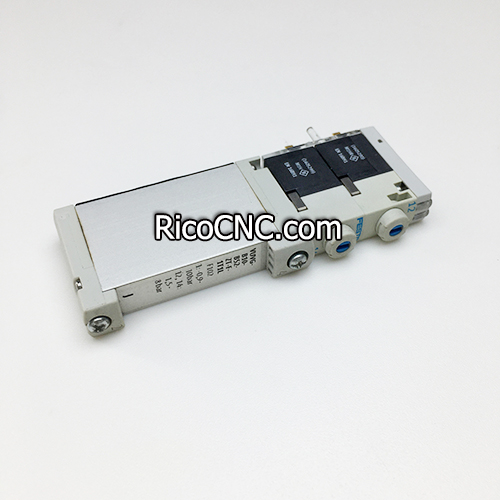

This valve is FESTO 573418 air solenoid valve, VUVG series, part number VUVG-B10-B52-ZT-F-1T1L, 24V dc, electrically operated. FESTO solenoid valve can be used on Homag woodworking machines.
The compact design of the VUVG series valves is ideal for use in areas where consideration of installation space, weight, flow rate, and mounting are important. These solenoid valves have a high flow rate and are compact, allowing for a greater number of applications with a single valve type. The valves have up to 100% more flow and higher energy density due to a pressure capacity of up to 10 bar. They offer faster, more flexible, and cost-effective performance for your systems.
Data sheet of FESTO 573418 valve:
Feature | Value |
Valve function | 5/2, bistable |
Actuation type | Electrical |
Valve size | 10 mm |
Standard nominal flow rate | 220 l/min |
Pneumatic working port | Flange |
Operating voltage | 24V DC |
Operating pressure | -0.09 MPa ... 1 MPa |
Operating pressure | -0.9 bar ... 10 bar |
Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 IP67 |
Exhaust air function | With flow control option |
Sealing principle | Soft |
Mounting position | Any |
Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled |
Pilot air supply port | External |
Flow direction | Reversible |
Symbol | 00991125 |
Lap | Overlap |
Signal status display | LED |
Pilot pressure MPa | 0.15 MPa ... 0.8 MPa |
Pilot pressure | 1.5 bar ... 8 bar |
Max. switching frequency | 3 Hz |
Changeover time | 9 ms |
Duty cycle | 100% |
Max. positive test pulse with 0 signal | 1600 µs |
Max. negative test pulse on 1 signal | 3000 µs |
Coil characteristics | 22 V DC: 1.0 W |
Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Temperature of medium | -5 °C ... 60 °C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5 °C ... 60 °C |
Product weight | 60 g |
Electrical connection | Via sub-base |
Type of mounting | On terminal strip |
Note on materials | RoHS-compliant |
Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy |
FESTO 526990 CPASC1-M1H-M-P2.5 4011040905(4-011-04-0905), 4011041727 (4-011-04-1727) FESTO 558369 VUVB-ST12-M52-MZH-QX-D-1T1, 4011041130 (4-011-04-1130) valve 5/2 impuls festo CPASC1-M1H-J-P-2,5 526992 BHX500 also are available here.
RicoCNC can offer a wide range of industrial spare parts and components for CNC routers, CNC machining centers, beam saw machines, edge banding machines, etc. Any needs, welcome to contact us.
