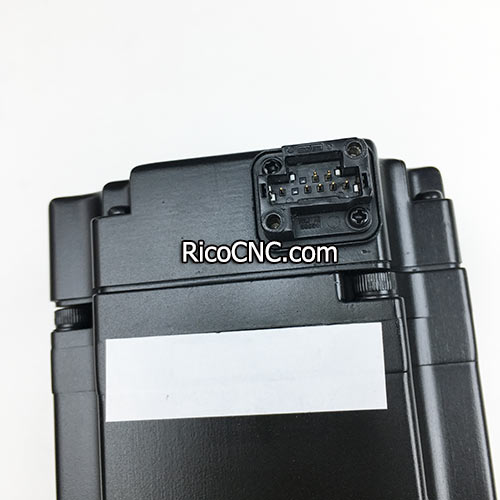

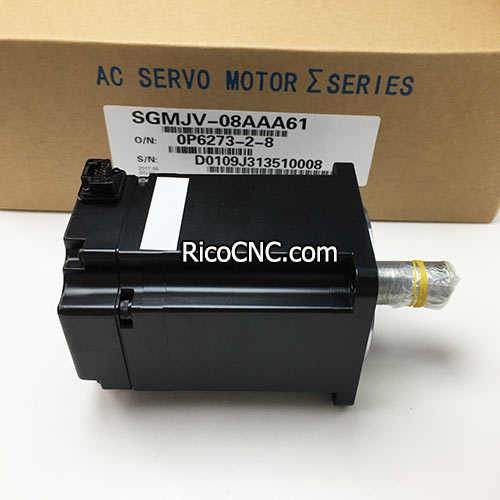

Yaskawa AC Servo Motor SGMJV Series SGMJV-08AAA61
This AC servo Motor is Sigma 5 middle inertia rotary servo motor, SGMJV-08AAA61.
The SGMJV small capacity brushless servomotor can be used in a variety of applications such as Robots, PCB Drilling Stations, material handling machines and many other applications.
SGMJV Series features:
• Medium Inertia
• Instantaneous Peak Torque (350% of rated torque)
• 20-Bit High Resolution Serial Encoder
• Maximum Speed: 6,000 RPM
• 50W~750W Capacity
• Enclosure: IP65 (excluding shaft)
Yaskawa AC Servo Motor SGMJV-08AAA61 specification:
Item Number: | SGMJV-08AAA61 |
Brand: | Yaskawa |
Item Category: | Motors |
Subcategory: | Servo |
Series: | SGMJV |
Mfg. Product Series: | Sigma 5 |
kW: | 0.75 KiloWatts |
Voltage: | 200 VAC |
Servomotor Type: | Rotary |
Rated Speed: | 3,000 RPM |
Max Speed: | 6,000 RPM |
Mounting Type: | Flange Mount |
Encoder Type: | Incremental |
Encoder Bit Resolution: | 13 BIT |
Constant Torque (Nm): | 2.39 |
Peak Torque (Nm): | 8.36 |
Constant Torque (Oz-In): | 338.4 |
Peak Torque (Oz-In): | 1,183.90 |
Constant Torque (Lb-In): | 21.15 |
Peak Torque (Lb-In): | 74 |
Brake: | No |
Shaft Seal: | No |
Inertia: | Medium |
IP Rating: | IP65 |
Approvals: | UL;CE;cUL Recognized |
Picture No.: | MOTO_SERVO_SGMJV_ROTARY |
H x W x D: | 6.1 in x 3.15 in x 3.74 in |
Net Weight: | 6 lb 10 oz |
Gross Weight: | 6 lb 10 oz |
RicoCNC also can supply a variety of servo motors, such as Yaskawa, Panasonic, etc.
You can find many other series servo motors here, please feel free to contact us!
