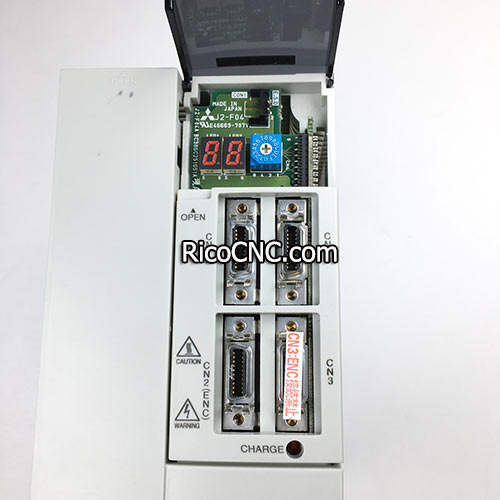

Mazak Mitsubishi MDS-B-SVJ2-10 Servo Drive MDS-B-SVJ2 series 1kw Servo Amplifier

Mazak Mitsubishi MDS-B-SVJ2-10 Servo Drive MDS-B-SVJ2 series 1kw Servo Amplifier

MDS-B-SVJ2-10 is a Drives-AC Servo produced by Mitsubishi. 1KW Mitsubishi ac servo driver MDS-B-SVJ2-10 Industrial 3 phase Servo Drive Unit 8.8A 170V

Specifications of Servo Drive MDS-B-SVJ2-10

The MDS-B-SVJ2 Series servo drive unit is for NC, which was developed as the successor model to the MDS-A-SVJ Series. It has such features as below compared with SVJ.

Features of Industrial Servo Drive MDS-B-SVJ2

1. CE Marking compliant (Compliant to European Safety Standard)

2. Installation convertibility with all the capacities of the SVJ series

3. New model, HC motor supported

4. 100,000 pulse ENC supported (OSA104,OSE104)

5. Standard regenerative resistor is integrated in drive unit (All capacities other than 100W)

6. Possible to integrate the battery for the absolute positioning system (MR-BAT) in drive unit (Battery unit is also possible to use.

7. By wiring the control power supply separately, possible to break the power supply for the main circuit by contactor

8. New functions added (External observer, overshoot compensation, adoptive filter, etc)

9. Motor brake and contactor control sequence output (DO output)

Similiar MDS-B-SVJ2 Series Servo Drive:

MDS-B-SVJ2-01, MDS-B-SVJ2-03, MDS-B-SVJ2-04, MDS-B-SVJ2-06, MDS-B-SVJ2-07

MDS-B-SVJ2-10, MDS-B-SVJ2-20, MDS-B-SPJ2-02, MDS-B-SPJ2-04, MDS-B-SPJ2-075

MDS-B-SPJ2-15, MDS-B-SPJ2-22, MDS-B-SPJ2-37, MDS-B-SPJ2-55, MDS-B-SPJ2-75

MDS-B-SPJ2-110

RicoCNC supplies many SERVOPACK amplifiers, Panasonic, Yaskawa, Mitsubishi or other brands also Brake motor and servo drive packages.

If any need of CNC machine parts, welcome to contact us.
