4011041518 4-011-04-1518 BHC150 AVENTICS R412007210 Filter Pressure Control Valve

4011041518 4-011-04-1518 BHC150 AVENTICS R412007210 Filter Pressure Control Valve

• 4011041518 Filter pressure control valve
• 4-011-04-1518 filter regulator
• Regulator air with water trap
• R412007210 Aventics Pneumatic Filter
• Regulator R412007210
• Automatic (Normally Open) drain
• Homag control valve
• Homag pressure valve
INQUIRY

4011041518 4-011-04-1518 BHC150 AVENTICS R412007210 Filter Pressure Control Valve

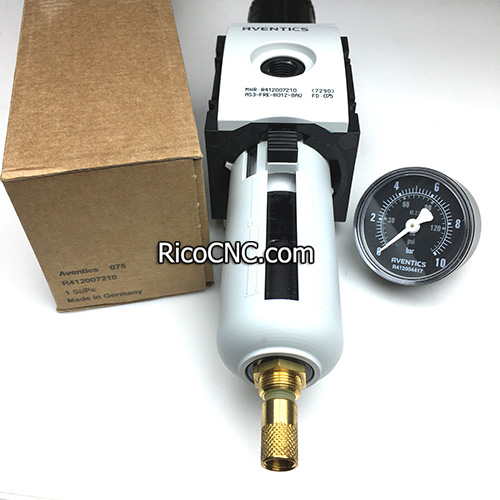

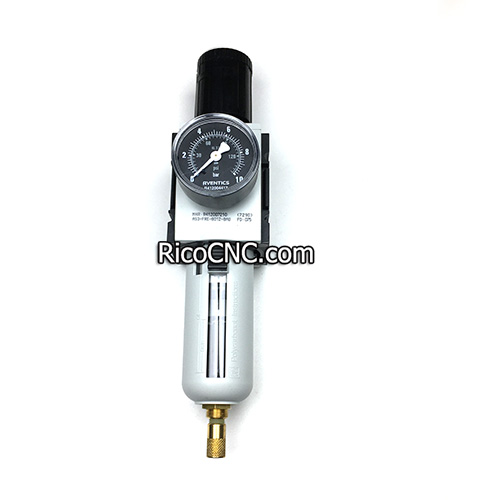

This is a AVENTICS R412007210 pressure control valve, used for Homag machine, Homag part number is 4011041518 or 4-011-04-1518.

R412007185 Aventics Pneumatic Filter.jpg

AVENTICS R412007210 pressure control valve Description:

R412007210 Regulador de presión de filtro, Serie AS3-FRE, Con un rango de temperatura ambiente de -10 - 50 °C y una presión de trabajo de 1,5 - 16 bar adecuado para aplicaciones con aire comprimido y gases neutros.

4011041518 Filter pressure control valve.jpg

4-011-04-1518 BHC150 Filter Pressure Control Valve specification:

Weight	0.683 kg
Pneumatic port	G 1/2
Reservoir for filter	polycarbonate, reservoir, with PA protective guard
Condensate Drain	fully automatic, open without pressure
Flow Qn	5100l/min
Protective guard	with protective guard
Ambient Temperature Max	50DegC
Ambient Temperature Min	-10DegC
Working Pressure Max	16 Bar
Working Pressure Min	1.5 Bar

4011041518 Filter pressure control valve.jpg

RicoCNC can supply various of Homag/Brandt spare parts, also AVENTICS valves, please check our website, if you can not find, please contact us for more information!
