4-035-01-0371 Homag 4035010371 Cylinder Aventics 0822334502 Pneumatic Cylinder for Edgebander Machine

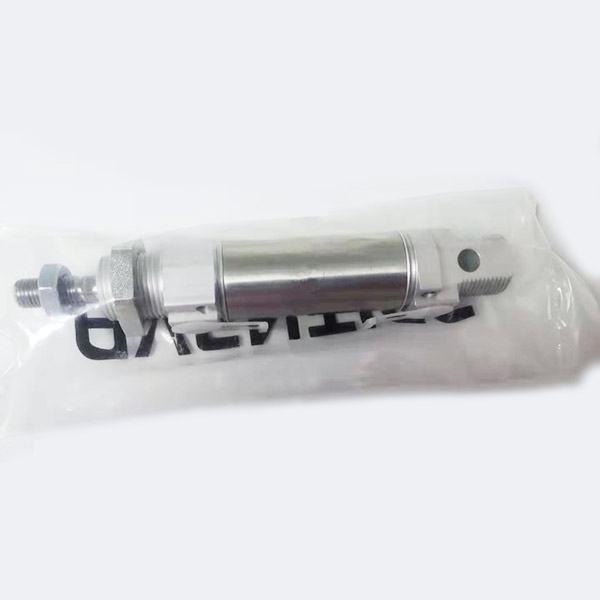

This is Aventics 0822334502 profile cylinder, MNI series (MNI-DA-25-0025-D-31-01-1-00-000-00), 25mm Bore, 25mm Stroke.

This AVENTICS pneumatic profile cylinder can be used on Homag edgebander machine, Homag part number 4035010371 or 4-035-01-0371.

4035010371 AVENTICS  Profile cylinder .jpg


Part Number: 0822334502

Manufacturer: Aventics

Product Type: Pneumatic Cylinder

Cushioning: elastic

Pneumatic port:G 1/8

Stroke: 25 mm

Piston diameter: 25 mm

Piston rod thread: 25, M10x1

Ambient Temperature Max: 80DegC

Ambient Temperature Min: -25DegC

Acting principle: Double Acting

Working Pressure Max: 10 Bar

Working Pressure Min: 0.6 Bar

Bore=25mm stroke=25mm.jpg

Rexroth ISO 6432 profile cylinder.jpg

RicoCNC also can supply other models such as: 0822123001, 0822123002, 0822123003, 0822123004, 0822123005, 0822123006, 0822123007, 0822123008, 0822123009, 0822123010, 0822123011, 0822332504, 0822350003, 0822122004, 0822010637, R480058125, 0822334503, 0822033207, MI25X25SCAG, 0822010546, 0822334502.

Homag 4-035-01-0371.jpg

RicoCNC can offer a wide range of various CNC spare parts and automation parts, and woodworking machine parts.


Welcome to contact us if any inquiries!
