Taiwan Yibao Chumpower Claw Spindle Four Claws DIN50 15 degree DIN69872 Pull Stud Type Clamping

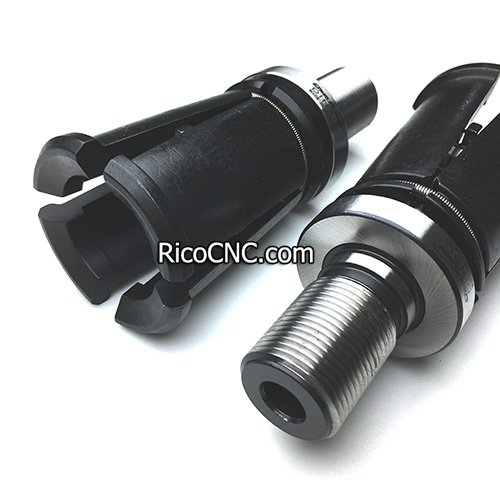

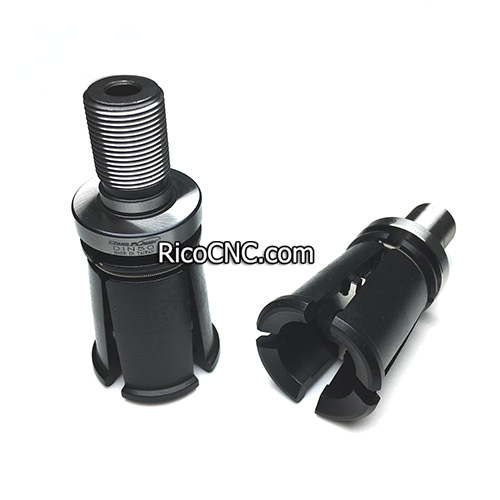

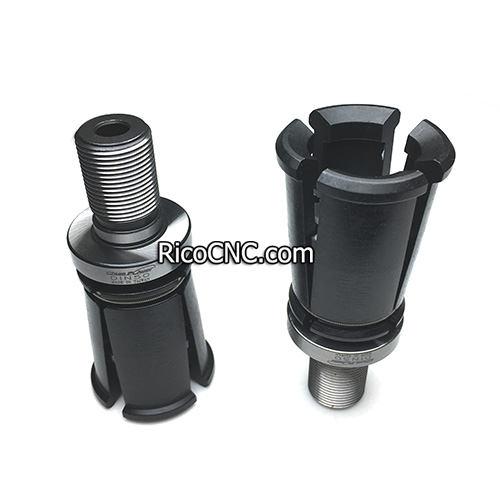

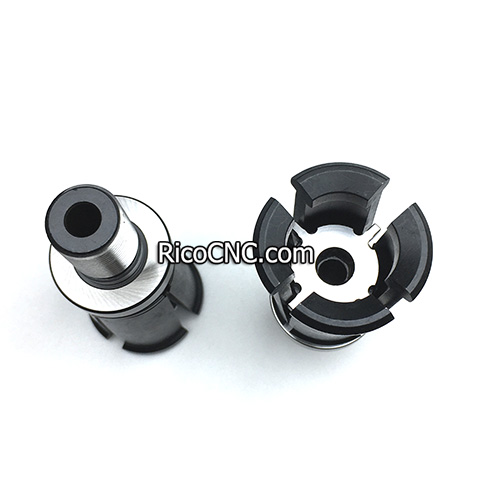

This grippers are made by Taiwan Yibao Chumpower. It is DIN50 15 degree pull claw for CNC machines, model number is BA900BGD50001A.
Chumpower DIN50 CNC gripper Features:
• All the above materials are composed of alloy steel.
• The Gripper in accordance with the tool standard of DIN69871/69872 system.
• Grippers are developed for integrated and comprise four clamping segments, which is suitable for high and low-speed turning spindles.
• The surfaces of Grippers are wear-resisting, anticorrosive and special tensile force treatment.
• The tensile force can bear 1.000 KG force which means 1 million times of lifetime testing circle in our each Grippers. (**e.DIN40)
• Easy to assemble and suitable for every type of spindles.
• Grippers adopt the rules of BERG standards.
Specification of Chumpower DIN50 pull stud gripper
Model | BA900BGD50001A |
A ° | 15 ° |
a | 43 |
b | 40.4 |
c | 43.5 |
d | 22 |
e | 54 |
f | M22*1.5P |
i | 35 |
k | 69 |
l | 16 |
m | 5 |
n | 9.5 |
o | 5 |
p | 48 |
hL | 8 |
Fs max KN | 35 |
MA(Nm) | 160 |
CHUMPOWER DIN30 BA900BGD30001A and DIN40 BA900BGD40001A are also available.

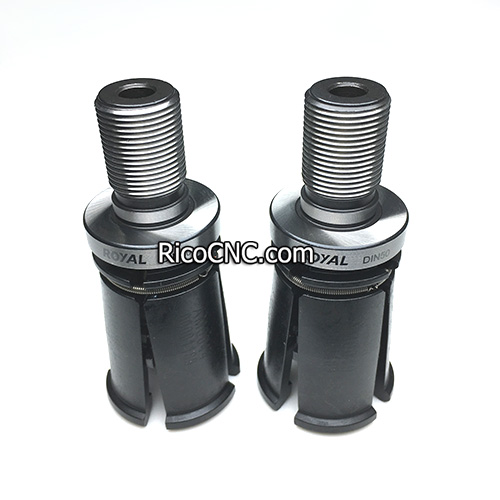

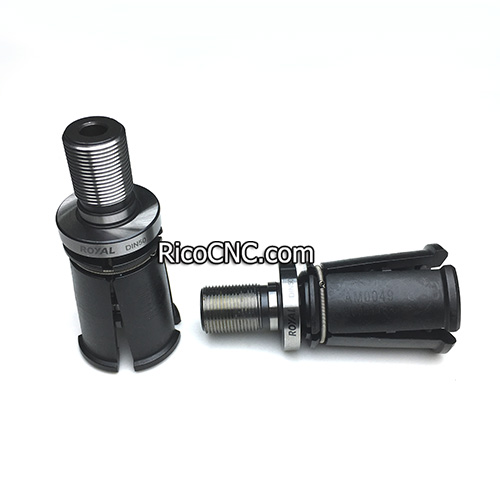

RicoCNC can supply Doosan Daewoo, ROYAL, Chumpower, RIKEN SEIKI, ACROW, BERG gripper.
RicoCNC supplies a range of CNC accessories and tools for machine maintenance. If any needs welcome to contact us.
